704.116.73 SMAKSAK Convection Oven
Instruction Manual
 |  |
 |  |
General overview
| 1 Control panel | 7 Lamp |
| 2 Knob for the heating functions | 8 Fan |
| 3 Display | 9 Cavity embossment |
| 4 Control knob | 10 Shelf support, removable |
| 5 Heating element | 11 Shelf positions |
| 6 Socket for the food sensor | |
 | START | OK |
| To set the clock functions. To check the oven temperature. Use only while a heating function operates. | To start a heating function. | To confirm. |

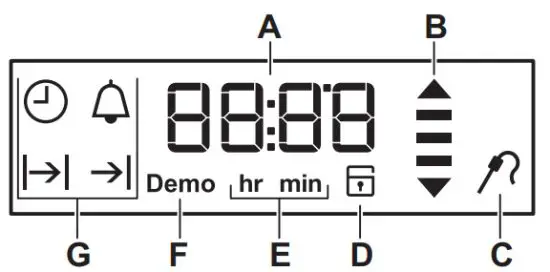

Display
A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Food Sensor (selected models only)
D. Door lock (selected models only)
E. Hours/minutes
F. Demo mode (selected models only)
G. Clock functions
Heating Functions
 | Off position | The oven is off |
 | Forced Air Cooking | Even baking, tenderness, drying |
 | Conventional (Top and Bottom Heat) | Traditional baking |
 | Fast Grilling | Grilling big portions, toasting |
 | Bottom Heat | Baking cakes |
 | Grilling with Fan | Roasting meat, browning |
 | Bread and Pizza Baking | Baking pizza |
 | Defrost | Defrosting |

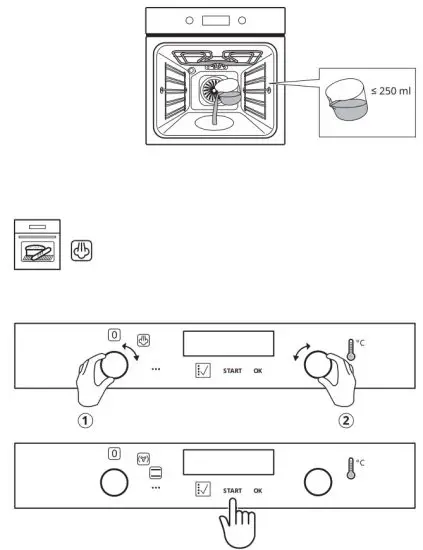

 | Direct Steam | Even baking, tenderness, drying, humidity during cooking |
 | Eco Fan Cooking | Baking |
 | Pyrolysis | Pyrolytic cleaning |
Notes on: Eco Fan Cooking
This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.
When you use this function the lamp automatically turns off after 30 sec.
This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The heating power may be reduced.
Troubleshooting
If you encounter an issue with your appliance, check the “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
Product Information and Product Information Sheet*
| Supplier’s name | IKEA |
| Model identification | SMAKSAK 304.131.22SMAKSAK 704.116.73 |
| Energy Efficiency Index | 81. |
| Energy efficiency class | A+ |
| Energy consumption with a standard load, conventional mode | 0.93 kWh/cycle |
| Number of cavities | 1 |
| Heat source | Electricity |
| Volume | 72 I |
| Type of oven | Built-In Oven | |
| Mass | SMAKSAK 304.131.22 | 34.3 kg |
| SMAKSAK 704.116.73 | 34.4 kg | |
* For European Union according to EU Regulations 65/2014 and 66/2014.
For the Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.
For Ukraine according to 568/32020.
The energy efficiency class is not applicable to Russia.
EN 60350-1 – Household electric cooking appliances – Part 1: Ranges, ovens, steam ovens, and grills – Methods for measuring performance.
To download the full version visit www.ikea.com
© Inter IKEA Systems B.V. 2022
21552
AA-2335887-1
