704.117.29 EFTERSMAK Hot Air Oven
Instruction Manual

Contents hide

1 704.117.29 EFTERSMAK Hot Air Oven

2 Overview

3 Warming functions

4 Troubleshooting

5 Documents / Resources

5.1 References

6 Related Posts

704.117.29 EFTERSMAK Hot Air Oven

www.ikea.com

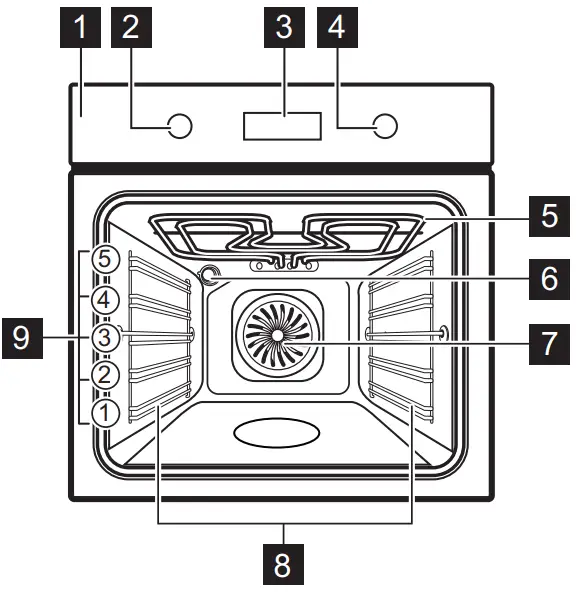

Overview

Control panel
Button for heating functions
Screen
Control knob
Heating element
Lamp
Fan
Grill guides, removable
Grill position

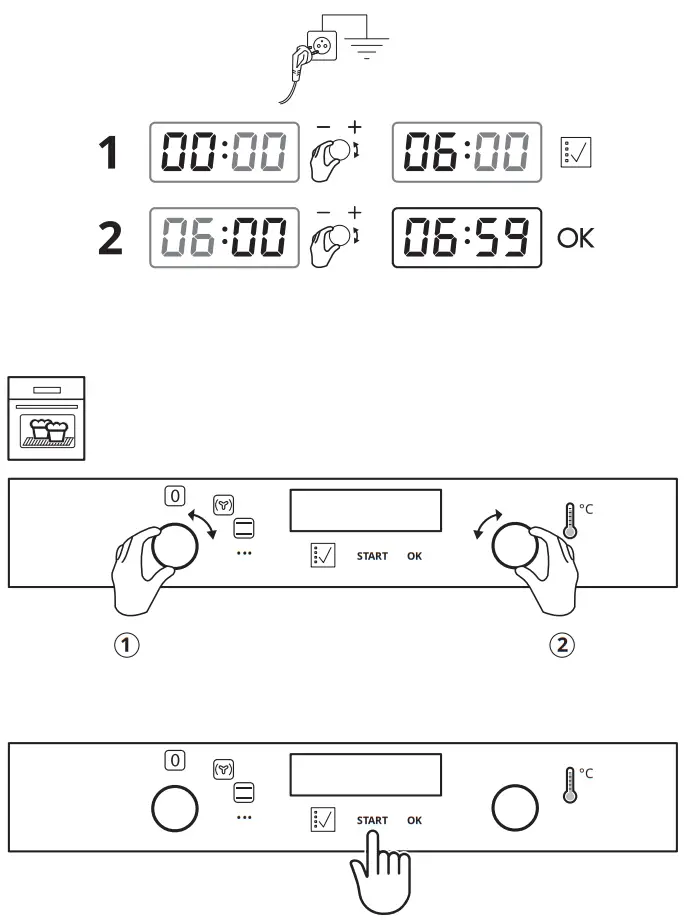

Buttons

	START	OK
To set the functions of the clock. For temperature check on the oven. use, only when function for heating.	To run a function for heating.	For confirmation.

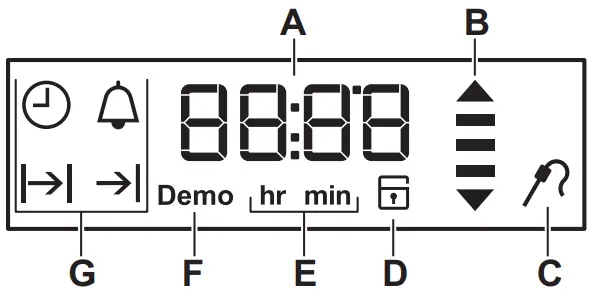

Screen

A. Timer/Temperature
B. Warm-up and residual indicator heat
C. Food Sensor/Thermistor (only for selected models)
D. The door lock (only for selected models)
E. Hours/Minutes
F. Demo mode (only for select models)
G. Clock functions

Warming functions

	Status Off (Off)	The oven is off
	Fan cooking	Even baking, crisp results, drying
	Conventional (top + bottom heater)	Traditional baking
	Quick grilling	Grilling large portions, toasting slices
	Bottom heater	Baking cakes
	Single grill with ventilator	Roasting meat, roasting until golden
	Baking bread and pizza	Pizza baking
	Defrosting	Defrosting
	Top heater	Roasting ready meals
	Eco cooking with ventilator	Baking
	Lighting	Oven lamp

Notes on: Fan assisted eco cooking
This function was used for compliance with class requirements of energy efficiency and eco-design according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.
The oven door must be closed during cooking so that the function not interrupted and to ensure that the oven operates at the highest possible setting energy efficiency.
When you use this feature, the light automatically turns off after 30 seconds.
The feature is designed to save on energy during cooking. When you use this function, the temperature inside may differ from the set. The degree of heating can be reduced.

Troubleshooting

If you encounter a problem with the unit, see Chapter “Troubleshooting” the full version of the manual for the user, available at: www.ikea.com.

Product Information and Data Sheet for the product*

Provider name	IKEA
Model identification	DESSERT 704.117.29
Energy efficiency index	81.2
Energy efficiency class	A+
Energy consumption at standard load no, conventional mode	0.93 kWh/cycle
Energy consumption at standard load no, forced fan mode	0.69 kWh/cycle
Number of cavities	1
Heat source	Electricity
Sound volume	72 l
Type of oven	Built-in oven
Mass	31.4 kg

*For the European Union according to Regulations (EU) 65/2014 and 66/2014.
For the Republic of Belarus according to STB 2478 – 2017, Annex G; STB 2477 – 2017, Annexes A and B.
For Ukraine according to 568/32020.
The energy efficiency class is not applicable to Russia.
EN 60350-1 – Household electrical cooking appliances – Part 1: Ranges, ovens, steam ovens and grills – Ways to measure performance.

To download the full version, visit: www.ikea.com
