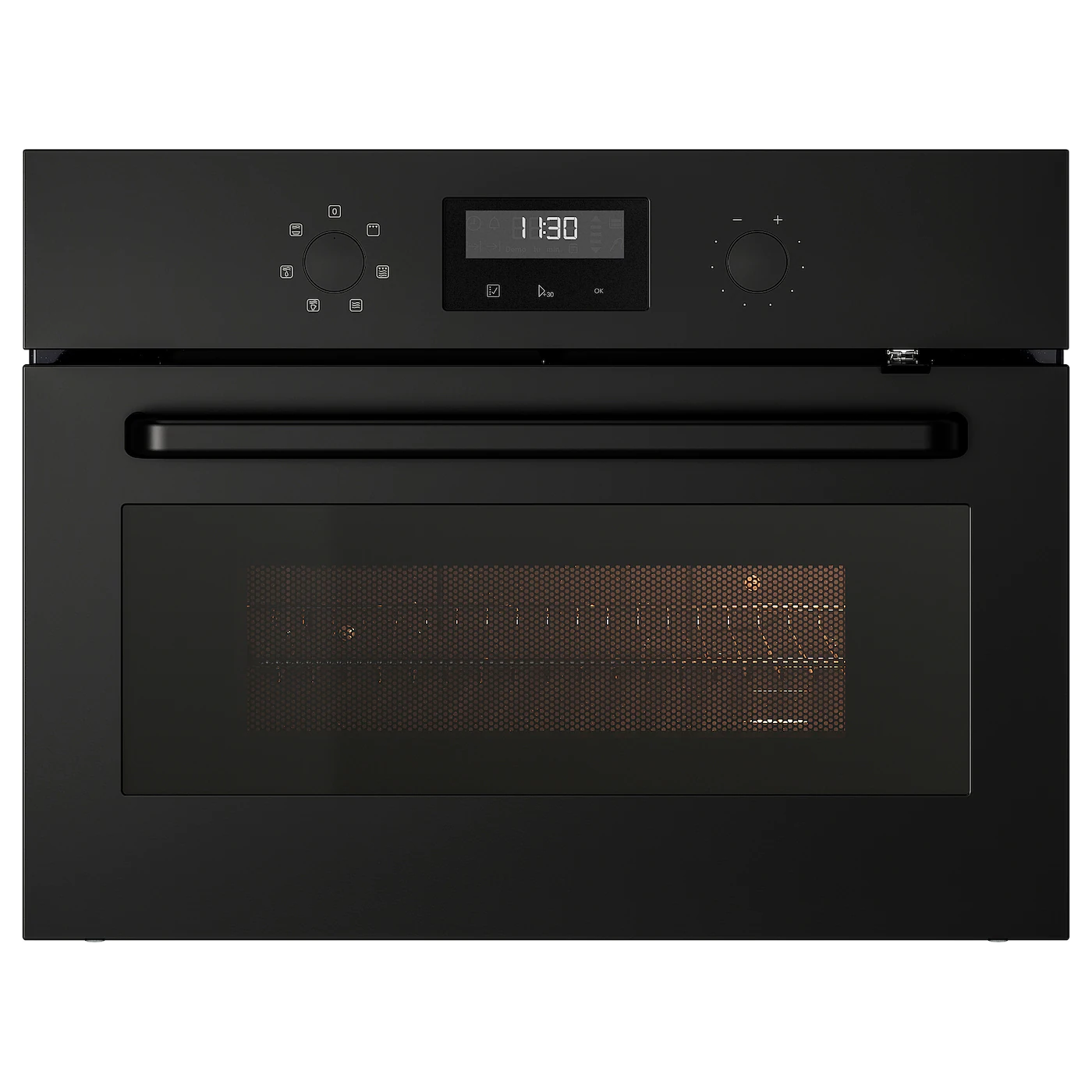

IKEA 904.117.71 EFTERSMAK Microwave Oven
Customer Support

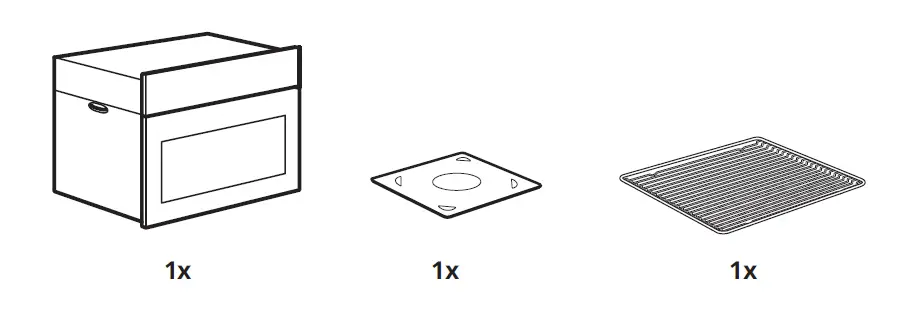

Package Contents

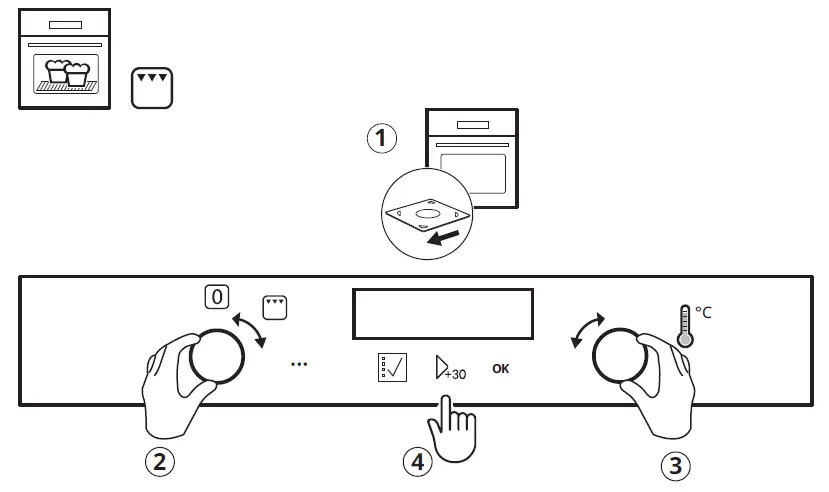

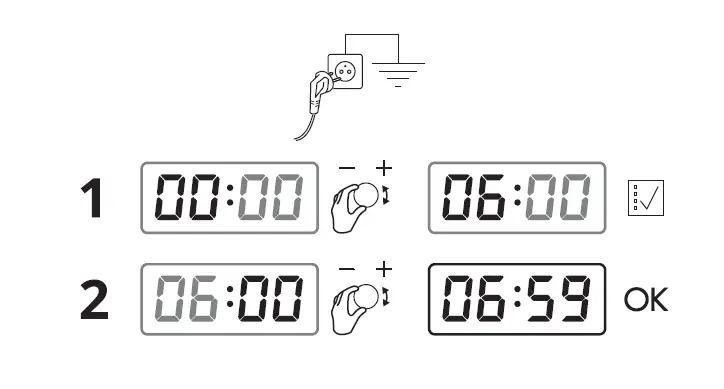

Dial Setting

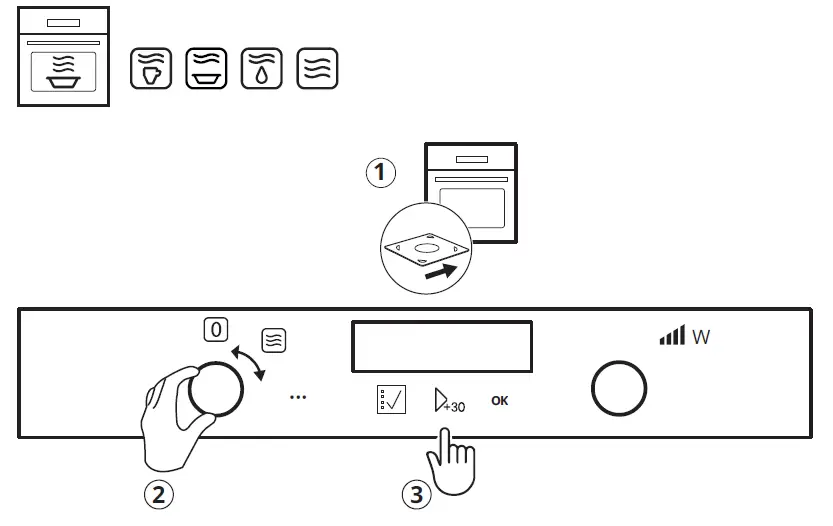

Setting of Heat for Cooking Food

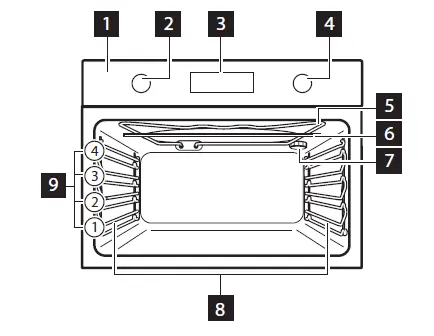

General overview
- Control panel
- Knob for the heating functions
- Display
- Control knob
- Heating element
- Microwave generator
- Lamp

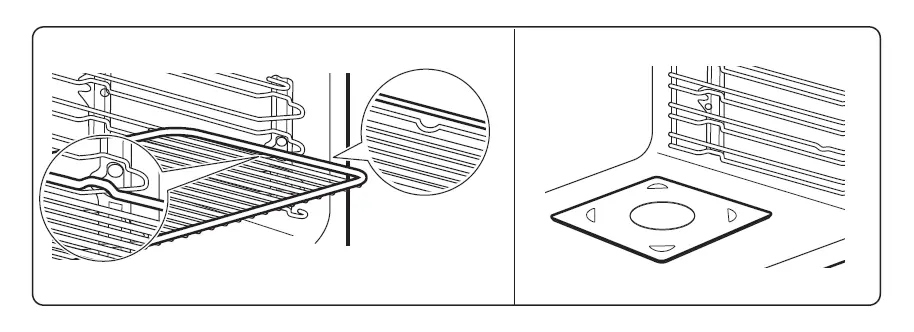

- Shelf support, removable
- Shelf positions
 |  | OK |
| To set the clock functions. To check the oven temperature. Use only while a heating function operates. | To start a heating function. Also to extend Microwave function duration for 30 sec‐ onds. | To confirm. |

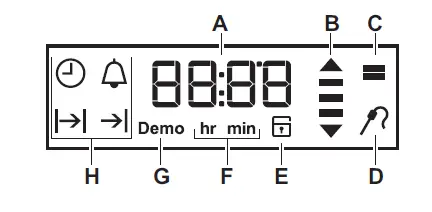

Display
- A. Timer / Temperature / Microwave power
- B. Heat-up and residual heat indicator
- C. Microwave mode
- D. Food Sensor (selected models only)
- E. Door lock (selected models only)
- F. Hours / minutes
- G. Demo mode (selected models only)
- H. Clock functions
Heating Functions
- The oven is off
- Grilling, toasting
- Cooking, browning.
- Heating up, cooking, power range: 100 – 1000 W
- Heating up drinks and soups, power range: 800 – 1000 W
- Defrosting meat, fish, cakes, power range: 100 – 200 W
- Heating up pre-prepared meals and delicate food, power range: 300 – 700 W
Microwave suitable cookware and materials
For the microwave use only suitable cookware and materials. Use below table as a reference.
Check the cookware / material specification before use.
| Cookware / Material | Microwave function | Microwave Combi function e.g. | |
| Defrosting | Heating, Cooking | ||
| Ovenproof glass and porcelain with no metal components, e.g. heat-proof glass | |||
| Non-ovenproof glass and porcelain without any silver, gold, platinum or other metal decorations | X | X | |
| Glass and glass ceramic made of ovenproof / frost-proof material | |||
| Ceramic and earthenware without any quartz or metal components and gla‐ zes which contain metal | X | ||
| Ceramic, porcelain and earthenware with unglazed bottom or with small holes, e.g. on handles | X | X | X |
| Heat-resistant plastic up to 200 °C | X | ||
| Cardboard, paper | X | X | |
| Clingfilm | X | X | |
| Roasting film with microwave safe clo‐ sure | X | ||
| Roasting dishes made of metal, e.g. enamel, cast iron | X | X | |
| Baking tins, black lacquer or silicon- coated | X | X | |
| Cookware / Material | Microwave function | Microwave Combi function e.g. | |
| Defrosting | Heating, Cooking | ||
| Wire shelf | X | X | |
| Microwave glass bottom plate | X | ||
| Cookware for microwave use, e.g. crisp pan | X | X | |
Troubleshooting
- If you encounter an issue with your appliance, check “Troubleshooting” chapter
- in the full version of the User Manual available on: www.ikea.com.
Technical data
| Dimensions (internal) | Width Height Depth | 480 mm 217 mm 442 mm |
| Usable volumes | 46 l | |
| Area of baking tray | 1424 cm² | |
| Grill | 1900 W | |
| Total rating | 2000 W | |
| Voltage | 220 – 240 V | |
| Frequency | 50 Hz | |
| Number of functions | 6 | |
