Ikea 104.306.98 Värmd Microwave Oven User Manual

IKEA 104.306.98 VÄRMD Microwave Oven

Assembly Instruction

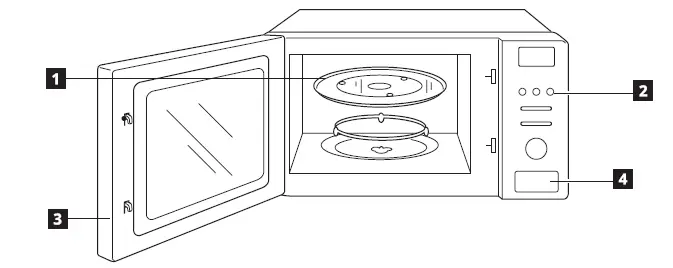

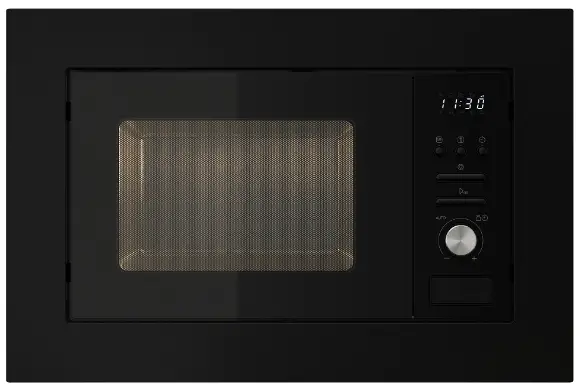

Product description

1. Glass Tray
2. Control Panel
3. Door
4. Door Open Button

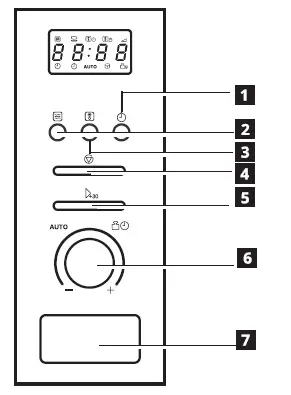

Control panel

1. Kitchen timer/Clock
2. Microwave
3. Weight/Time Defrost
4. Stop/Clear
5. Start/+30Sec/Confirm
6. +/- knob(use this button to set time or weight)
7. Door button(use this button to open the door)

Functions

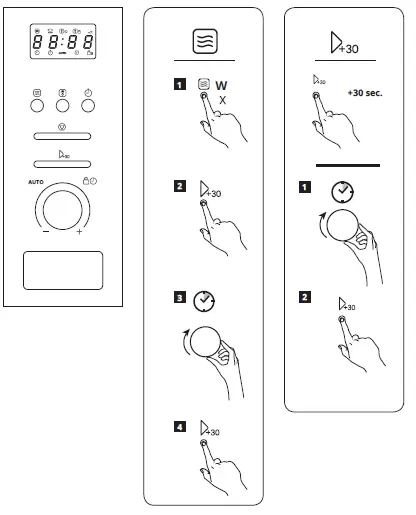

Microwave power level
Variable power levels add flexibility to microwave cooking. Power levels can be adjusted by press the button several times.

Express Qstart
Immediately starts microwave at power level 10 in the waiting state. Add 30 sec. can be used to increase time while microwave is running without stopping cooking.

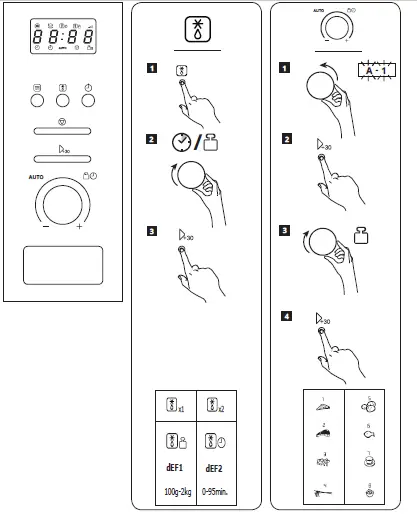

Weight/Time defrost

• Weight Defrosting:
  Press Weight/Time defrost once, enter weight (100g-2kg), then press start.
• Time Defrosting:
  Press Weight/Time defrost twice, enter time (0-95min), then press start.

Kitchen timer/Clock

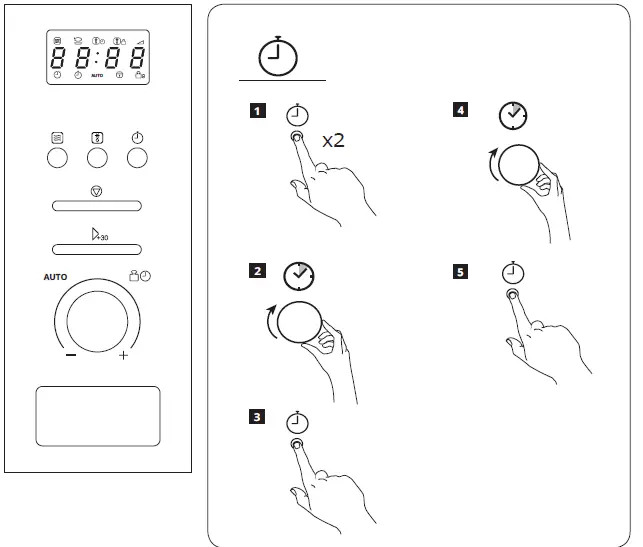

• Set Clock
  Press kitchen timer/clock twice, enter the clock mode
  This is a standard 24-hour clock (00:00 – 23:59).

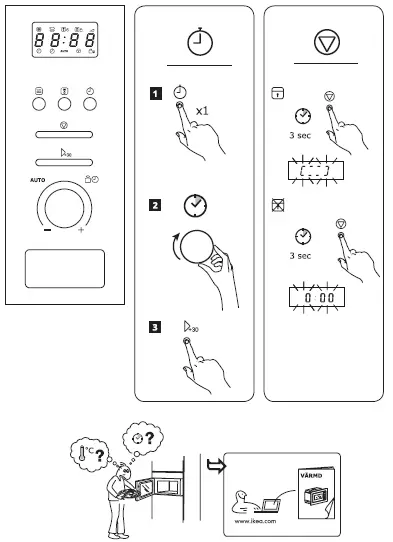

• Timer
  Press kitchen timer/clock once, enter the timer mode. Operates as a minute timer and the buzzer will ring 5 times when the time is reached.

Stop/Clear

• lock
  Press stop/clear for 3 seconds, enter the children-lock state. And the screen will display or current time.
• unlock
  Press stop/clear for 3 seconds, exit the children-lock state.

Specification

To download the full version visit www.ikea.com
