Asus Rog Ryujin Ii 360 Cpu Liquid Cooler User Guide

ROG RYUJIN II 360 CPU Liquid Cooler
User Guide

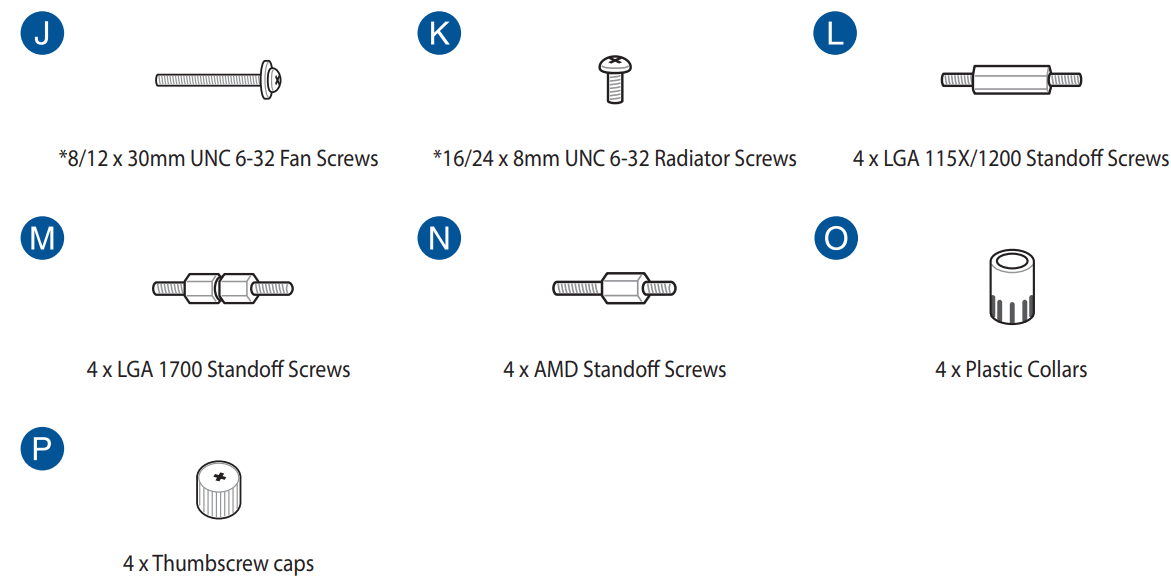

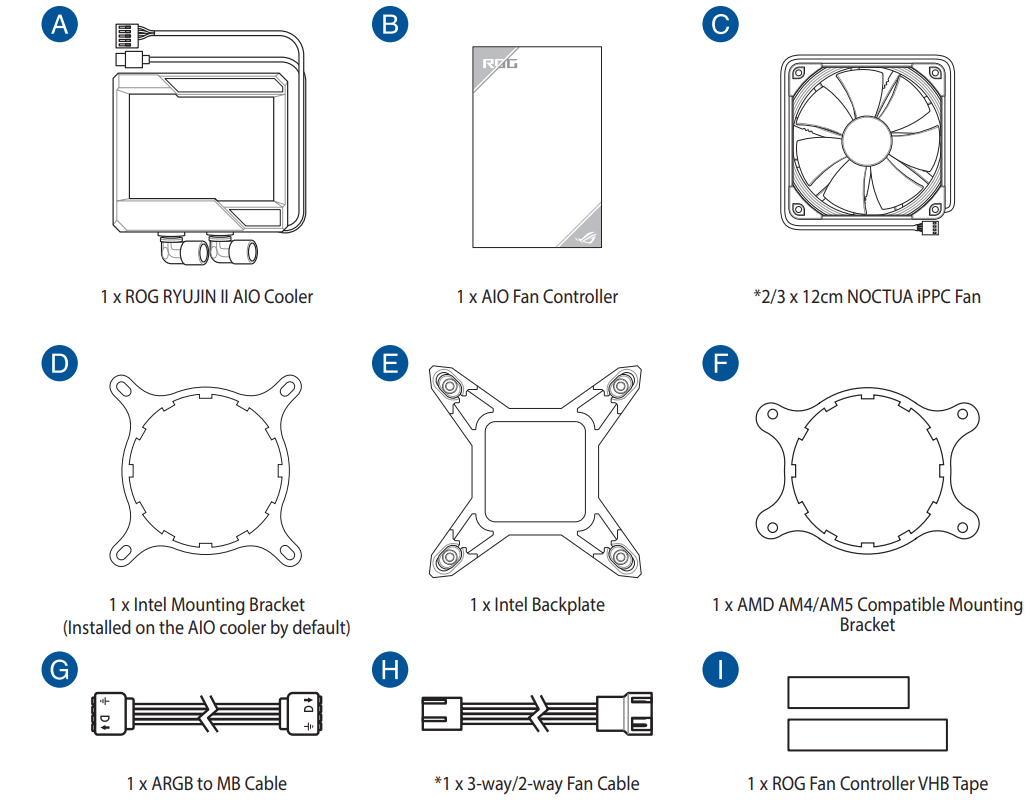

Package contents

NOTE: The Intel Mounting bracket comes pre-installed on the AIO Cooler.

Installing the AIO cooler

NOTE: The illustrations in this section are for reference only, but the installation steps remain the same.

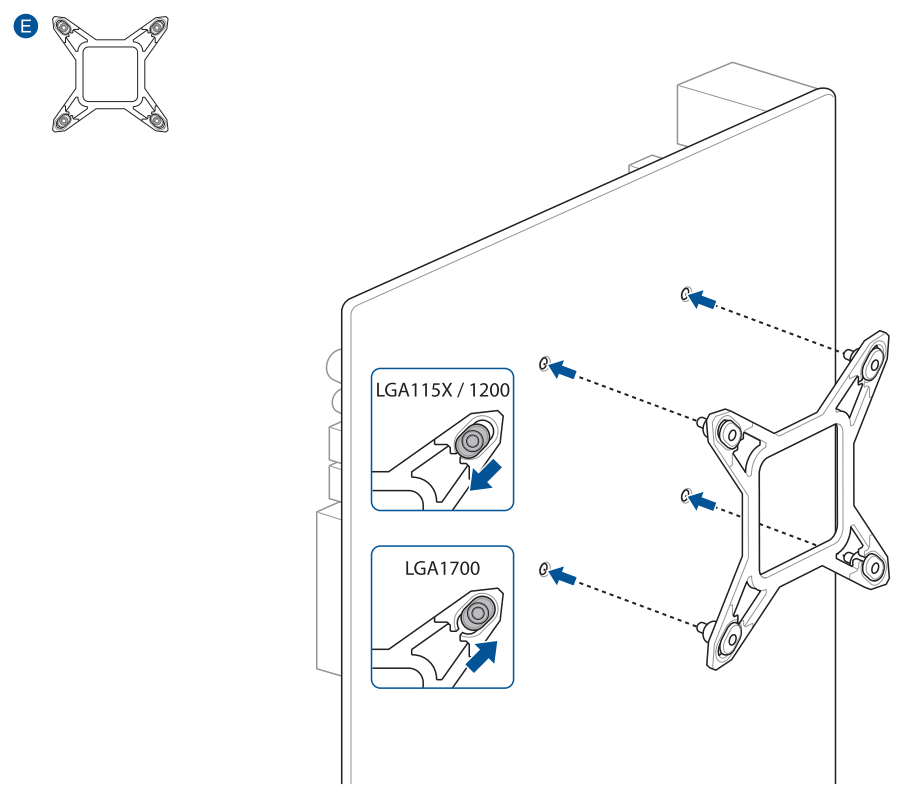

Install the Intel backplate

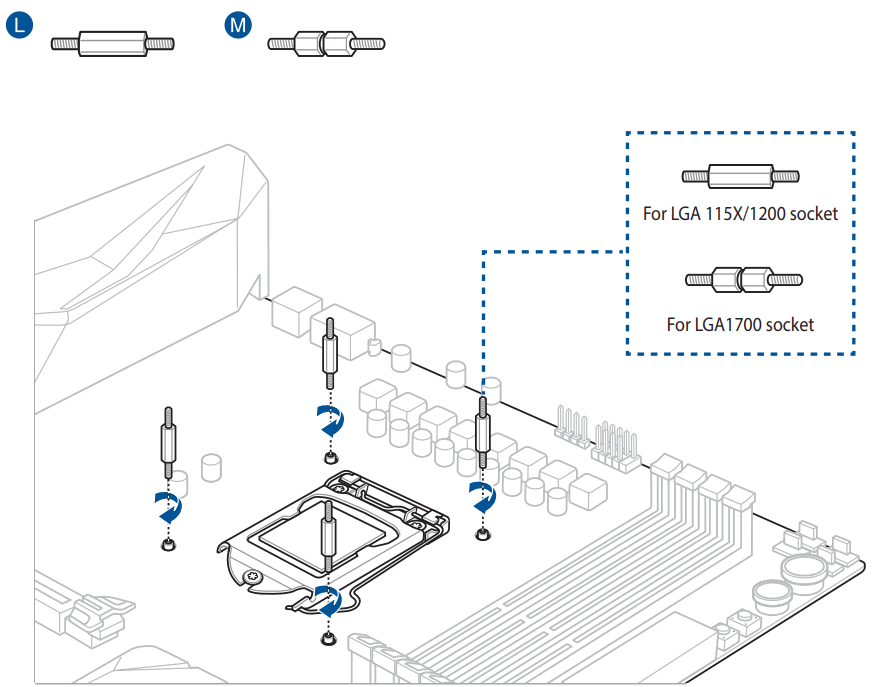

Install the Intel standoff screws

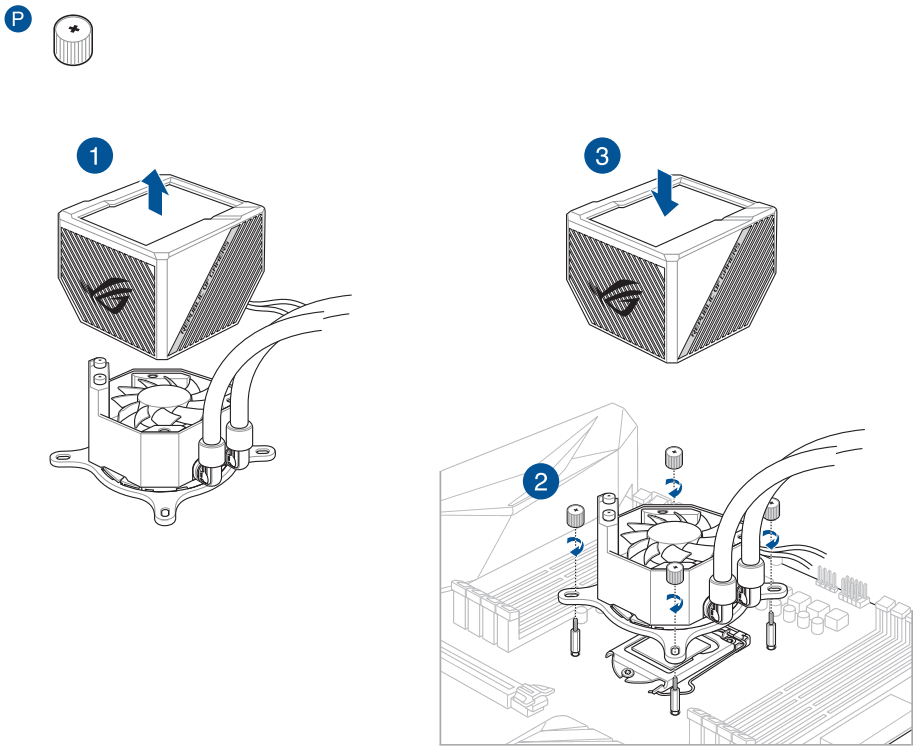

Install the pump

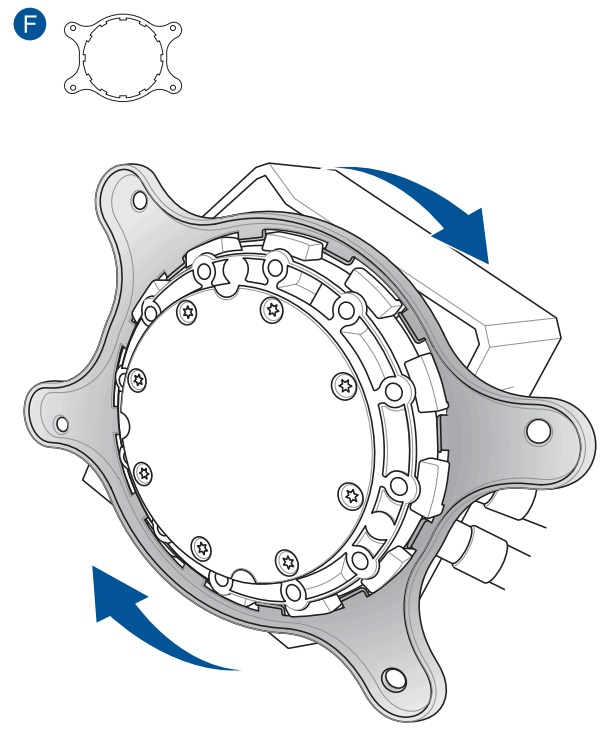

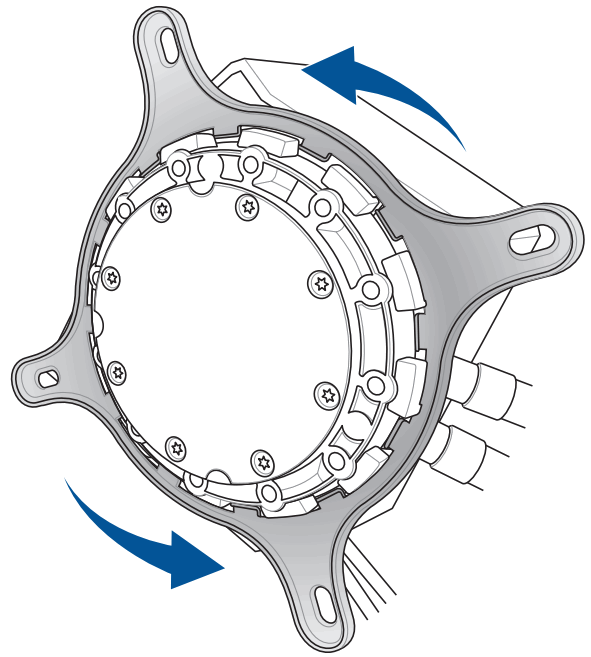

Remove the Intel Mounting Bracket

Remove the Intel Mounting Bracket

NOTE: Skip step C for TR4 sockets.

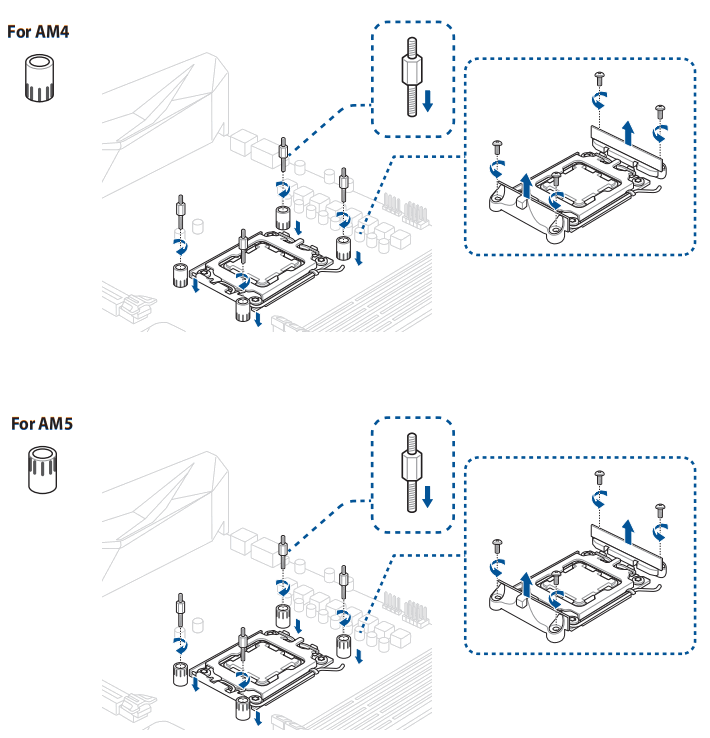

Remove the pre-installed heatsink mount then install the plastic collars and standoff screws

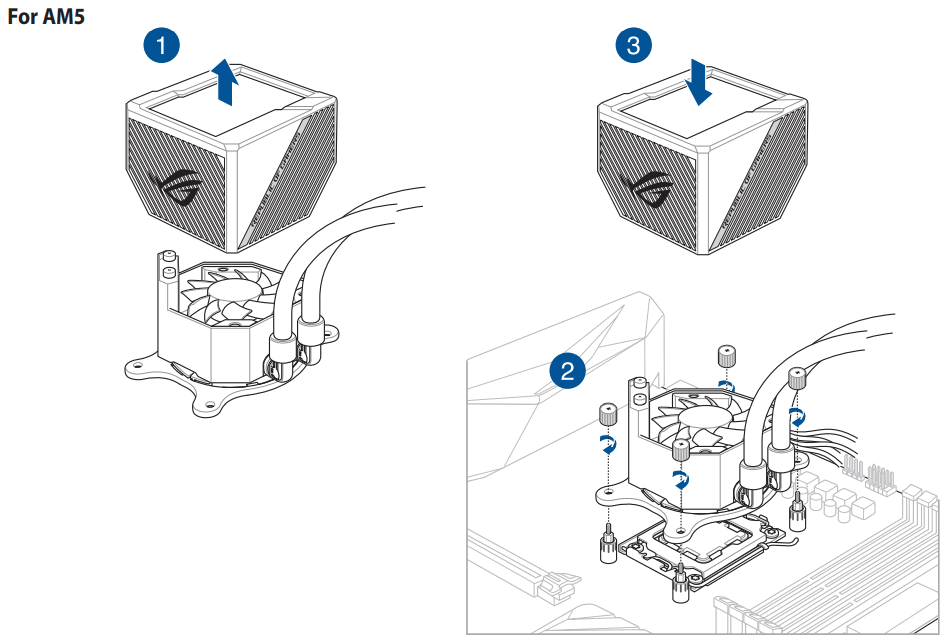

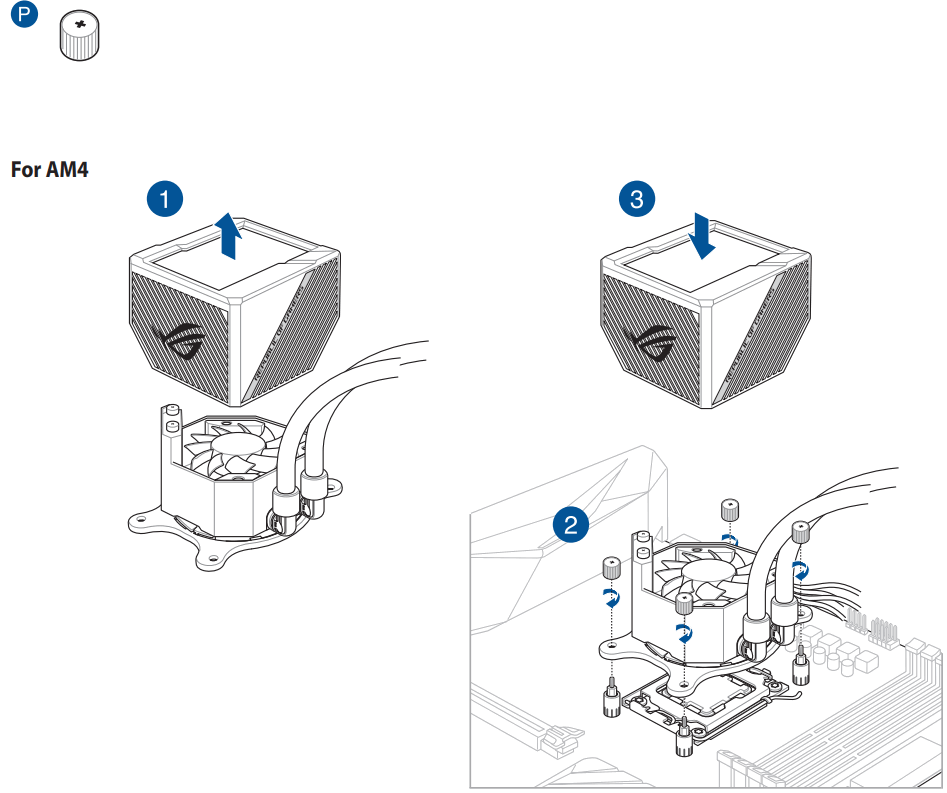

Install the pump

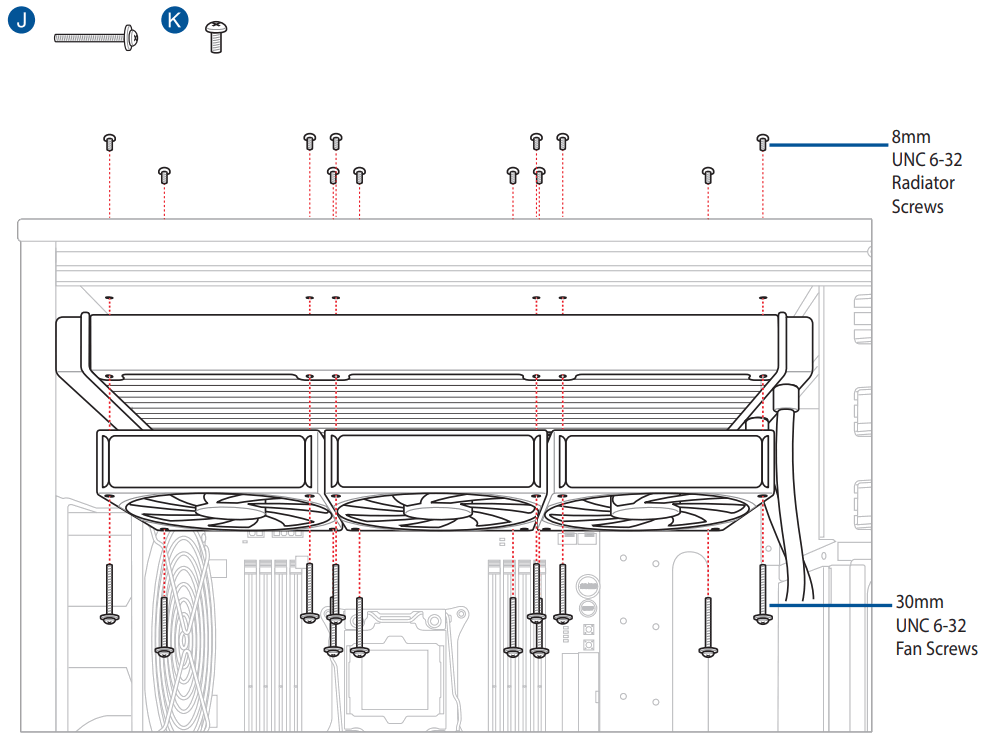

Installing the Radiator

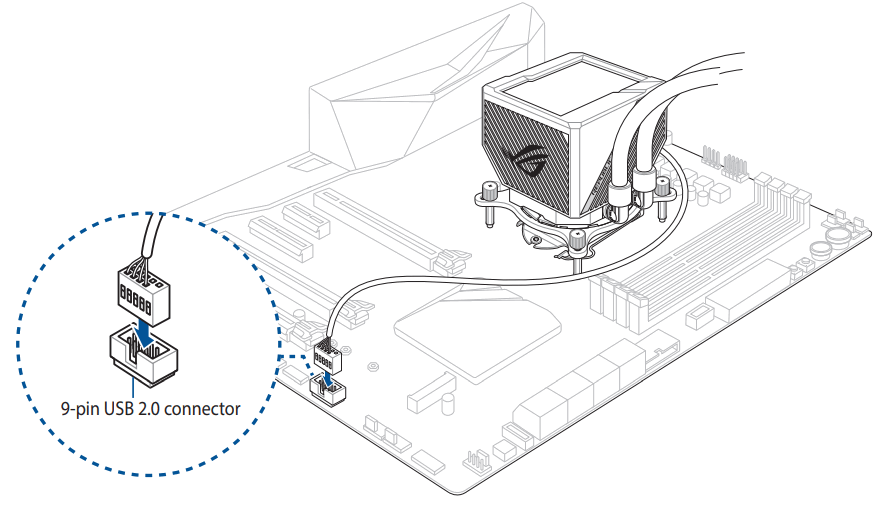

Connect the 9-pin USB 2.0 cable

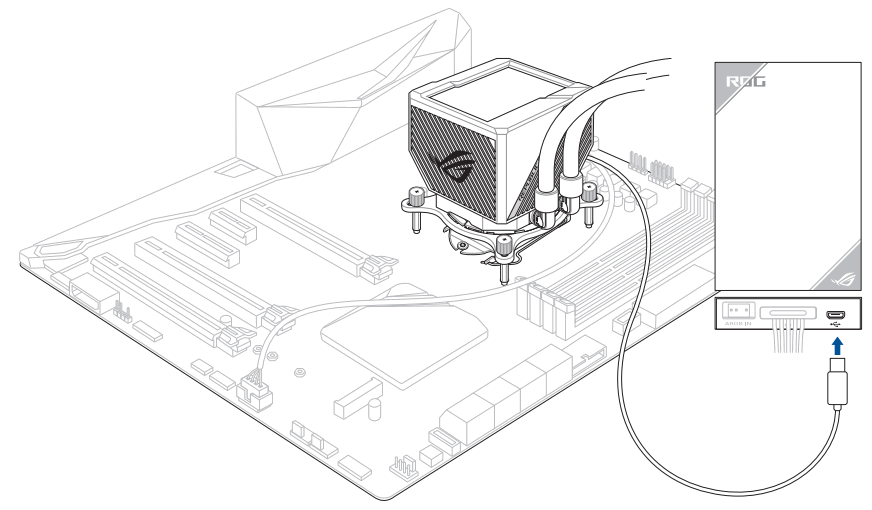

Connect the micro USB cable to the AIO Fan Controller

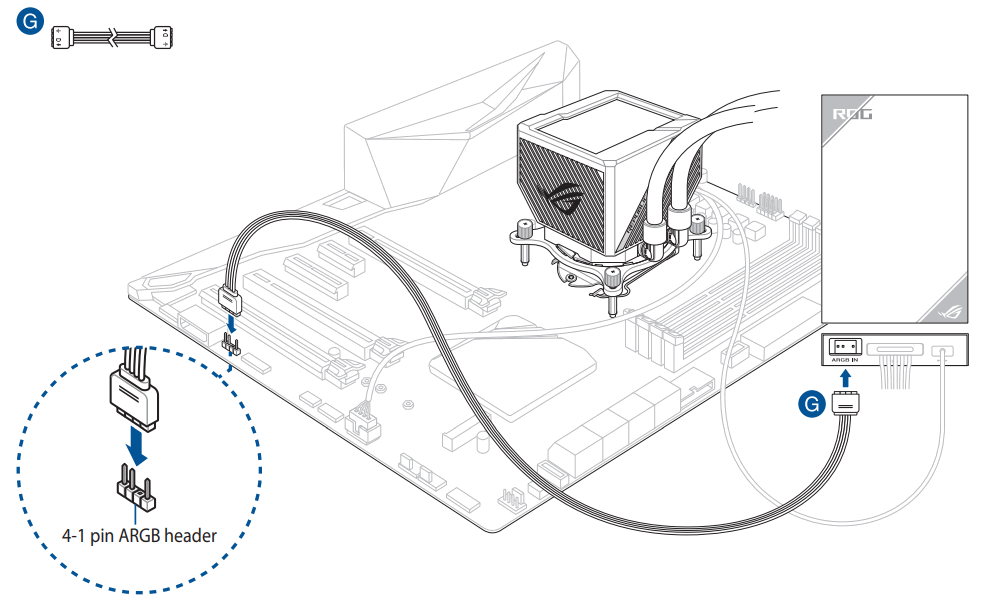

Connect the ARGB to MB Cable for ARGB Fan lighting (Optional)

NOTE: This package does not include ARGB fans. ARGB fans need to be purchased separately.

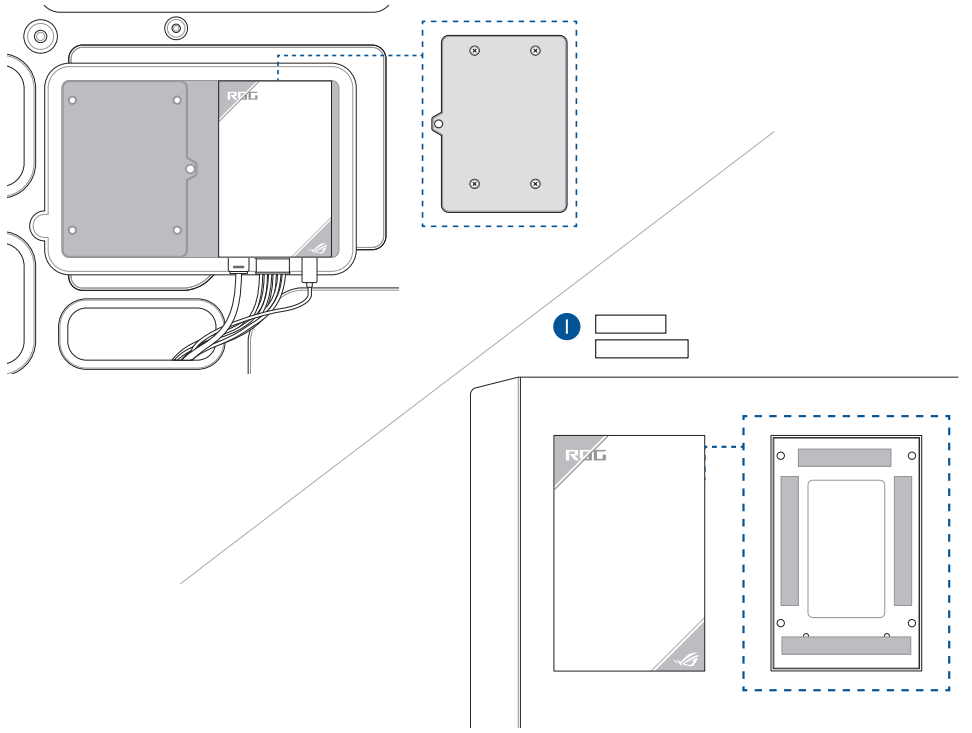

Install the AIO Fan Controller

Download control software

Please visit the product support page at https://rog.asus.com/ to download and install the control software.

Support and FAQ

What should I do if a CPU Fan Error error message pops up?
Enter BIOS, then go to Monitor and set CPU FAN Speed to [Ignore].
