ROG STRIX
LC II ARGB SERIES
LIQUID CPU COOLER
Quick Start Guide
Package contents

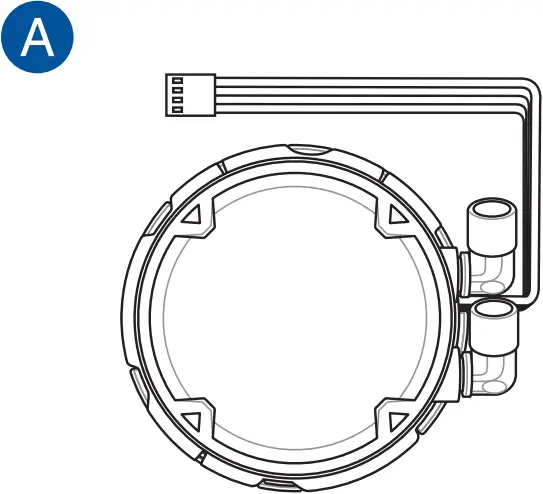

1 x ROG STRIX LC II ARGB AIO cooler

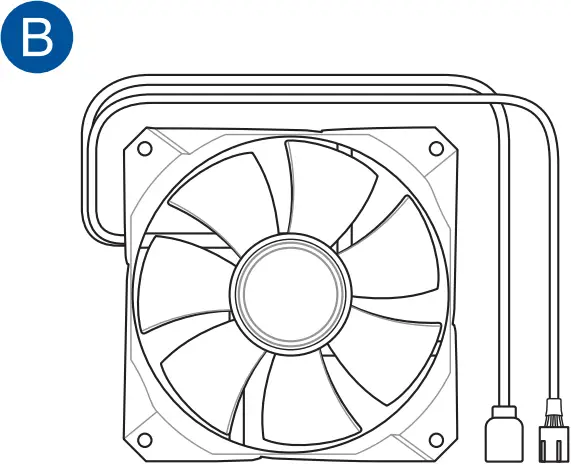

*1/2/3 x 12cm ARGB fan(s) or 2 x 14cm ARGB fans

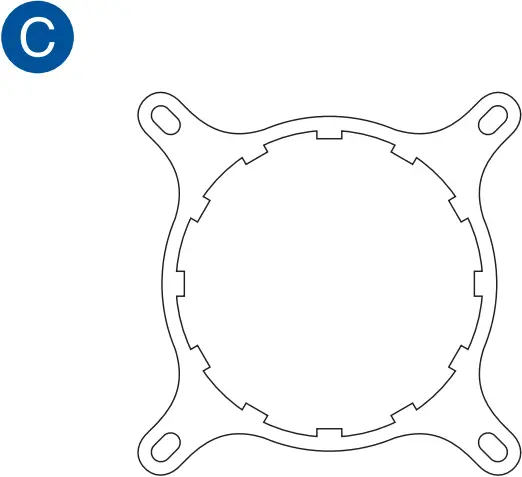

1 x Intel Mounting Bracket

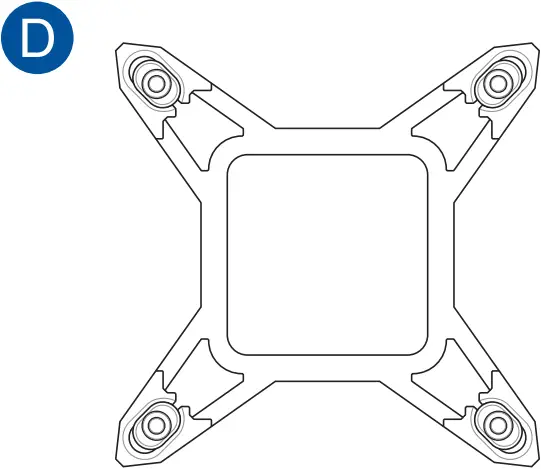

1 x Intel Backplate

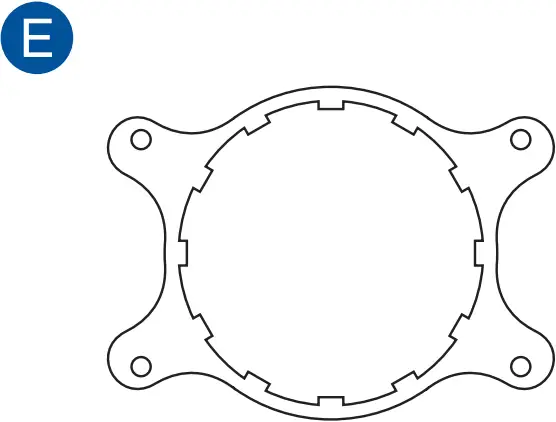

1 x AMD AM4/AM5 Compatible Mounting Bracket

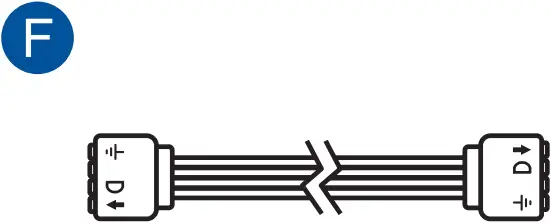

*1 x 2-way/4-way ARGB Cable

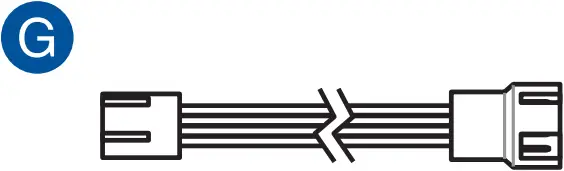

1 x 2-way/3-way Fan Cable
1 x Micro USB cable

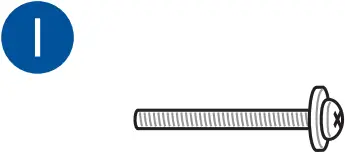

*4/8/12 x 30mm UNC 6-32 Fan Screws
*8/16/24 UNC 6-32x8mm Radiator Screws

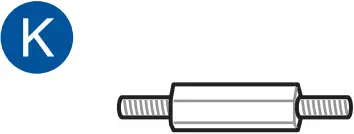

4 x LGA 115X/1200 Standoff Screws

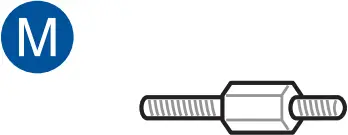

4 x LGA 1700 Standoff Screws
4 x AMD Standoff Screws
4 x Plastic Collars
4 x Thumbscrew caps
NOTE:
- The Intel Mounting bracket comes pre-installed on the AIO Cooler.
- * The amount of these packaged items may vary between models.
Installing the AIO cooler
NOTE: The illustrations in this section are for reference only, but the installation steps remain the same.
INTEL

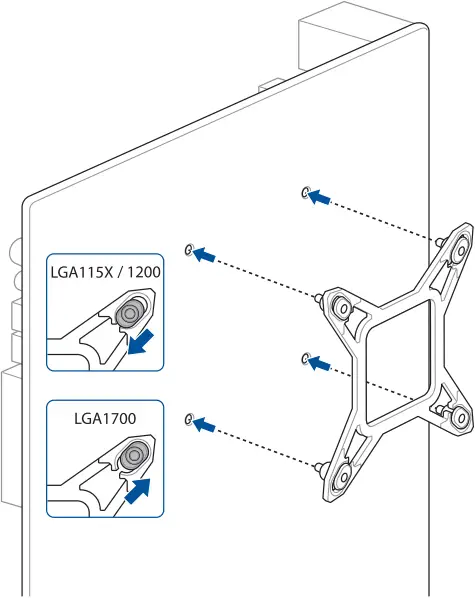

A. Install the Intel backplate

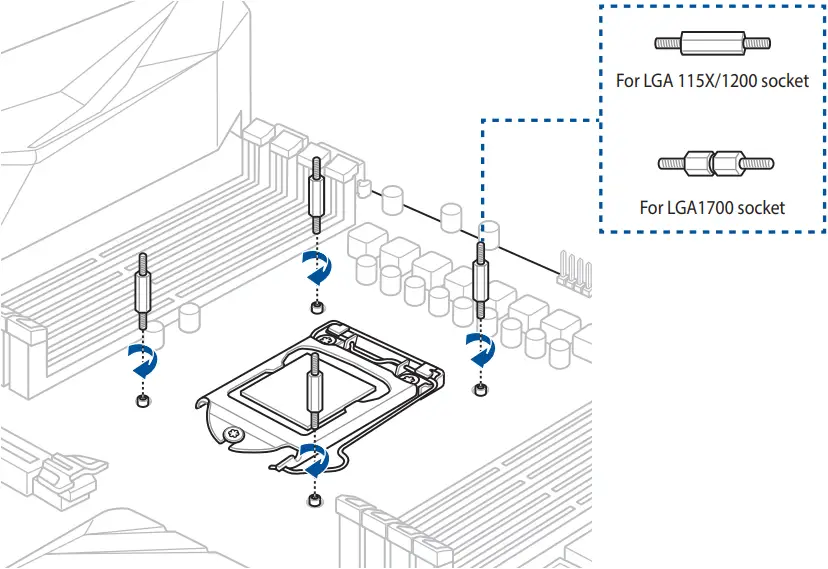

B. Install the Intel standoff screws

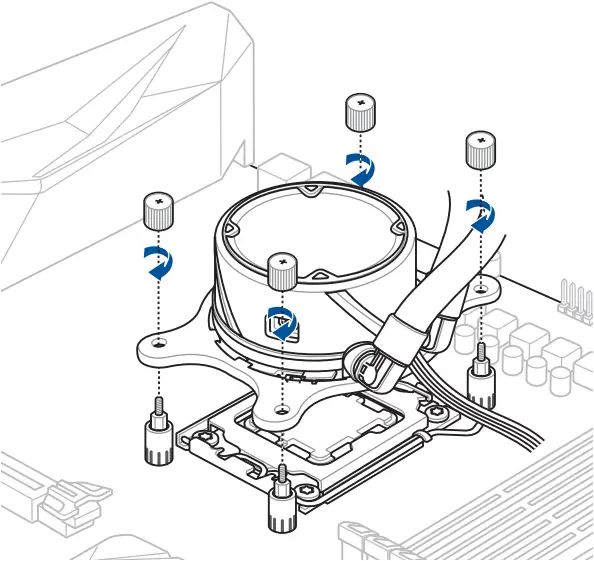

C. Install the AIO pump
AMD

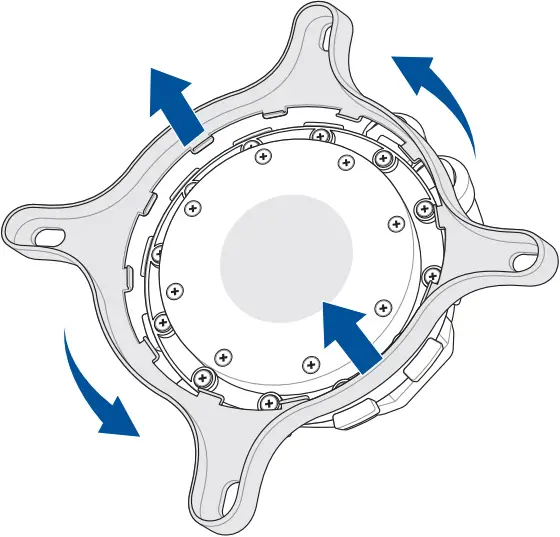

A. Remove the Intel Mounting Bracket

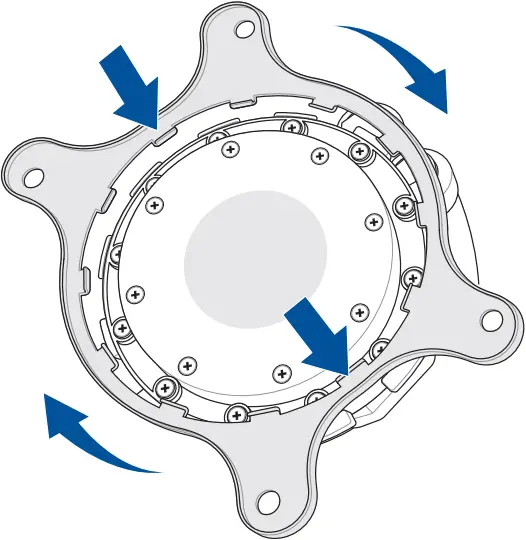

B. Install the AMD Mounting Bracket
NOTE: Skip step C for TR4 sockets.

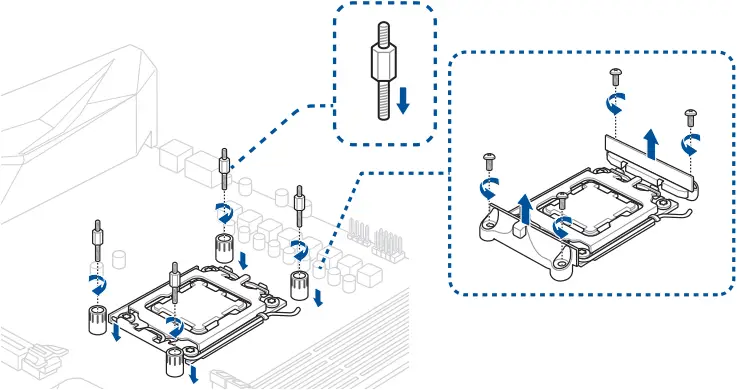

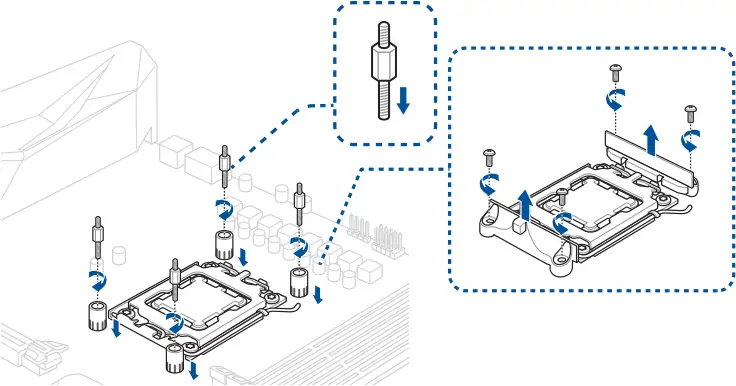

C. Remove the pre-installed heatsink mount then install the plastic collars and standoff screws
For AM4
For AM5
SETUP
D. Install the AIO pump
For AM4
For AM5

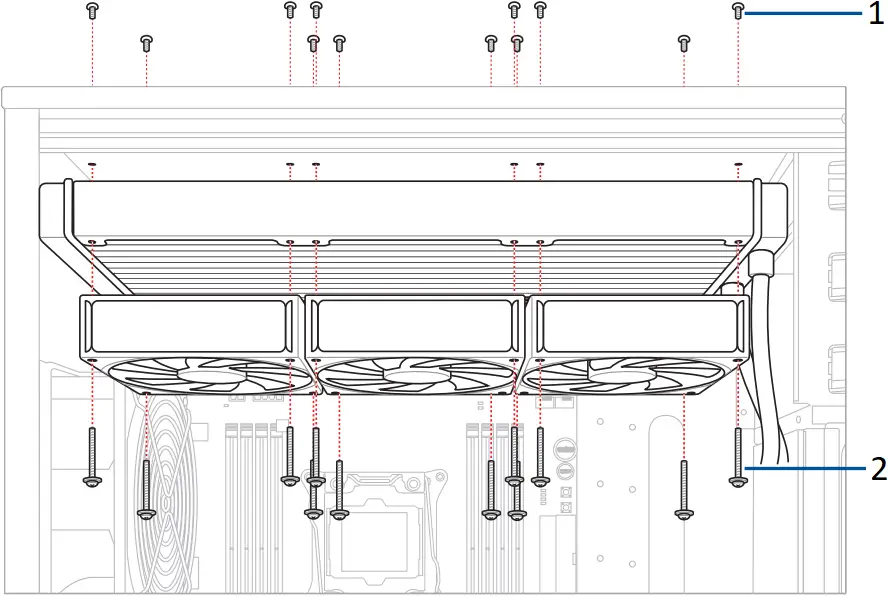

Installing the AIO radiator and fan
- 8mm UNC 6-32 Radiator Screws
- 30mm UNC 6-32 Fan Screws

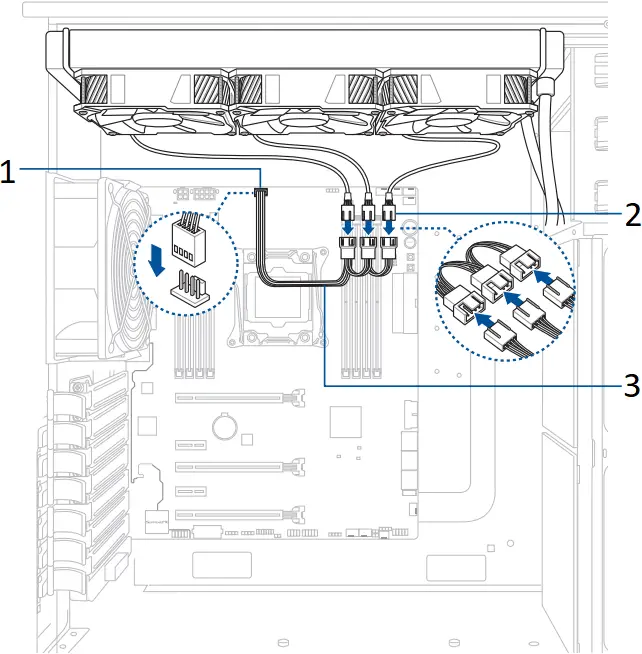

Connect the fan cables
- CPU Fan connector
- Fan connector
- 2-way/3-way Fan cable

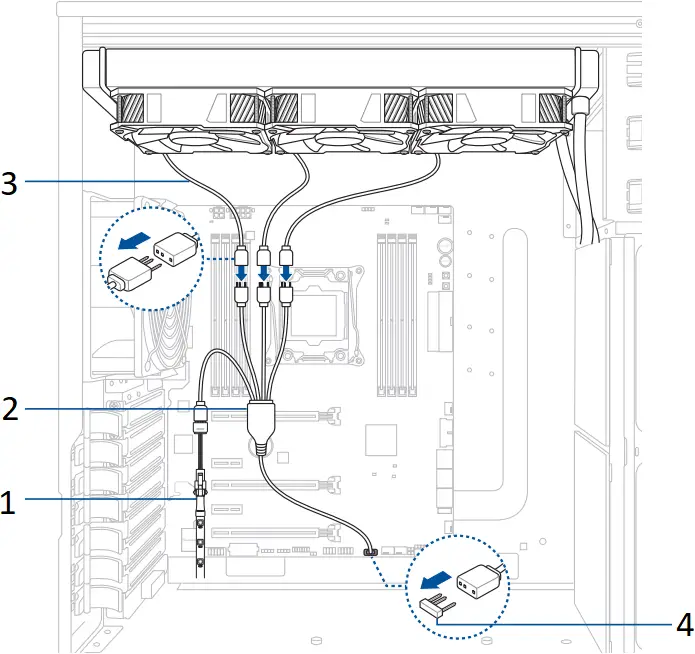

Connect the ARGB cables
- Addressable RGB peripheral
(optional) - 4-way/2-way ARGB cable
- ARGB fan ARGB cable
- Addressable RGB connector

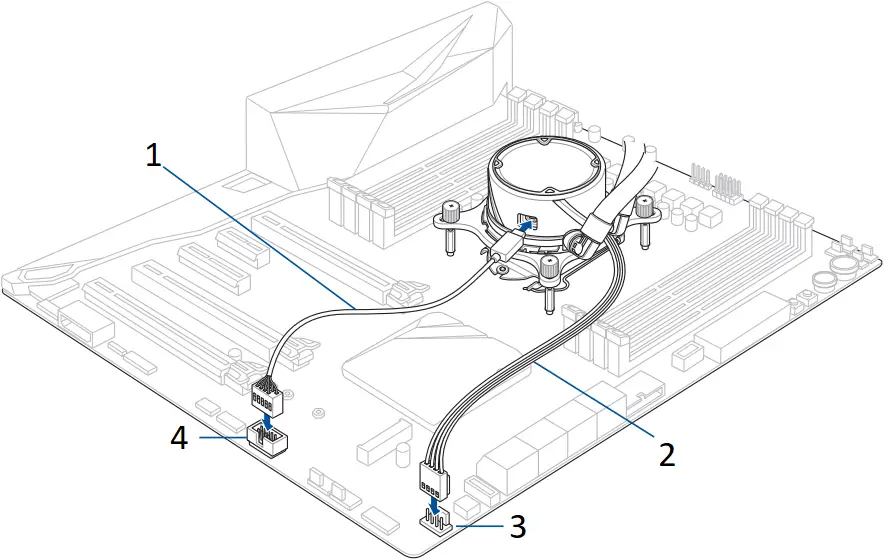

Connect the AIO pump and Micro USB cables
- Micro USB cable
- AIO pump cable
- 4-pin AIO pump header
- 9-pin USB 2.0 connector
ROG STRIX LC II ARGB Series
Download control software
Please visit the product support page at https://rog.asus.com/ to download and install the control software.
Quick Start Guide
