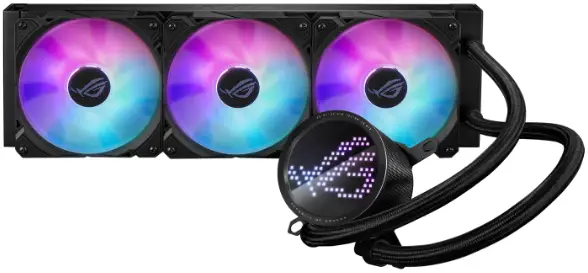

Asus Q20469 Rog Ryuo Iii Argb Series Cpu Liquid Cooler User Guide

ASUS Q20469 Rog Ryuo III ARGB Series CPU Liquid Cooler User Guide

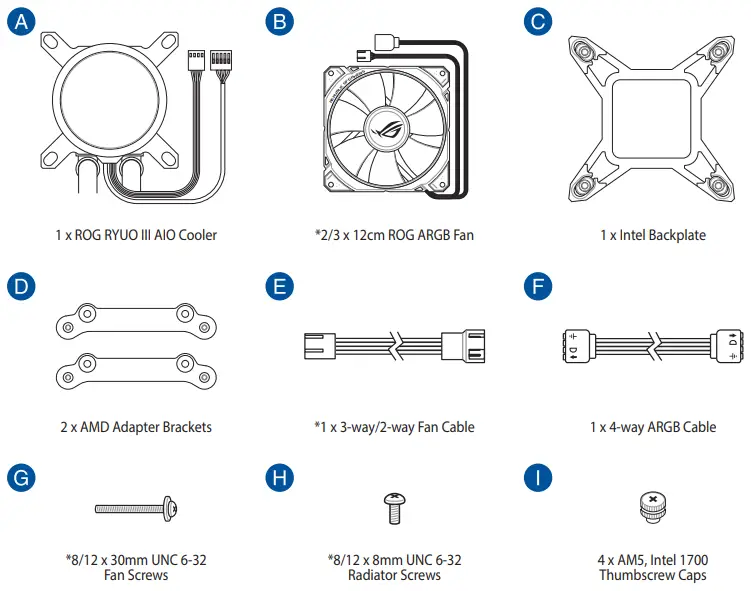

Package contents

NOTE: The Intel Mounting bracket comes pre-installed on the AIO Cooler.

AIO cooler installation

NOTE: The illustrations in this section are for reference only, but the installation steps remain the same.

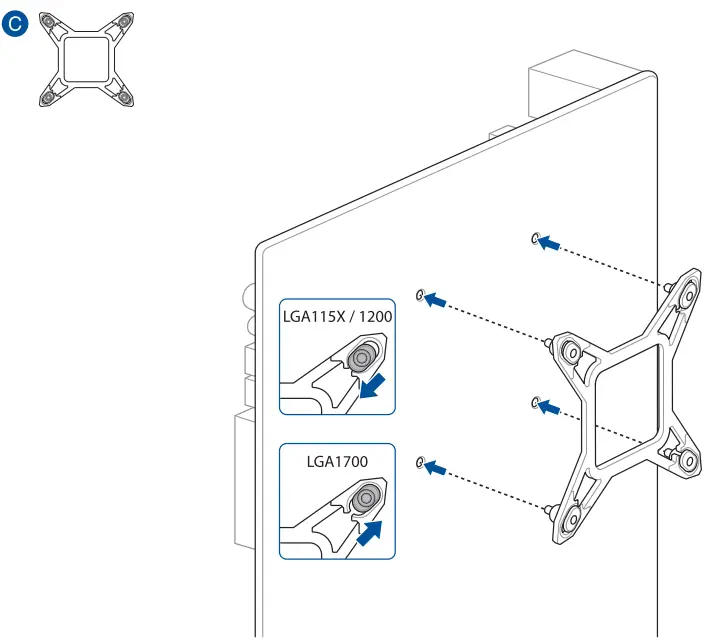

Install the Intel backplate

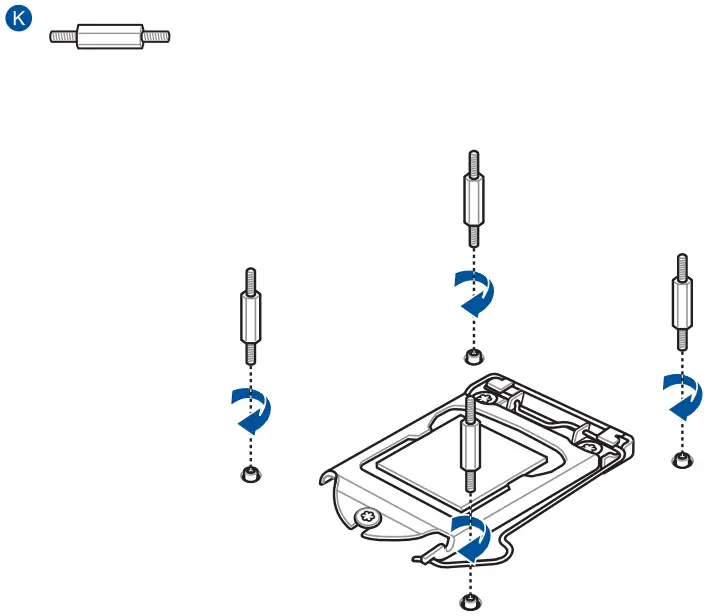

Install the Intel standoff screws

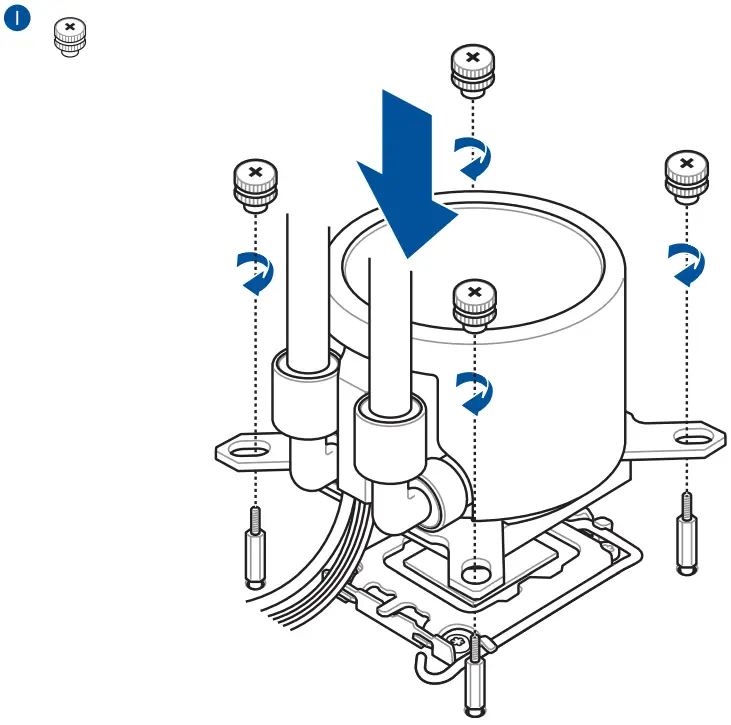

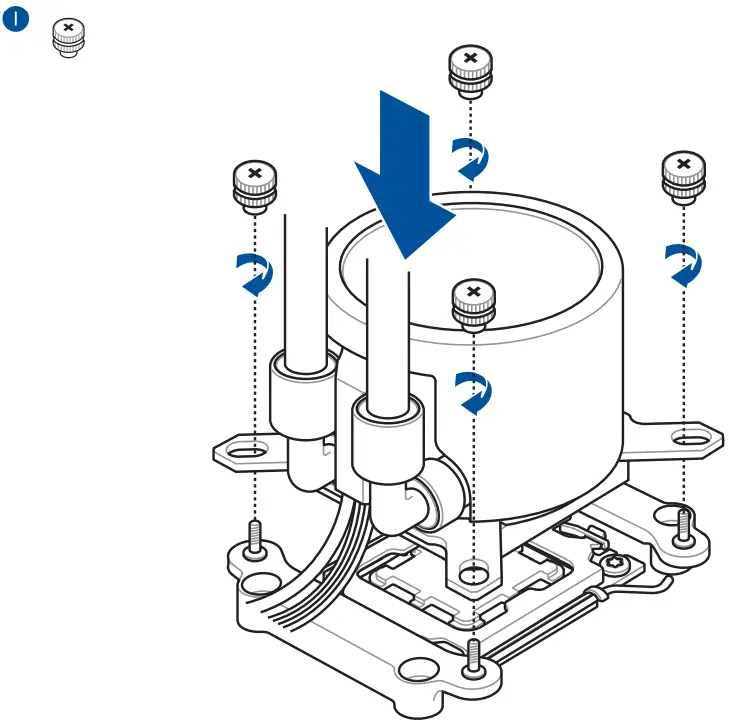

Install the pump

For Intel 1700

For Intel 115X/1200

NOTE: We recommend installing the pump with the water pipes of the pump facing towards or away from you for optimal performance (motherboard positioned with rear IO ports on your left).

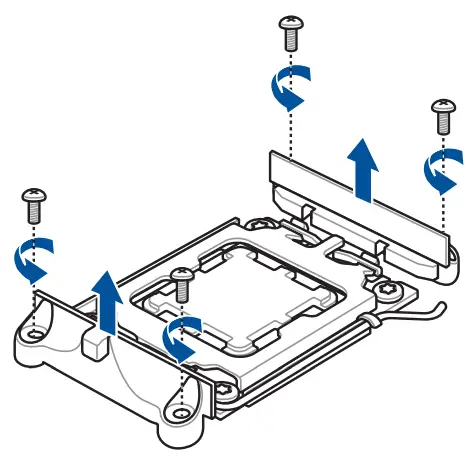

Remove the pre-installed heatsink mount

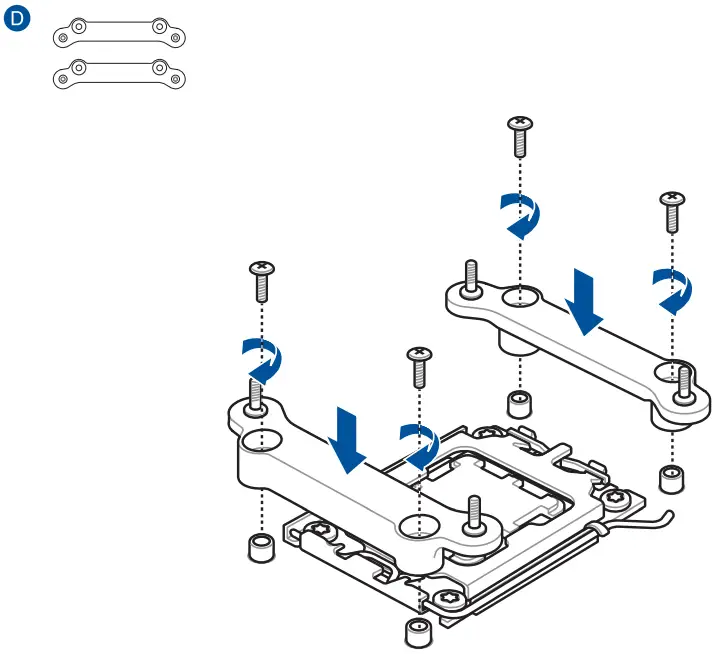

Install the AMD Mounting Bracket

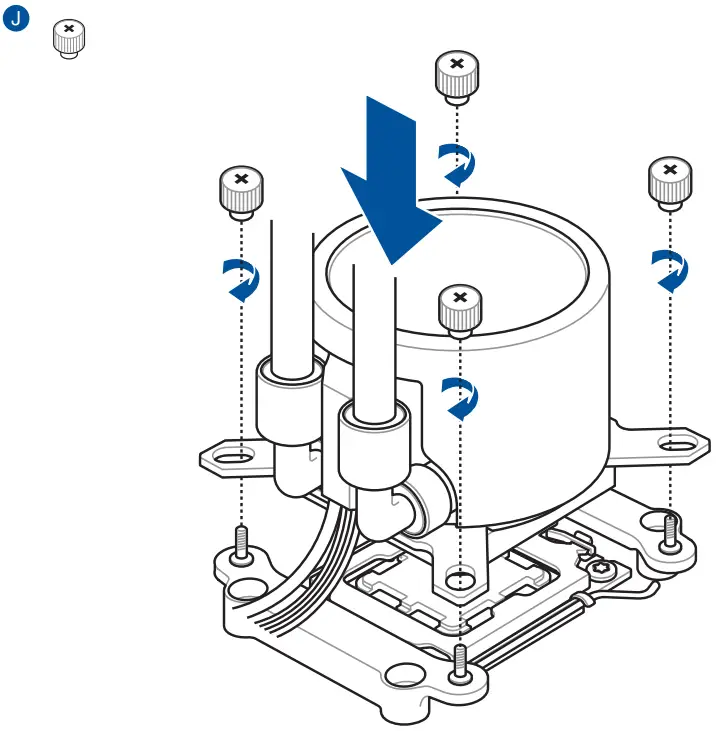

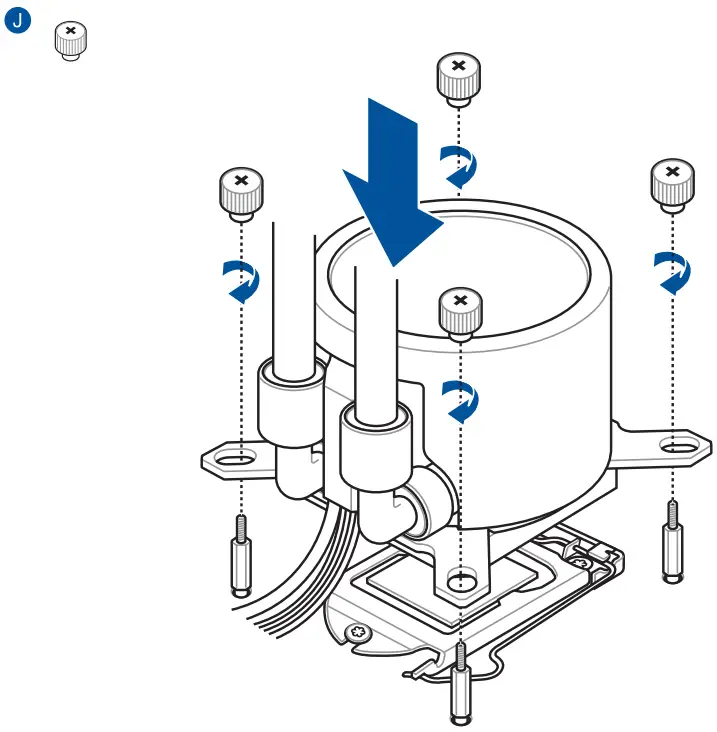

Install the pump

For AMD AM4

NOTE: We recommend installing the pump with the water pipes of the pump facing towards or away from you for optimal performance (motherboard positioned with rear IO ports on your left).

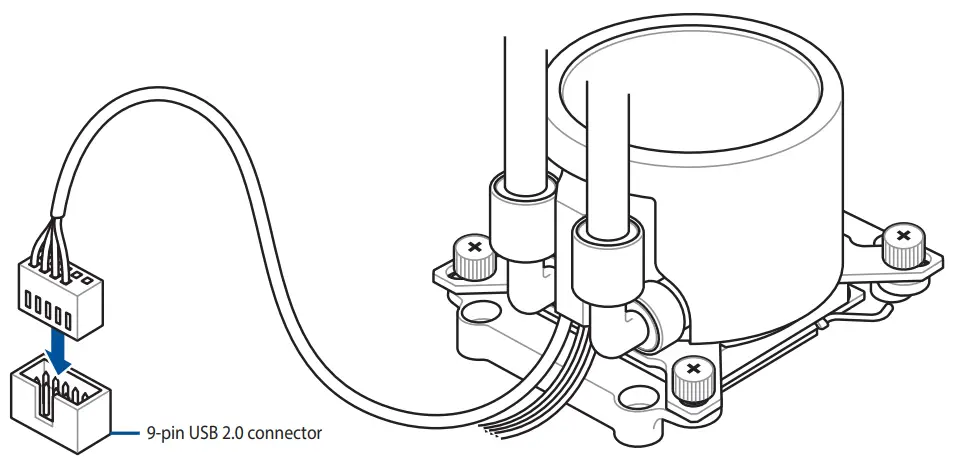

Connect the 9-pin USB 2.0 cable

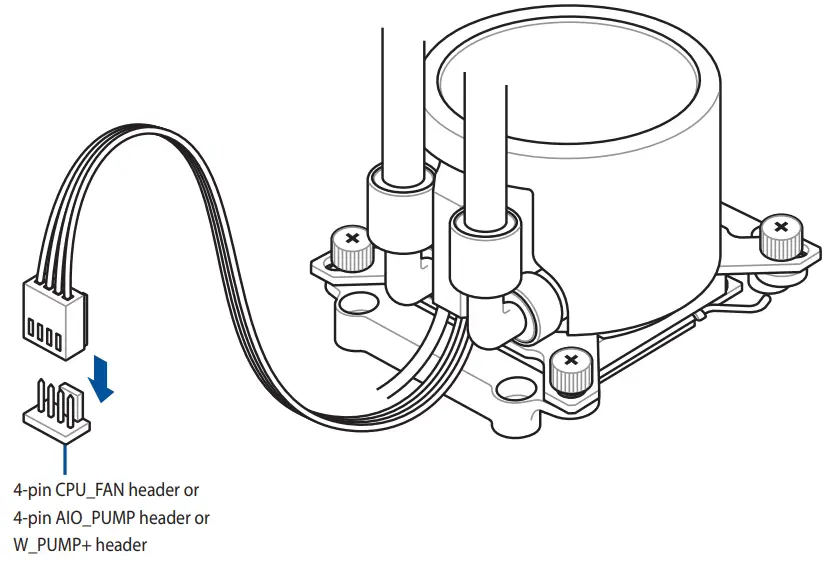

Connect the 4-pin fan cable

Remove HEX protection caps before installing the radiator

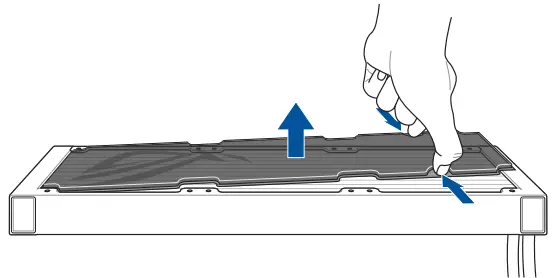

Top side

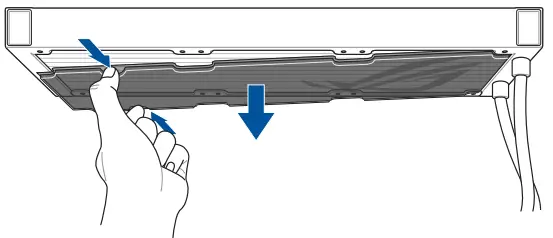

Bottom side

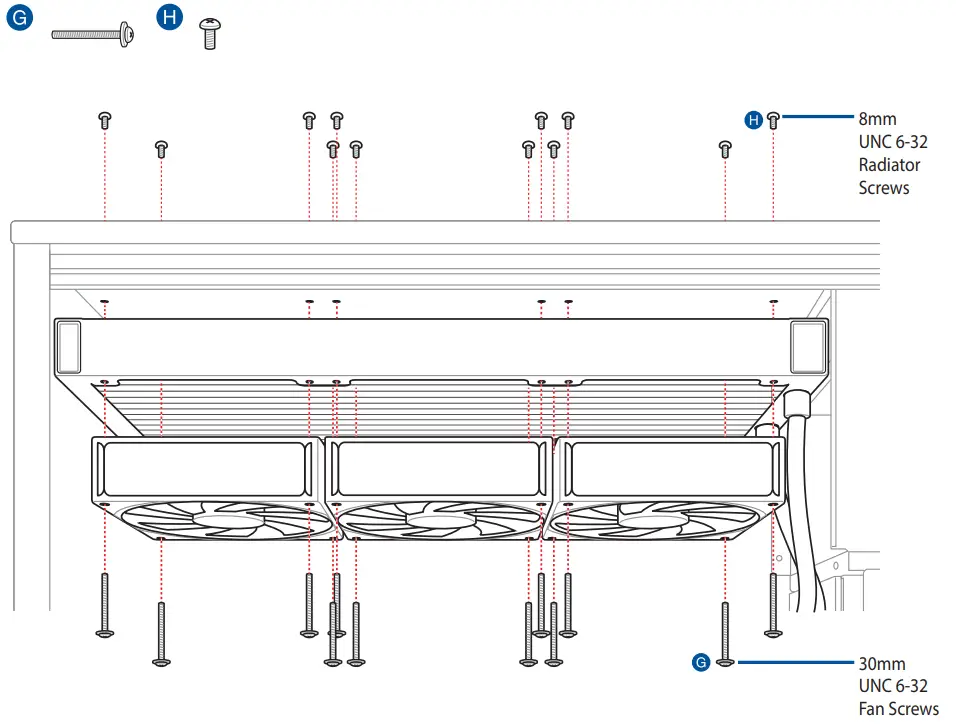

Installing the radiator

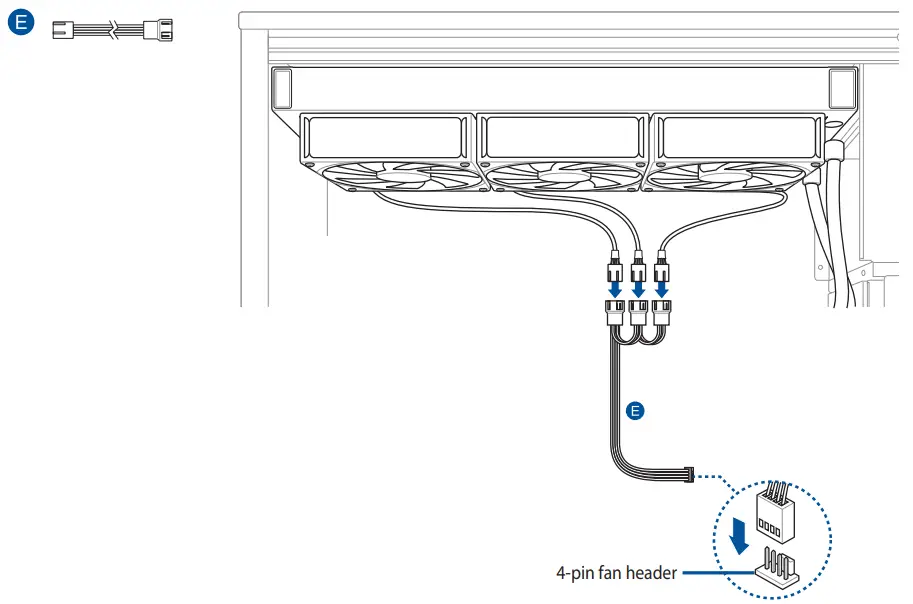

Connect the 3-way/2-way fan cable

Connect the 4-way ARGB cable

Download control software

Please visit the product support page at https://rog.asus.com/ to download and install the control software.

Support and FAQ

Q: What should I do if a CPU Fan Error error message pops up?

A: Enter BIOS, then go to Monitor and set CPU FAN Speed to [Ignore].
