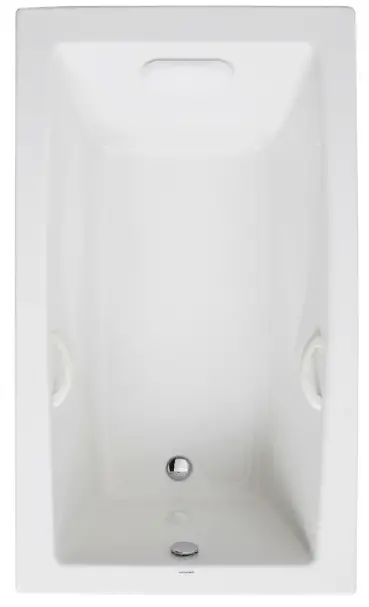

MANSFIELD 3781202 Acrylic Swirl-Way Bathtub
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Clean, geometric lines
- Includes one pillow
- Rectangular model with end drain (left- or right-hand installation)
- Pre-leveled legs for easy installation
- Integrated dual armrests for bather’s comfort
- Two decorative handles
- Spacious bathing well designed for one-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In, Alcove or Undermount
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5573550000 | 66″ x 36″ x 22-1/2″ Rectangular Swirl-Way® Bathtub. Drain not included. |  |
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced | SOAKING DEPTH | 15-3/4″ | |
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base. | FLOOR LOADING WEIGHT | 47 lbs. sq.ft. | |
| SHIPPING WEIGHT | 155 lbs. (70 kg) | |||
| WATER CAPACITY | 60 gal. (min.) / 75 gal. (max) | WARRANTY | Acrylic – 10-Year |

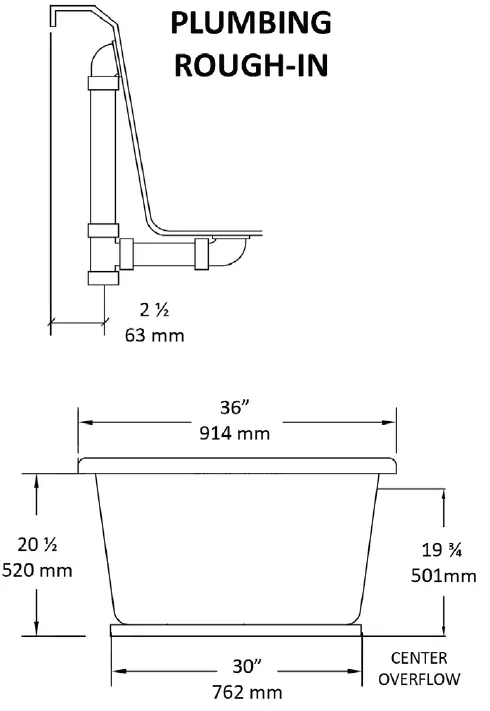

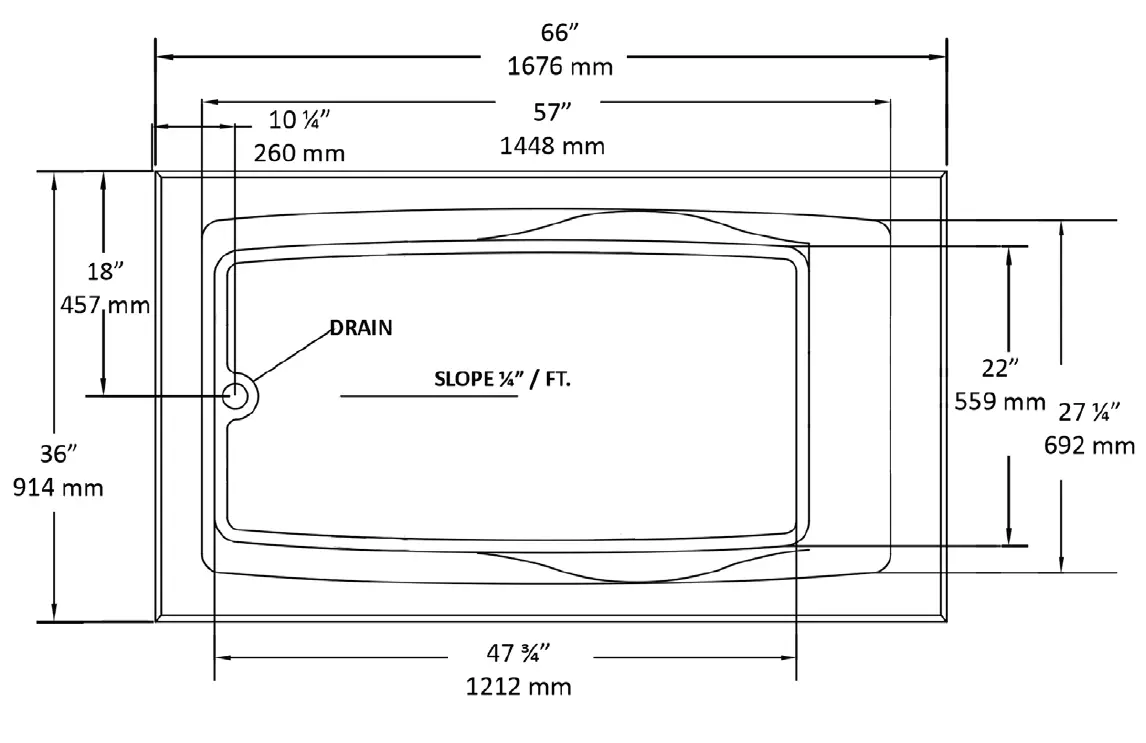

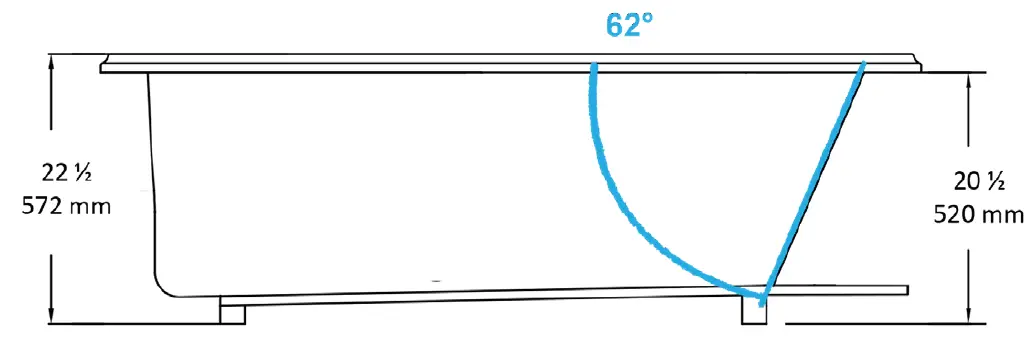

TECHNICAL INFORMATION
Note: these dimensions are nominal and subject to change without notice.
