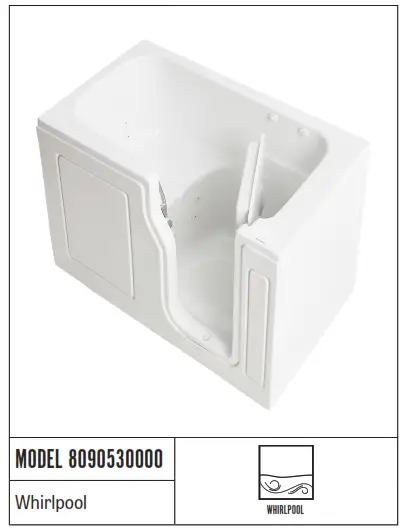

ITEM NO. 3492177 / MODEL NO. 8090530000
RESTORE ™ ACR
51-1/2″ x 30″ x 40″, Acrylic, Walk-In Whirlpool, Right-Hand
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Whirlpool hydromassage system uses fully controllable, high-pressure back and body jets for complete muscle relief
- 12-fully adjustable back and body jets for customized hydromassage
- Low 6-½” threshold allows for easy and safe entry and exit
- Ergonomic easy-to-use door handle
- Elevated 17″ seat for comfortable sitting and rising complies with ADA requirements
- Raised air switch button to easily turn whirlpool on/off
- Sloped backrest for added comfort
- Hygienic seat channel makes hard-to-reach areas easier to clean without lifting
- Cable operated drain within reach to quickly release water
- Adjustable leveling legs for quick and easy installation
- Removable front and end panels for easy access underneath tub
- Right-hand drain
- 10-year limited warranty on acrylic
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 8090530000 | 51-1/2″ x 30″ x 40″ Walk-In Whirlpool. Removable front (1) and end panel (1) for complete access to operating system. Cable drain in white is included. Faucet not included. |  |
REPLACEMENT PARTS & ACCESSORIES
| CAB1334 | Cable drain, white |
| ACR-001 | Extension box |
| ACR-002 | End panel |
| SWAP00 | Nailing Flange Kit (field installed) Kit includes: 14′ PVC nailing flange, tacky tape and installation instructions |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced |
| CONSTRUCTION | Self contained, pre-plumbed whirlpool system mounted on a steel frame with adjustable leveling legs. |
| ELECTRICAL REQUIREMENTS | Two dedicated 120 volt, 20 amp GFCI protected circuits |
| SOAKING DEPTH | 29-1/2″ overall, 13-1/4″ from seat |
| NUMBER OF JETS | 12 |
| WATER CAPACITY | 50 gal. (min.) / 70 gal. (max) |
| FLOOR LOADING WEIGHT | 900 lbs. |
| SHIPPING WEIGHT | Model 8090530000 – 245 lbs. (111 kg) |
| WHIRLPOOL PUMP | 120 volt, 7 amp |
| WARRANTY | Acrylic – 10-Year |
Note: these dimensions are nominal and subject to change without notice.

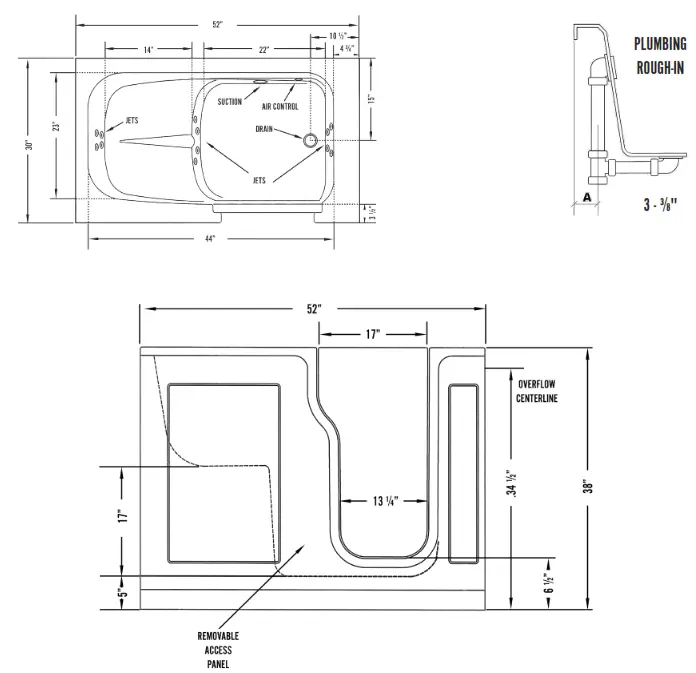

TECHNICAL INFORMATION
©2022 Mansfield Plumbing Products, LLC Rev. 04/22
Mansfield Plumbing Products, LLC
Customer Service Toll Free 877-850-3060
Fax 419-938-6234
www.mansfieldplumbing.com
Email: [email protected]
