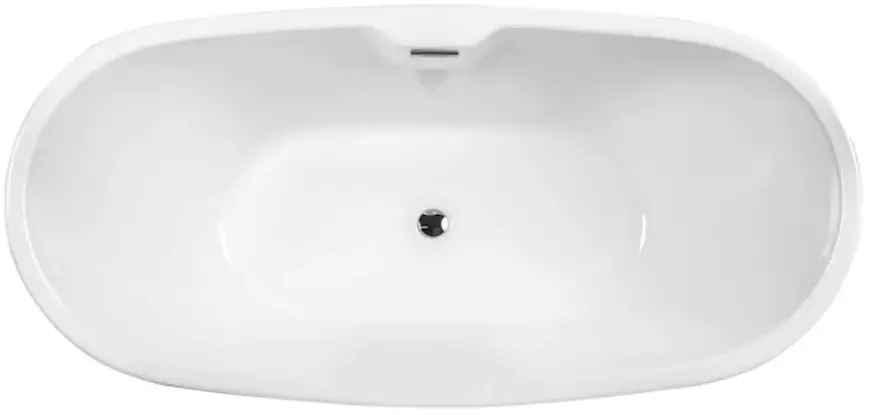

MANSFIELD 3781198 Acrylic Swirl-Way Bathtub
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Oval model with center drain
- Pre-leveled legs for easy installation
- Linear waste and overflow included
- Spacious bathing well designed for one-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5527550000 | 66″ x 36″ x 24″ Oval Swirl-Way® Bathtub. Drain not included. |  |
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced |
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base. |
| WATER CAPACITY | 44 gal. (min.) / 57 gal. (max.) |
| SOAKING DEPTH | 14-1/4″ |
| FLOOR LOADING WEIGHT | 47 lbs. sq.ft. |
| SHIPPING WEIGHT | 140 lbs. (64 kg) |
| WARRANTY | Acrylic – 10-Year |

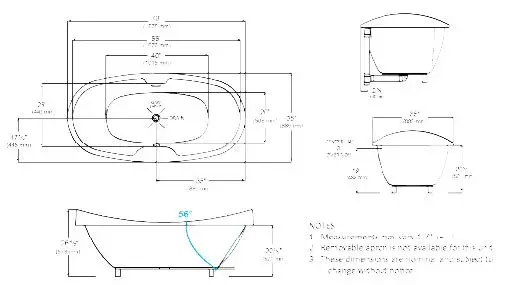

TECHNICAL INFORMATION
Mansfield Plumbing Products, LLC •
Customer Service Toll Free 877-850-3060 •
Fax 419-938-6234 www.mansfieldplumbing.com •
Email: [email protected]
