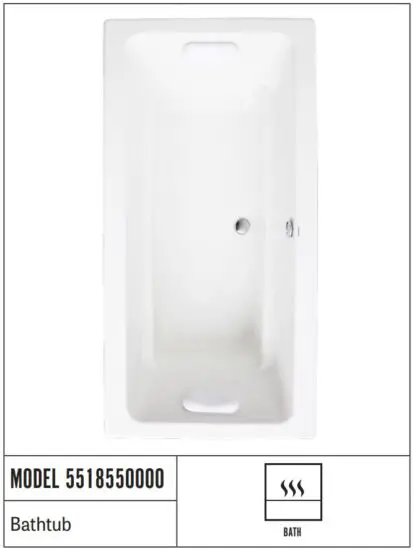

MANSFIELD 3781193 Acrylic Swirl-Way Bathtub User Guide
ITEM NO. 3781193 / MODEL NO. 5518550000
72″ x 42″ x 24″, Acrylic, Swirl-Way® Bathtub
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Clean geometric lines
- Includes two pillows
- Rectangular model with center drain
- Pre-leveled legs for easy installation
- Integrated dual armrests for bather’s comfort
- Spacious bathing well designed for two-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In, Alcove or Undermount
- Available in White

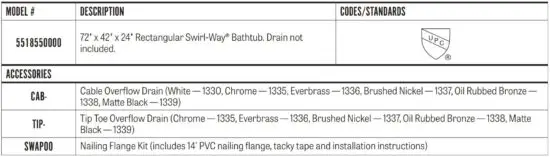

COMPONENTS
SPECIFICATIONS

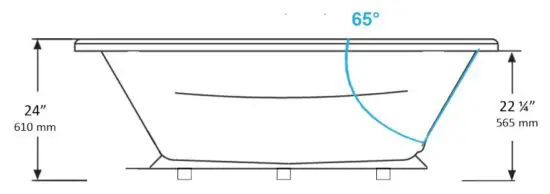

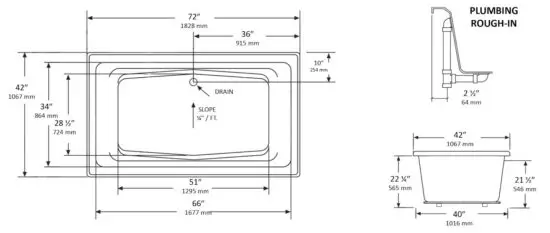

TECHNICAL INFORMATION
Note: these dimensions are nominal and subject to change without notice.
NOTES:
- Pump locations shown for clarity. Specify when ordering STD – Standard or ALT – Alternate
- Required pump motor access is 20″ W x 15″ H.
- Measurements may vary 1/4″ (+/-)
- If a factory installed nailing flange is added to a unit, add 1/8″ to each side flanged.
- Removable apron is not available for this unit.
- These dimensions are nominal and subject to change without notice
MADE IN USA
Mansfield Plumbing Products, LLC • Customer Service Toll Free 877-850-3060 • Fax 419-938-6234
www.mansfieldplumbing.com • Email: [email protected]
©2021 Mansfield Plumbing Products, LLC
