3781213 Barrett Alcove SwirlWay Bathtub

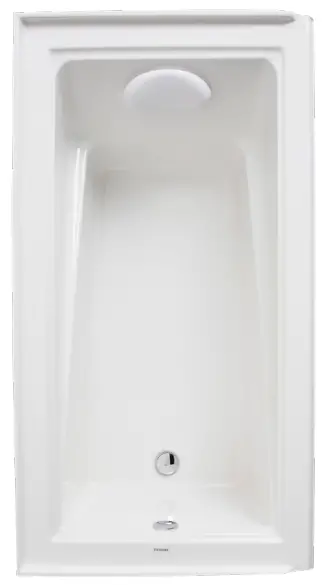

ITEM NO. 3781213 / MODEL NO. 5524R55000
BARRETT ™ ALCOVE
60″ x 32″ x 21-1/2″, Acrylic, Swirl-Way® Bathtub, Right-Hand
| |
| MODEL 5524R55000 |  |
| Bathtub | |
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5524R55000 | 60″ x 32″ x 21-1/2″ Rectangular Swirl-Way® Bathtub, right-hand. Drain not included. |  |
ACCESSORIES
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) |
60″ x 32″ x 21-1/2″, Acrylic, Swirl-Way® Bathtub, Right-Hand
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced |
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base. |
| WATER CAPACITY | 27 gal. (min.) / 57 gal. (max) |
| SOAKING DEPTH | 14-3/4″ |
| FLOOR LOADING WEIGHT | 47 lbs. sq.ft. |
| SHIPPING WEIGHT | 125 lbs. (57 kg) |
| WARRANTY | Acrylic – 10-Year |

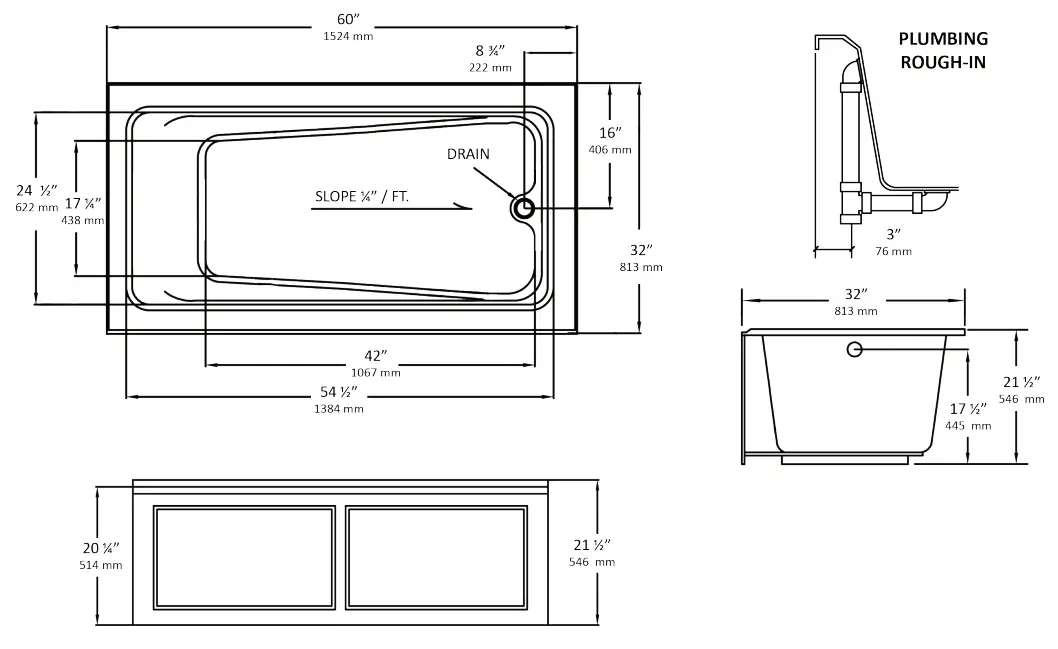

TECHNICAL INFORMATION
Note: these dimensions are nominal and subject to change without notice.
NOTES:
- Measurements may vary 1/4″ (+1-)
- Apron is integral with removable access panels for easy access to pump.
- These dimensions are nominal and subject to change without notice.
Mansfield Plumbing Products, LLC
Customer Service Toll Free 877-850-3060
Fax 419-938-6234
www.mansfieldplumbing.com
Email: [email protected]
©2021 Mansfield Plumbing Products, LLC
Rev. 09/21
