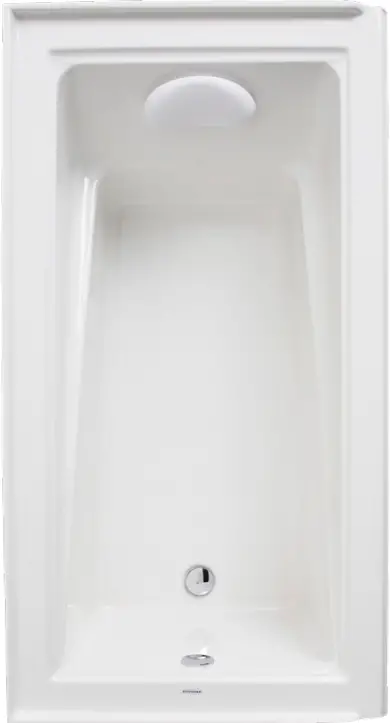

MANSFIELD 3781212 Barrett Alcove SwirlWay Bathtub Owner’s Manual
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Clean geometric lines
- Includes one pillow
- Rectangular model with left-hand end drain
- Pre-leveled legs for easy installation
- Integrated dual armrests for bather’s comfort
- Integrated tile flange and apron with removable access panel
- Spacious bathing well designed for one-person comfort
- 10-year limited warranty on acrylic
- Installation: Alcove
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5524L55000 | 60″ x 32″ x 21-1/2″ Rectangular Swirl-Way® Bathtub, left-hand. Drain not included. |  |
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglassrei nforced |
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base. |
| WATER CAPACITY | 27 gal. (min.) / 57 gal. (max) |
| SOAKING DEPTH | 14-3/4″ |
| FLOOR LOADING WEIGHT | 47 lbs. sq.ft |
| SHIPPING WEIGHT | 125 lbs. (57 kg) |
| WARRANTY | Acrylic – 10-Year |

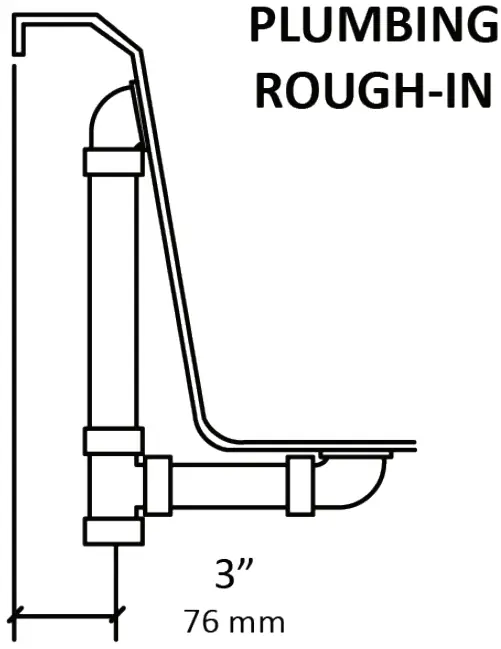

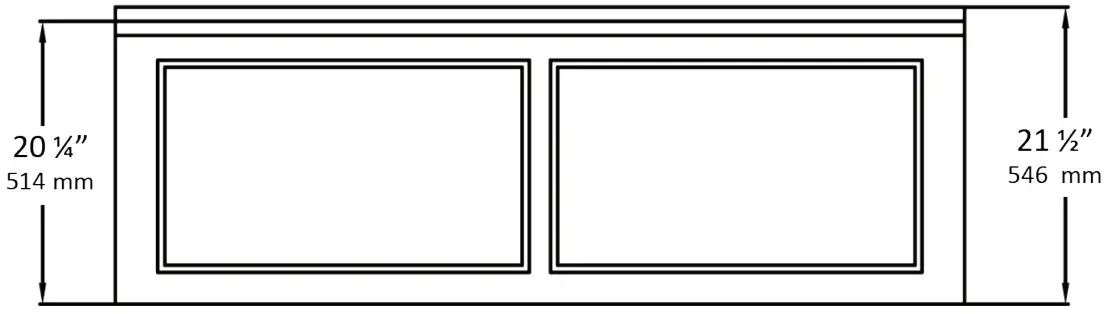

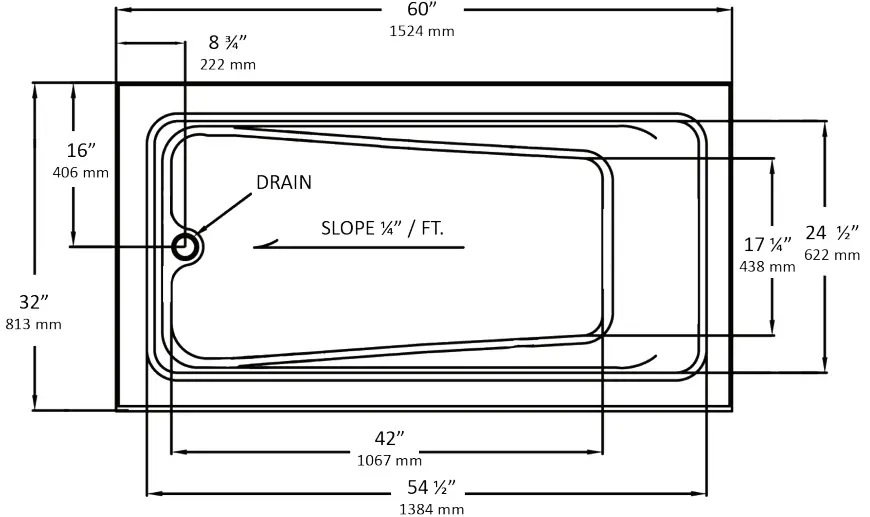

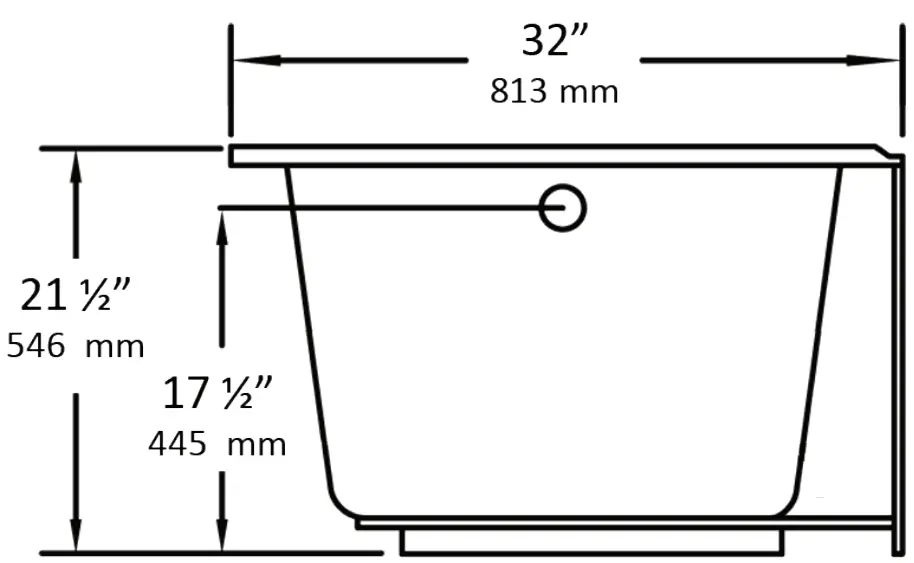

TECHNICAL INFORMATION
NOTES:
- Measurements may vary 1/4″ (+/-)
- Apron is integral with removable access panels for easy access to pump.
- These dimensions are nominal and subject to change without notice.
- Mansfield Plumbing Products, LLC
- Customer Service Toll Free 877-850-3060
- Fax 419-938-6234 www.mansfieldplumbing.com
- Email: [email protected]
©2021 Mansfield Plumbing Products, LLC
Rev. 09/21
