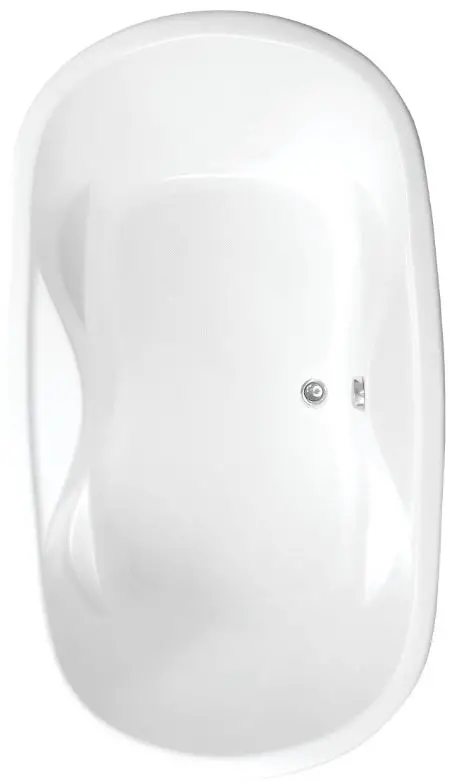

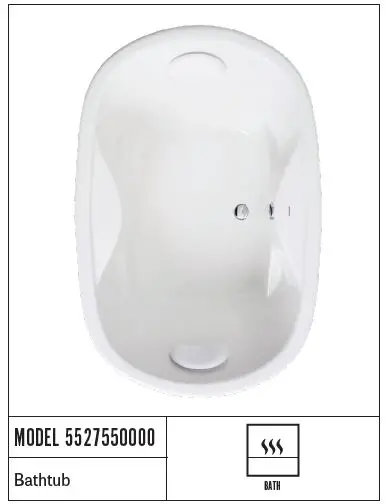

MANSFIELD 5527550000 Acrylic Swirl-Way Bathtub
ITEM NO. 3781195 / MODEL NO. 5527550000
ESSENCE™ 3666
66″ x 36″ x 24″, Acrylic, Swirl-Way® Bathtub
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Includes two pillows
- Oval model with center drain
- Pre-leveled legs for easy installation
- Integrated dual armrests for bather’s comfort
- Spacious bathing well designed for two-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5527550000 | 66″ x 36″ x 24″ Oval Swirl-Way® Bathtub. Drain not included. |  |
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced | SOAKING DEPTH | 15-1/4″ | |
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base. | FLOOR LOADING WEIGHT | 47 lbs. sq.ft. | |
| SHIPPING WEIGHT | 145 lbs. (66 kg) | |||
| WATER CAPACITY | 70 gal. (min.) / 85 gal. (max) | WARRANTY | Acrylic – 10-Year |

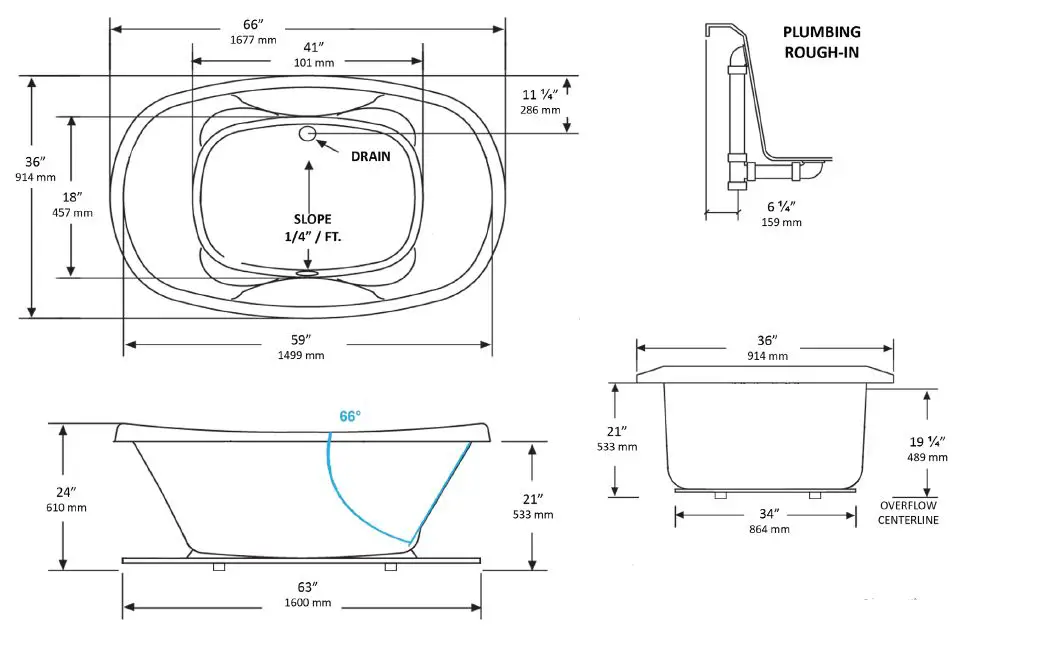

TECHNICAL INFORMATION
Note: these dimensions are nominal and subject to change without notice.
NOTES
- Measurements may vary 1/4″ (+/-)
- Removable apron is not available for this unit.
- These dimensions are nominal and subject to change without notice.
Mansfield Plumbing Products, LLC • Customer Service Toll Free 877-850-3060 • Fax 419-938-6234
www.mansfieldplumbing.com •
Email: [email protected]
2021 Mansfield Plumbing Products, LLC
Rev. 09/21
