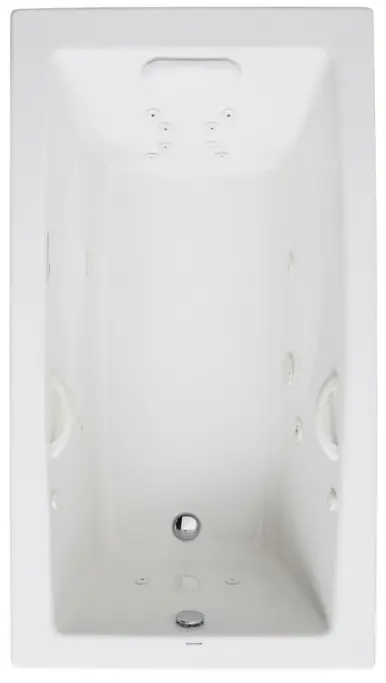

MANSFIELD 5073550000 Swirl-Way Luxury Series 36 Inch W x 66 Inch L White Acrylic
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Whirlpool hydromassage system uses fully controllable, high-pressure back and body jets for complete muscle relief
- Hydro-V back jet system with back and body jets
- Clean, geometric lines
- All jets are directionally and flow adjustable
- Includes one pillow
- Rectangular model with end drain (left- or right-hand installation)
- Pre-leveled legs for easy installation
- Integrated dual armrests for bather’s comfort
- Two decorative handles
- Spacious bathing well designed for one-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In, Alcove or Undermount
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5073550000 | 66″ x 36″ x 22-1/2″ Rectangular Swirl-Way® Whirlpool. Drain not included. |
|
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced | SOAKING DEPTH | 15-3/4″ | |
| NUMBER OF JETS | 14 | |||
| CONSTRUCTION | Self contained, pre-plumbed whirlpool bath system mounted on pre-leveled base. | WATER CAPACITY | 60 gal. (min.) / 75 gal. (max) | |
| FLOOR LOADING WEIGHT | 47 lbs. sq.ft. | |||
| ELECTRICAL REQUIREMENTS | One 120 volt, 20 amp GFCI dedicated circuit. Optional heater: separate 120 volt, 20 amp dedicated circuit. | SHIPPING WEIGHT | Model 5073550000 – 165 lbs. (75 kg) | |
| WHIRLPOOL PUMP | 9 amp | |||
| WARRANTY | Acrylic – 10-Year |

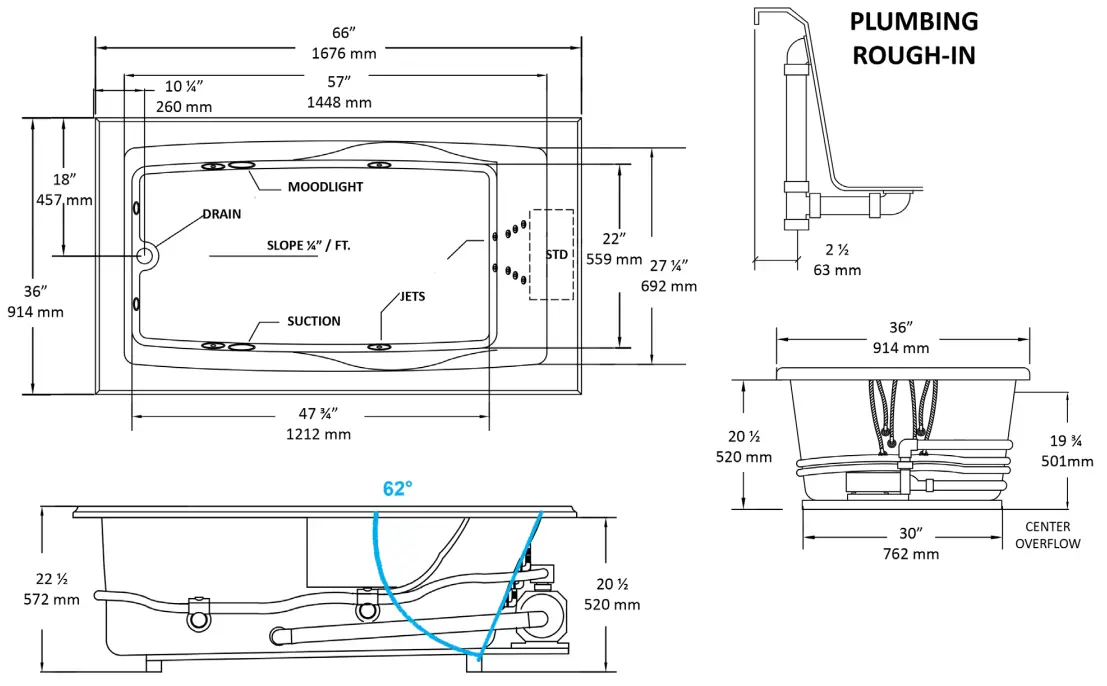

TECHNICAL INFORMATION
Note: these dimensions are nominal and subject to change without notice.
NOTES:
- Pump location is shown for clarity.
- Required pump motor access is 2011 W x 1511 H.
- Measurements may vary 1/4″ (+/-)
- If a factory installed nailing flange is added to a unit, add l/811 to each side flanged.
- Removable apron is not available for this unit.
- These dimensions are nominal and subject to change without notice.
