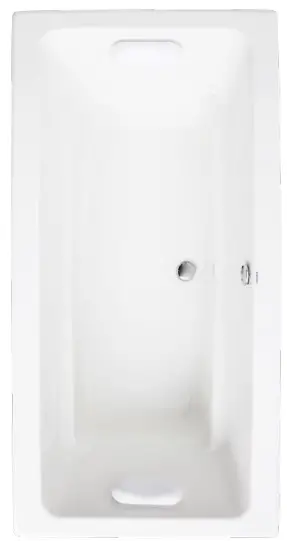

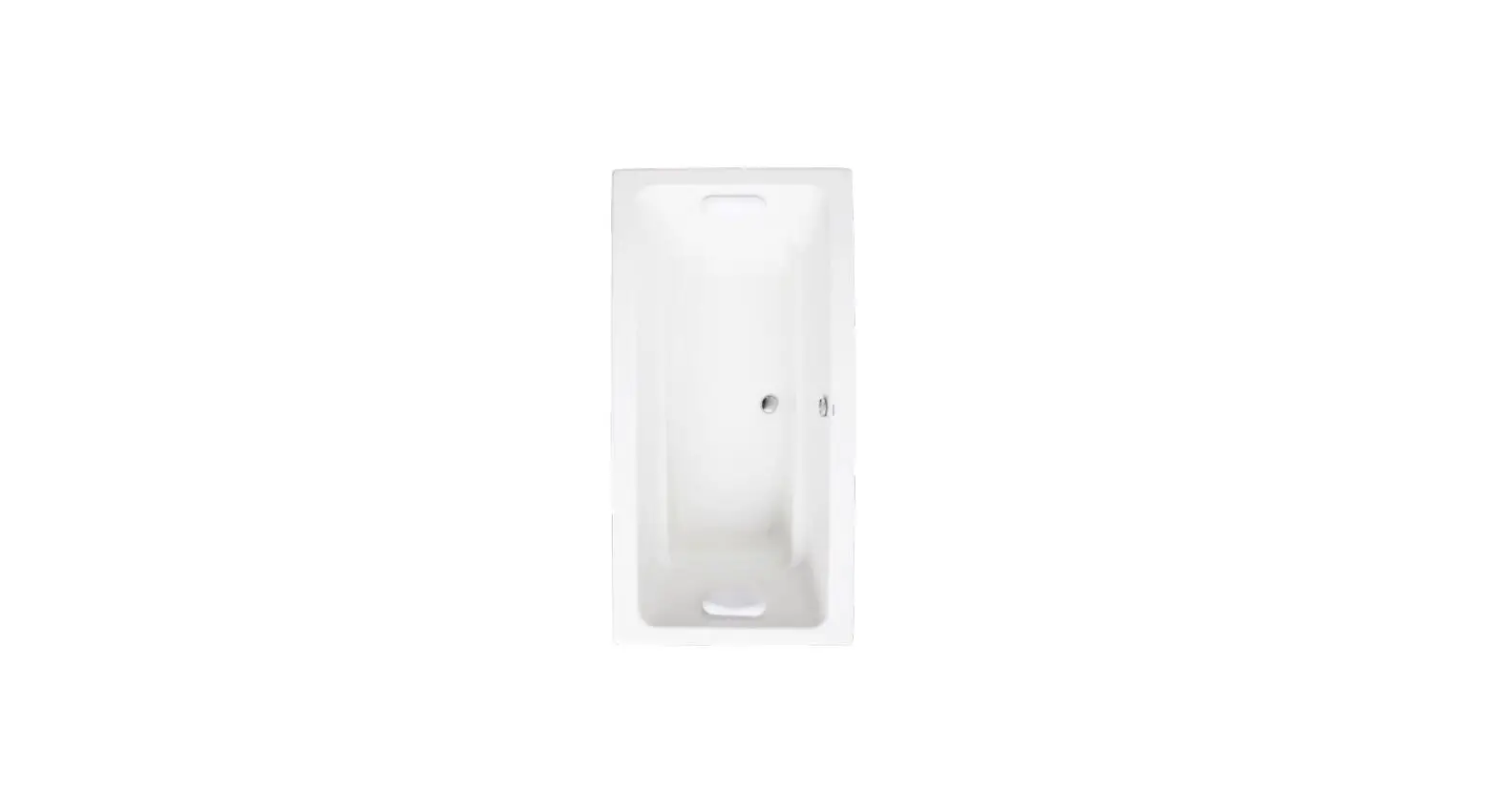

MANSFIELD 3803793 Acrylic Swirl-Way Bathtub Instruction Manual
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Clean geometric lines
- Includes two pillows
- Rectangular model with center drain
- Pre-leveled legs for easy installation
- Integrated dual armrests for bather’s comfort
- Spacious bathing well designed for two-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In, Alcove or Undermount
- Available in Whit
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5508550000 | 66″ x 36″ x 24″ Rectangular Swirl-Way® Bathtub. Drain not included. |  |
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced |
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base |
| WATER CAPACITY | 60 gal. (min.) / 70 gal. (max) |
| SOAKING DEPTH | 18-1/2″ |
| FLOOR LOADING WEIGHT | 47 lbs. sq.ft. |
| SHIPPING WEIGHT | 145 lbs. (66 kg) |
| WARRANTY | Acrylic – 10-Yea |

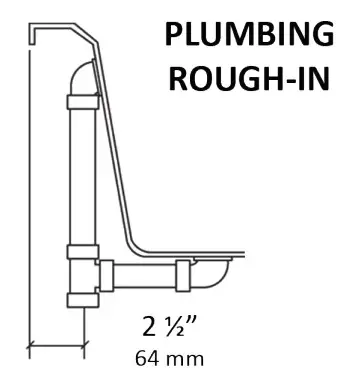

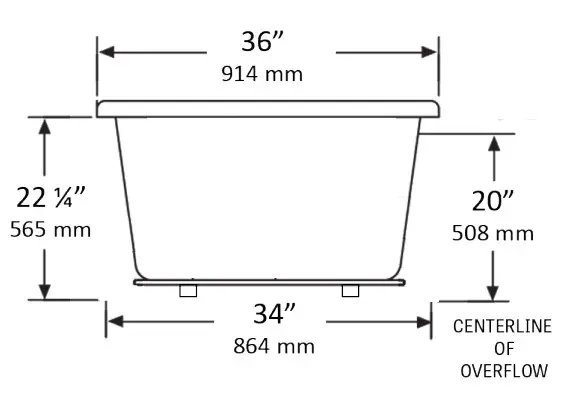

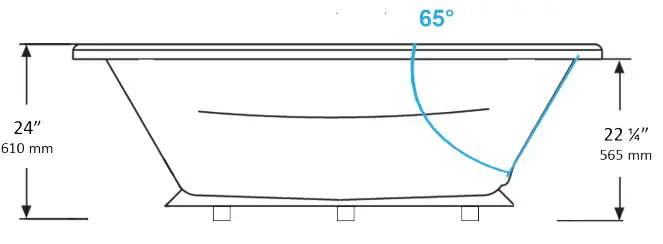

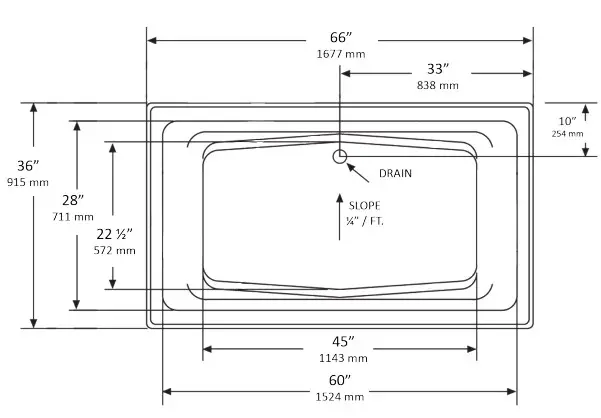

TECHNICAL INFORMATION
NOTES
- Measurements may vary 1/4″ (+/-)
- If a factory installed nailing flange is added to a unit, add 1/8″ to each side flanged.
- Removable apron is not available for this unit.
- These dimensions are nominal and subject to change without notice.
Mansfield Plumbing Products, LLC
- Customer Service Toll Free 877-850-3060
- Fax 419-938-6234
- Email: [email protected]
