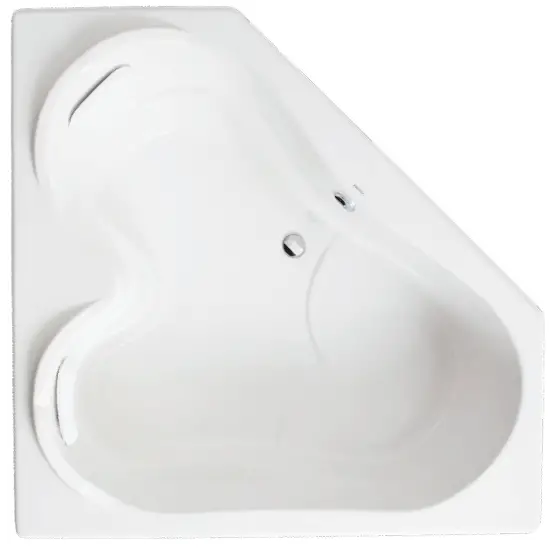

MANSFIELD 3781197 Acrylic Swirl-Way Bathtub
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Corner model with center drain
- Pre-leveled legs for easy installation
- Integrated dual armrests for bathers comfort
- Includes two pillows
- Spacious bathing well designed for two-person comfort
- 10-year limited warranty on acrylic
- Installation: Drop-In or Alcove
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5545550000 | 60″ x 60″ x 22″ Corner Swirl-Way® Bathtub. Drain not included. |  |
| ACCESSORIES | ||
| CAB- | Cable Overflow Drain (White — 1330, Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| TIP- | Tip Toe Overflow Drain (Chrome — 1335, Everbrass — 1336, Brushed Nickel — 1337, Oil Rubbed Bronze — 1338, Matte Black — 1339) | |
| SWAPOO | Nailing Flange Kit (includes 14′ PVC nailing flange, tacky tape and installation instructions) | |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced | SOAKING DEPTH | 16-3/4″ | ||
| CONSTRUCTION | Self contained bathtub mounted on a pre-leveled base. | FLOOR LOADING WEIGHT | 47 lbs. sq.ft. | ||
| SHIPPING WEIGHT | 165 lbs. (75 kg) | ||||
| WARRANTY | Acrylic – 10-Year | ||||
| WATER CAPACITY | 60 gal. (min.) / 92 gal. (max) |

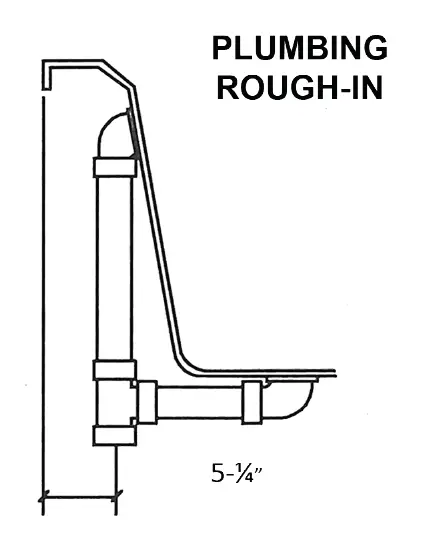

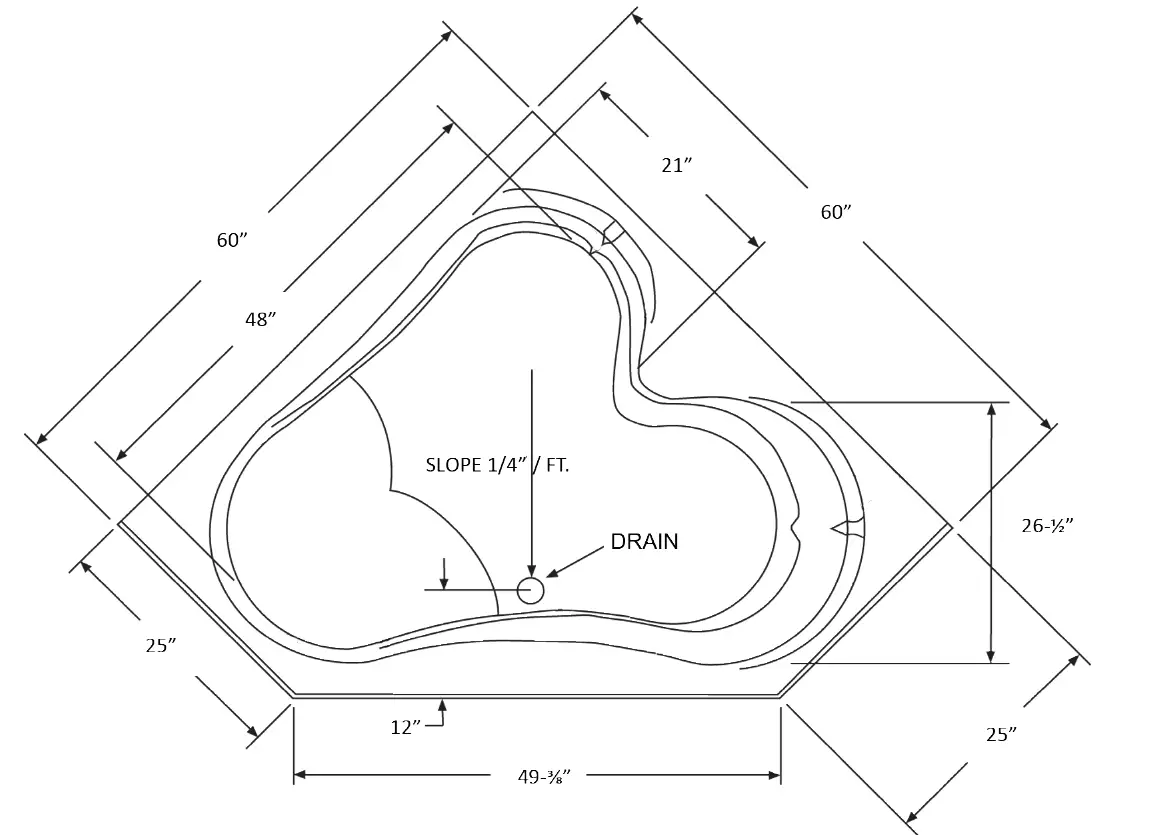

TECHNICAL INFORMATION
Note: these dimensions are nominal and subject to change without notice.
NOTES:
- Measurements may vary 1 /4″ ( +/-)
- If a factory installed nailing flange is added to a unit, add 1/8″ to each side flanged.
- Removable apron is not available for this unit.
- These dimensions are nominal and subject to change without notice.
