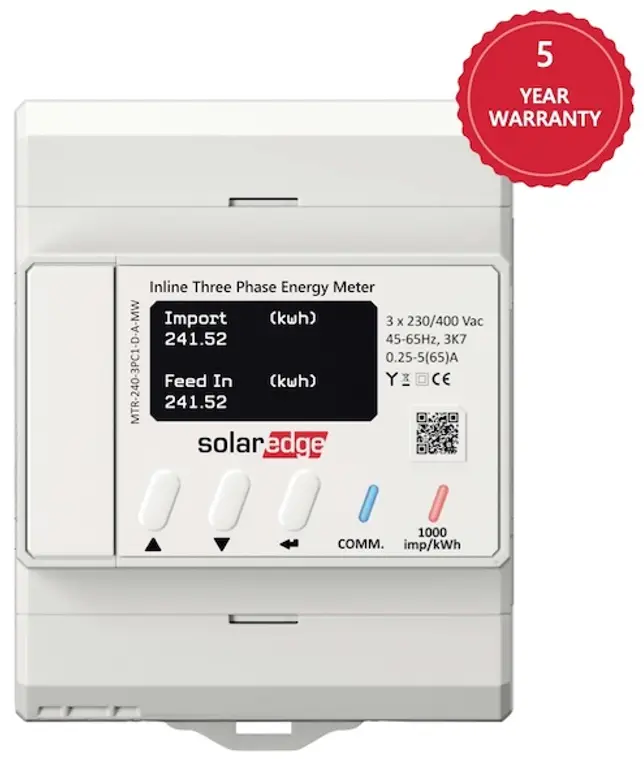

MTR EU3 Inline Three Phase Energy Meter
Grow your revenues with an easily installed metering solution that fits comfortably into standard electrical DIN-rail cabinets
- Performs export/import, production, and consumption energy readings with 1% accuracy
- Includes integrated current transformers for faster installations, reduced labor costs, and simplified logistics
- Easier installations using SolarEdge Energy Net to communicate wirelessly with the inverter (RS485 connectivity is optional)
- Supports export/import limitations and SolarEdge Smart Energy applications
- Integrates smoothly and easily with SolarEdge Smart Energy solutions
- Enables direct connection of up to 65A per phase, for single and three-phase grid connections
- Quick setup with automatic meter detection by the SolarEdge inverter
- Intuitive meter configuration and visibility to meter status using the NetApp mobile app
Inline Energy Meter
| Part Number | MTR-240-3PC1-D-A-MW | MTR-240-1PC1-DW-MW | UNITS | |
| Model Number | MTR EU3 | MTR EU1 | ||
| ELECTRICAL SERVICE | ||||
| Nominal Voltage | 3 x 230/400 | 1 x 230 | Vac | |
| Voltage Range | Line to Line | 320 – 460 | – | Vac |
| Line to Neutral | 184 – 264.5 | |||
| Supported Grids | L1 / L2 / L3 / N (WYE) | L / N | ||
| Power Consumption (max) | SolarEdge Energy Net Wireless Connection | < 2.0 | W | |
| RS485 Wired Connection | < 1.8 | |||
| AC Frequency | 45 – 65 | Hz | ||
| Maximum Current (Imax) | 65 | A | ||
| Transitional Current (It) | 0.5 | A | ||
| Starting Current (Ist) | 20 | mA | ||
| Minimum Current (Imin) | 0.25 | A | ||
| Reference Current (Iref) | 5 | A | ||
| Active Energy Accuracy | EN54070 Class B(1) IEC 62053-21 Class 1 | |||
| Active Energy Accuracy Error | It ≤ I < Imax | 1 | % | |
| Imin ≤ I < It | 1.5 | |||
| Reactive Energy Accuracy | IEC 62053-23 Class 2 | |||
| Reactive Energy Accuracy Error | It ≤ I < Imax | 2 | % | |
| Imin ≤ I < It | 2.5 | |||
| Over-voltage | CAT III 600 | Vac | ||
| RS485 COMMUNICATION | ||||
| RS485 Terminal Cross Section | 0.2 – 2 | mm2 | ||
| Interface | RS485 half duplex, 3 wires (A, B, GND) | |||
| Protocol | MODBUS RTU | |||
| Power Register Update Resolution | <200 | ms | ||
| All Other Registers | < 4 | sec | ||
| RS485 Line Termination | 120 (selectable) | Ω | ||
| WIRELESS COMMUNICATION(2) | ||||
| Frequencies | 863 – 876 (band 868) 902 – 930 (band 915) | MHz | ||
| Transmit Power EIRP | 14 (with internal antenna) 16 (with external antenna) | dBm | ||
| Transmit Power (Max) | 14 | dBm | ||
| Modulation | OQPSK | |||
| Internal Antenna Gain | 0 | dBi | ||
| External Antenna(3) Gain | 2 | dBi | ||
| Antenna Connector | SMA-RP | |||
| External Antenna Mounting | Wall mount with bracket | |||
| PULSE DISPLAY | ||||
| Pulse Frequency | 1000 | imp / kWh | ||
| Pulse Length | 5 (min), 80 (max) | ms | ||
| INSTALLATION/MECHANICAL | ||||
| Display | 8 digits | |||
| Protection Rating (Indoor) | IP51 | |||
| Mounting Support | DIN rail | |||
| Weight | 320 | g | ||
| Material | PC Lexan 503R | |||
| Dimensions (W x H x D) | 72 x 90 x 58 | mm | ||
| AC Terminal Cross Section Area | 1.5 – 25 | mm2 | ||
- EN54070 Class B, when AC inputs are connected to the upper terminal blocks. EN54070 Class A, when AC inputs are connected to the lower terminal blocks
- SolarEdge Energy Net wireless communication requires inverter support
- The external antenna kit should be purchased separately (PN: SE-ANT-ENET-HB-01)
| Part Number | MTR-240-3PC1-D-A-MW | MTR-240-1PC1-DW-MW | UNITS |
| Model Number | MTR EU3 | MTR EU1 | |
| ENVIRONMENTAL | |||
| Operating Temperature | -40 to +70 Suitable for outdoor installations | °C | |
| Storage Temperature | -40 to +85 | °C | |
| Relative Humidity (non-condensing) | 75 (yearly average) 95 (30 days/year) | % | |
| Installation Altitude | < 2000 | m | |
| Pollution Degree | 2 | ||
| STANDARD COMPLIANCE | |||
| Safety | UL 61010-1; CAN/CSA-C22.2 No. 61010-1-04; IEC 61010-1 | ||
| Immunity | EN 61000-4-8; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11 | ||
| Emissions | FCC Part 15, Class B; EN 55032 Class B, EN 61000-3-2,EN 61000-3-3 | ||
| Wireless | IEC EN 300 220 | ||
