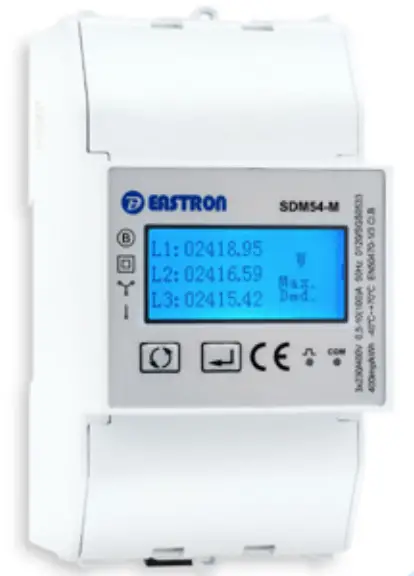

Eastron Sdm54 Series Smart Three Phase Energy Meter User Manual

SDM54 series
Smart Three Phase Energy Meter
User Manual
2022 V1.0

Introduction

The SDM54 measures and displays the characteristics of single phase two wires (1p2w) and three phases four wires(3p4w) supplies, including voltage, frequency, current, power, power factor, active and reactive energy, imported or exported.
Energy is measured in terms of kWh and kVArh. Maximum demand on power and current can be measured over preset periods of up to 60 minutes. SDM54 supports max. 100A direct loads per phase, with dual tariff management availability. The meter is designed for DIN-rail mounting, with IP51 front protection. The meter is optionally equipped with pulse outputs, RS485 Modbus port or M-bus port. Configuration can also be done via keypad, which is password protected.
1.1 Unit Characteristics
The SDM54 Series are smart three-phase energy meters, covering 3 models with the following features and differences:

1.2 RS485 Serial–Modbus RTU
The RS485 serial port with Modbus RTU protocol provides a means of remotely monitoring and controlling the unit. Set-up screens are provided for setting up the RS485 port. D/LT645 protocol is optionally available on request.
1.3 M-Bus
The M-Bus port complying with EN13757-3 protocol provides a means of remotely monitoring and controlling the meter. Set-up screens are provided for setting up the M-Bus port.
1.4 Pulse outputs
Two pulse outputs that clock up the measured active and reactive energy. The constant of pulse output 2 for active energy is 400imp/kWh (unconfigurable), its width is fixed at 100ms. The default constant of configurable pulse output 1 is 400imp/kWh, the default pulse width is 100ms. The configurable pulse output 1 can be set from the set-up menu.
1.5 Double Tariffs
The meter has double tariffs function for cost allocation management. There are two terminals to monitor voltage input from external devices. Once there are voltage detected within 230V (80~120%), the energy will be counted in another register.

Start-up Screens

	The interface performs initial testing.
	The second screen indicates the software version.
	Meter serial number; Modbus ID; Baudrate info are provided.

After a short delay, the screen will display active energy measurements.

Measurements

3.1 Buttons
There are two buttons on the front panel.

	> Scroll the display for data-check. > Change option at Set-up mode > Exit the Set-up mode
	> Set-up mode entry > Confirmation

3.2 Measured parameters
Each successive pressing of the button shows different parameters measured:

	Total kWh Import kWh Export kWh
	Total kVarh Import kVarh Export kVarh
	(Available in SDM54-2T only) Tariff 1’s active energy Total kWh Import kWh Export kWh The “_” under T1 means tariff 1 is running at the moment.
	(Available in SDM54-2T only) Tariff 1’s reactive energy Total kVarh Import kVarh Export kVarh
	(Available in SDM54-2T only) Tariff 2’s active energy Total kWh Import kWh Export kWh
	(Available in SDM54-2T only) Tariff 2’s reactive energy Total kVarh Import kVarh Export kVarh
	L1-N Voltage L2-N Voltage L3-N Voltage
	L1-2 Voltage L2-3 Voltage L3-1 Voltage
	Frequency
	L1 Current L2 Current L3 Current
	Neutral Current
	Total PF (Power Factor) L1 PF L2 PF L3 PF
	Total PF (Power Factor)
	Max. Current Demand of L1 L2 L3
	Max. Active Power Demand of L1 L2 L3
	Active Power Reactive Power Apparent Power
	Active Power of L1 L2 L3
	Reactive Power of L1 L2 L3
	Apparent Power of L1 L2 L3

Set-up

Keep pressing the button, the meter will get into Set-up mode.

	Password is needed be checked before any further operation. The default password is 1000.
	The left screen shows the set-up menu of the meter, including main, communication, time, and pulse.
	System type: the network type where the meter is installed and working. Options: 3P4W(default), 3P3W, 1P3W, 1P2W.
	Password: allows user to set a new password.
	Reset: to reset the max. Dmd / DI DMD: information of current and active power DI: digital input counts
	Com.: configure the communication parameters
	Address: communication MODBUS Address, range from 001~247
	Baud: communication baudrate Options: 2400~38400bps; Default: 9600bps
	Parity: Communication Parity Options: None, Even, Odd Default: None
	Stop: Stop bit of communication Options: 1 or 2 Default: 1
	Time information setting
	Backlight: to set the backlight duration time after button operation. Options: on, off, 5, 10, 15, 30, 60, 120 minutes. Default: 60 minutes
	Scroll: automatic screen scroll time interval. Options: off, 5,10,15, 30,60 seconds. Default: off
	DMD: demand interval time Options: 0, 5, 8, 10, 15, 20, 30, 60 minutes. Default: 60 minutes
	Pulse output 1 parameter setting The meter pulse output 1 is configurable. Note: Pulse output 2 is fixed to
	Type: the type of energy that pulse output is refer to. Options: kWh; Imp-kWh; Exp-kWh kVarh; Imp-kVarh; Exp-kVarh Default: Exp-kWh
	Constant: Pulse output constant Options: 1000; 100; 10; 1 Default: 400
	Width: Pulse width Options: 60,100,200mS Default: 100mS

Specifications

5.1 Electrical specifications

5.2 Environmental specifications

5.3 Output specifications
Three interfaces are available:

• Modbus RS485 port output … (SDM54-M, SDM54-2T, SDM54-DI)
• M-Bus port output … (SDM54-MB, SDM54-MB-2T)
• two Pulse outputs

5.3.1 Modbus RS485 port output

5.3.2 M-Bus port output

5.3.3 Pulse Output
The unit provides two pulse outputs indicating real-time measured energy. Pulse output 1 is configurable; Pulse output 2 is fixed with a constant 400imp/kWh.. Both pulse outputs are passive type.
Pulse output 1 is configurable. Default setting is exp-kWh; 100mS, constant 400imp/kWh
Pulse output 2 is non-configurable. It is fixed up with active kWh. The constant is 400imp/kWh.
5.4 Safety and EMC

5.5 Mechanics specifications

Warnings
Important Safety Information is contained in the Maintenance section. Familiarize yourself with this information before attempting installation or other procedures. Symbols used in this document:
Risk of Danger: These instructions contain important safety information. Read them before starting installation or servicing of the equipment.
Caution: Risk of Electric Shock

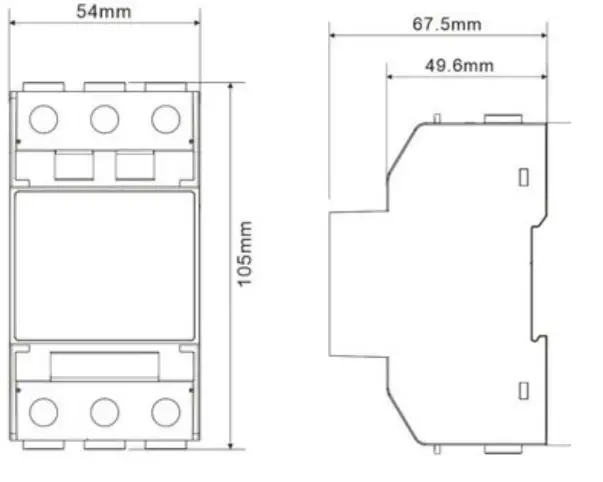

Dimensions

Wiring diagram

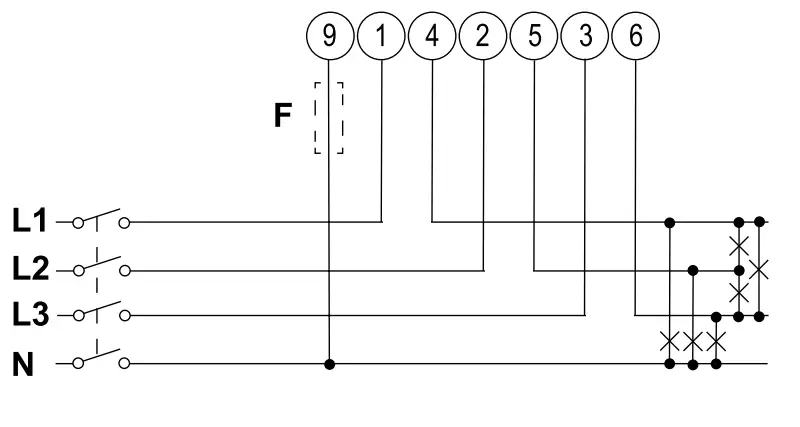

• Three Phase Four Wires:

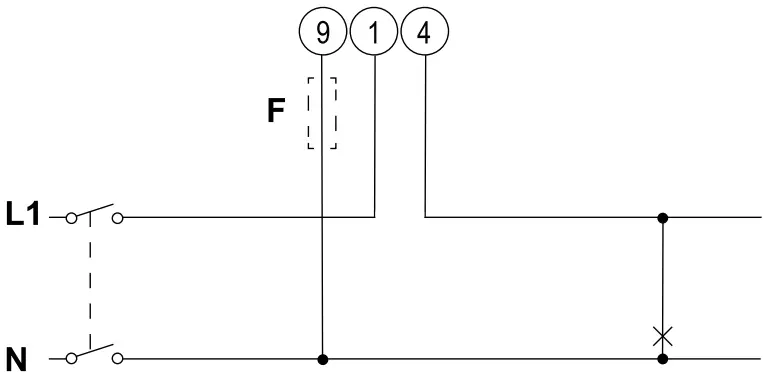

• Single Phase Two Wires:

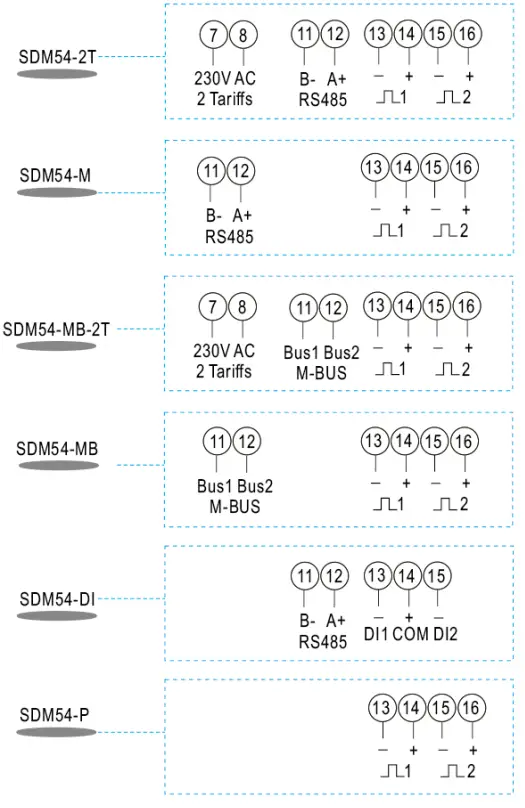

• Other terminals

EU Declaration of Conformity

EU Declaration of Conformity
We, Zhejiang Eastron Electronic Co LTD
No.1369, Chengnan Rd. Jiaxing, Zhejiang, 314001, China
Ensure and declare that electricity meter types:
SDM54-2T
SDM54M
SDM54-DI
SDM54-MB-2T
SDM54-MB
SDM54-P
with the measurement range
1. 3 x 230/400V 50Hz, 0.5-10(100)A 400imp/ kWh.
Are in conformity with the type as described in the EU-type examination certificate 0120/ SGS0533
The fulfillment of the essential requirements set out in Annex I and in the relevant instrument-specific Annexes have been demonstrated.
The electricity meter types described above are in conformity with the relevant Union harmonization legislation and satisfy the appropriate requirements of the Directive
2014/32/EU with the following standards:
EN50470-1:2006, Electricity metering equipment (AC) part 1: General requirements, tests and test conditions. Metering equipment (class indexes A, B and C)
EN50470-3:2006, Electricity metering equipment (AC) Part 3: Particular requirements static meters for active energy (class indexes A, B and C)
This Declaration of Conformity is issued under the sole responsibility of the manufacturer.
Signed on behalf of Zhejiang Eastron Electronic Co., LTD.

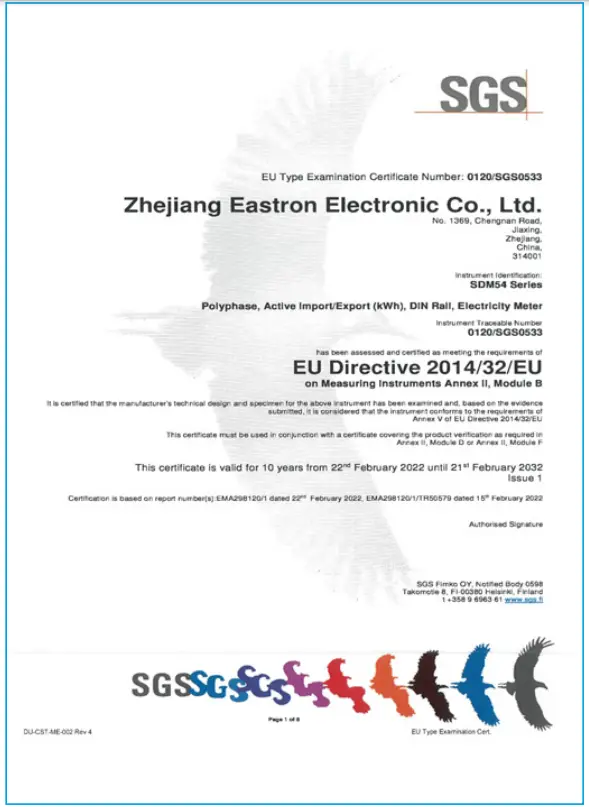

MID certificate
