Induro TM Mortice Lock
Palladium Xtra Furniture
Installation instructions
Application: Compatible with Induro Hinge Door Mortice Locks. Provides day latch snib.
Tools required:
- Drill
- 11mm, 16mm & 18mm Drill bit
- Square #1 Screwdriver
Door Preparation

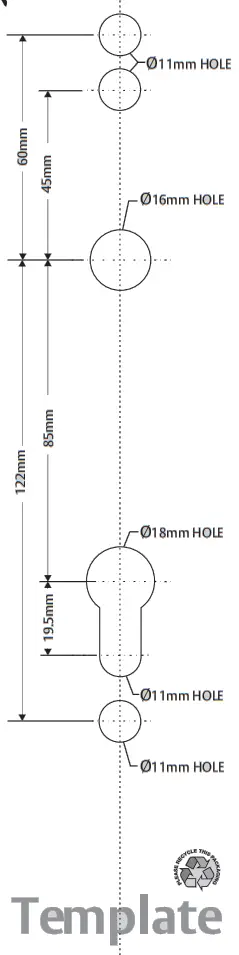

Position template on the door.
Mark and drill holes for cylinder, spindles, and furniture mounting as shown.

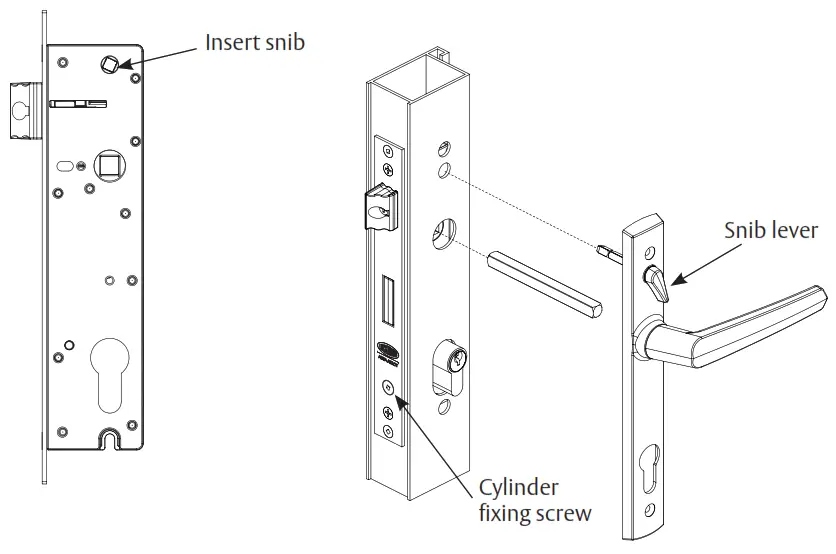

Inserting snib in lock
- If the mortice lock is fitted, loosen the cylinder fixing screw.
- Insert the drive bar through the square drive hole in the lock.
- Place the interior handle onto the drive bar on the internal side of the door.
- Insert the Snib into the square drive hole at the top of the lock. The snib lever must point away from the front of the lock, as shown.

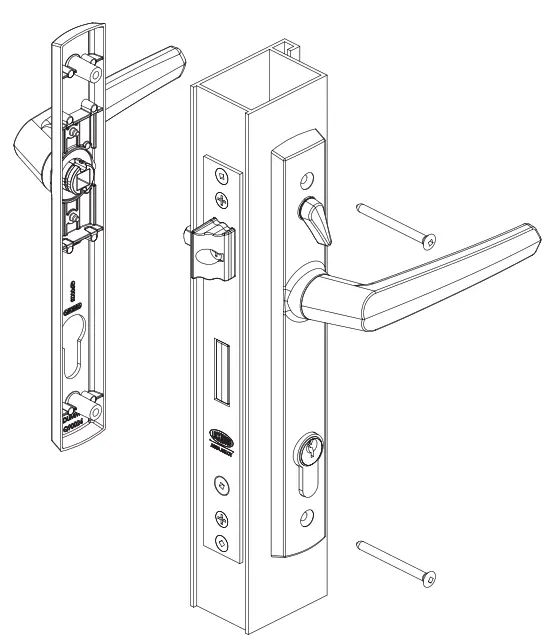

Fixing furniture
- Place the external furniture on the drive bar.
- Fix secure furniture using two M4 screws. See screw chart to determine correct length.
- Tighten cylinder fixing screw if previously loosened.
Screw selection:
| Screw | Stile Width |
| M4 x 49mm | 38 – 43mm |
| M4 x 55mm | 43 – 49mm |
| M4 x 60mm | 46 – 55mm |
| M4 x 65mm | 55 – 58mm |

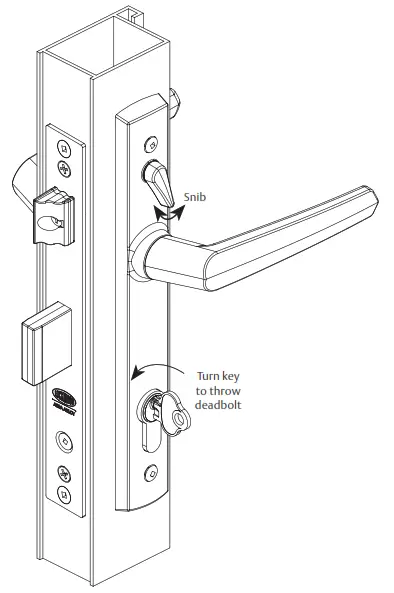

Furniture operation
- Push the snib towards the front of the door to lock off the furniture
- The snib can be retracted by turning the key to throw the deadbolt or by pushing the snib lever away from the front of the door
