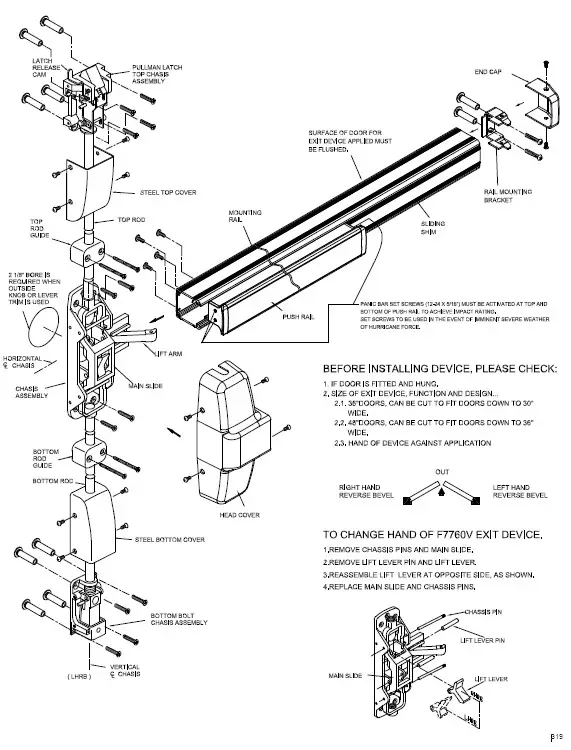

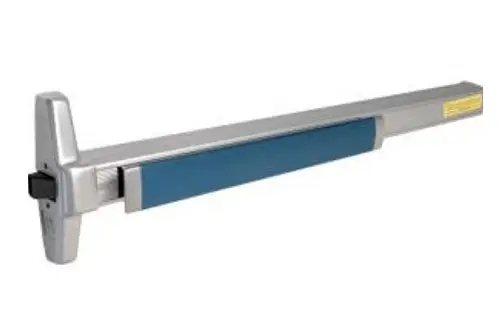

INSTALLATION INSTRUCTIONS FOR ED93F-SVR SERIES FIRE VERTICAL ROD EXIT DEVICE.

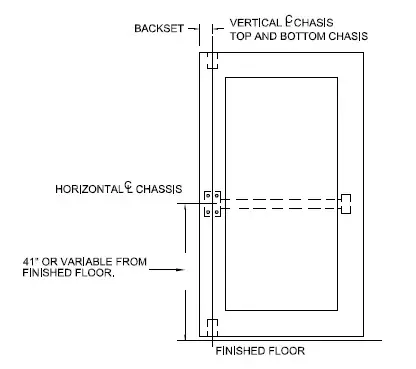

1. MARK VERTICAL AND HORIZONTAL REFERENCE LINE ON DOOR.

DETERMINE BACKSET TO LOCATE VERTICAL REFERENCE LINE.

1. IF LOCK STILE IS 4-1/2″ WIDE OR WIDER, BACKSET IS 2-3/4″.
2. IF LOCK STILE IS LESS THAN 4-1/2″ WIDE, BACKSET IS HALF OF THE EXPOSED WIDTH OF LOCK STILE.

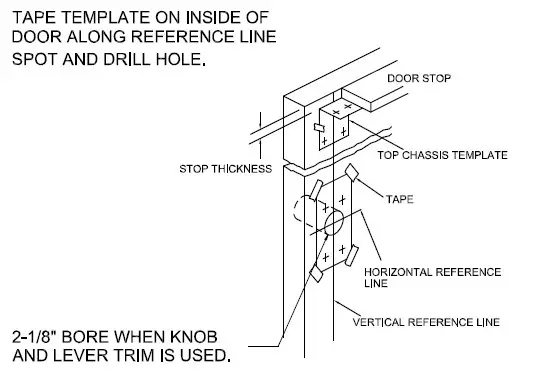

2. PREPARE DOOR

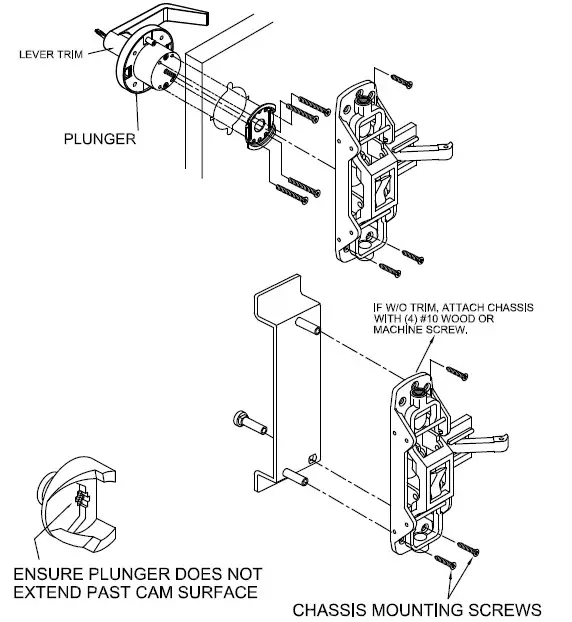

3. APPLY HARDWARE

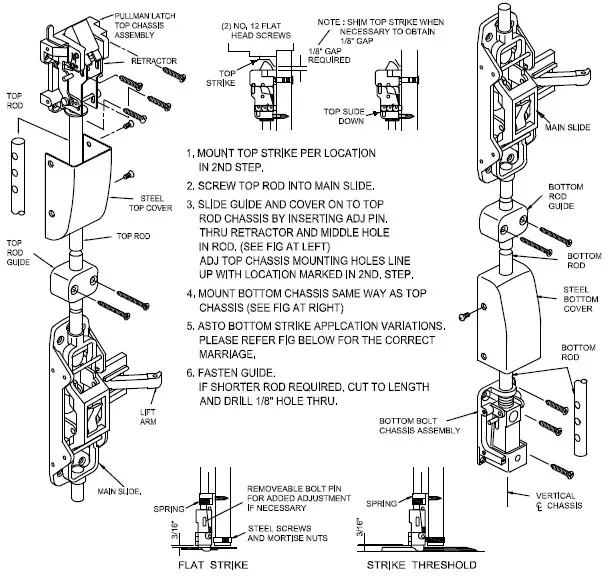

4. ATTACH TOP AND BOTTOM CHASSIS

5. APPLY RAIL ASSEMBLY

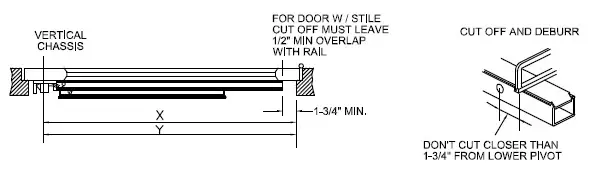

1.  CHECK THE SIZE OF DEVICE, IF CUTTING TO LENGTH IS REQUIRED.
2. DETERMINE CUT OFF LENGTH “X” BY SUBTRACTING 1-3/4″ FROM “Y”, MARK CUT OFF POINT ON MOUNTING RAIL.

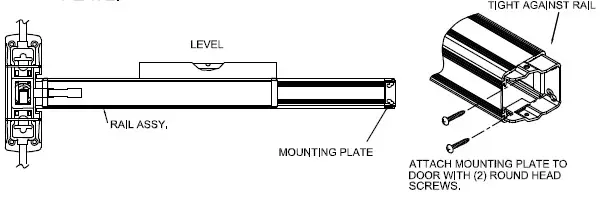

3. DEPRESS ARM INTO RAIL OPENING AND SLIDE RAIL ONTO CHASSIS. LEVEL RAIL AND FASTEN CHASSIS AND MOUNTING PLATE.

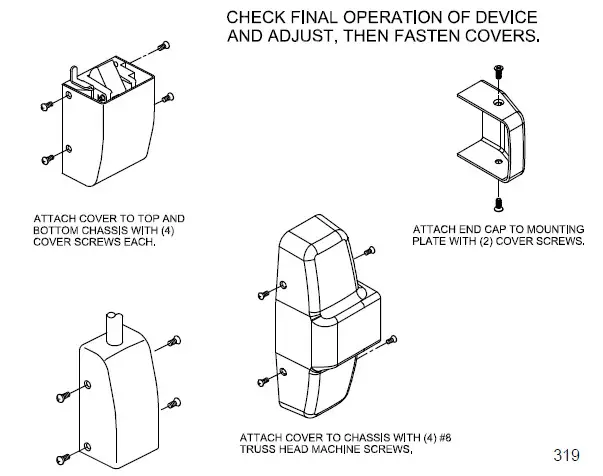

6. APPLY COVER
