N-98CVR Concealed Vertical ROD Exit Device
Instruction Manual

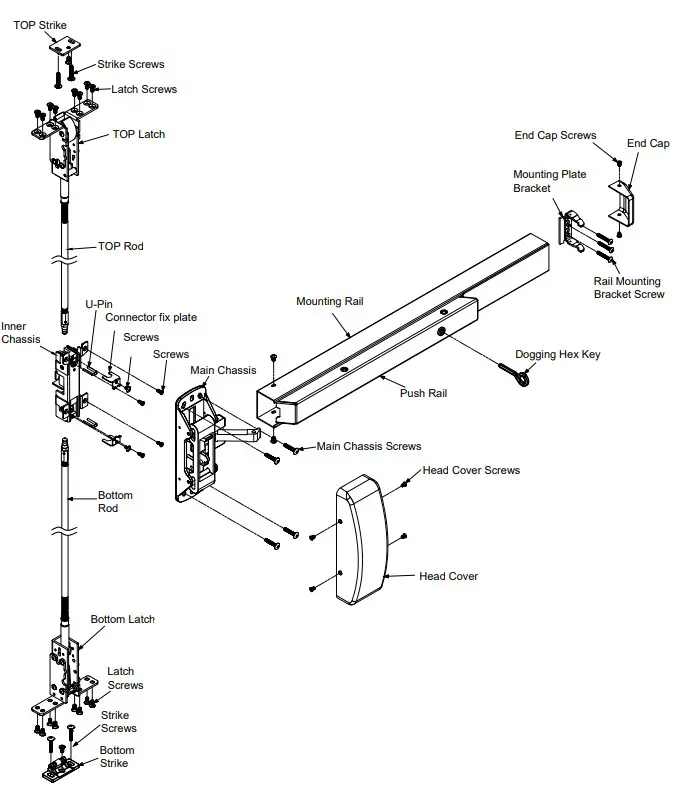

N-98CVR Concealed Vertical ROD Exit Device

TO CHANGE BOTTOM LATCH FOR BOTTOM STRIKE

1. Device factory pre-set.

2. -1.Unscrew and remove screw and L-shaped bracket. 2-2. The L-shaped bracket moves backward.

3. Move the L-shaped bracket back to the (A) screw hole and install and lock it.

4. Change Done.

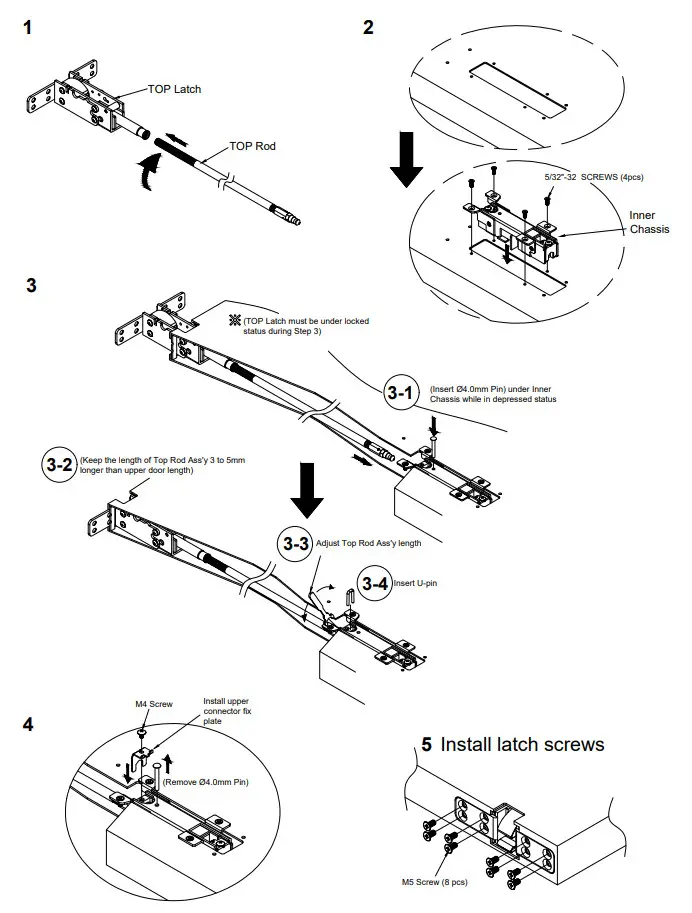

INSTALL INNER CHASSIS & TOP LATCH

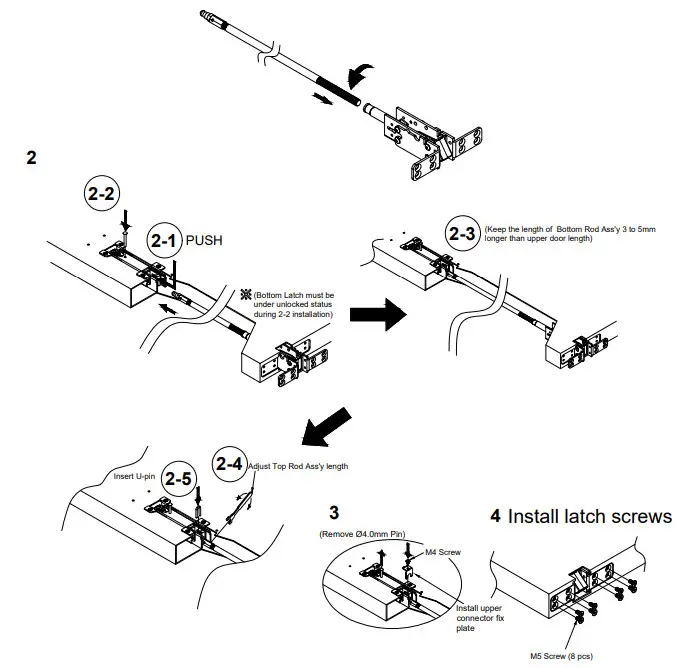

INSTALL BOTTOM LATCH (Skip this step if less Bottom Rod)
Attached Rod to Bottom latch

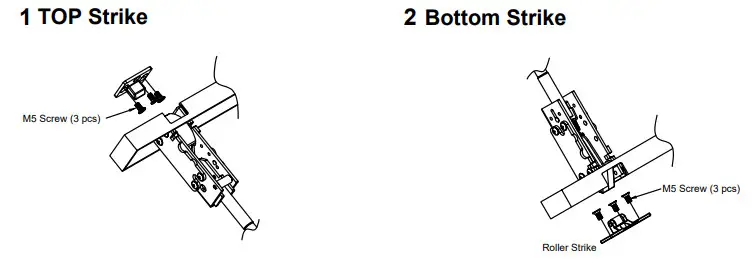

INSTALL TOP & BOTTOMSTRIKE (Please Follow TEMPLATE)

TO CHANGE HAND OF N-98CVR EXIT DEVICE

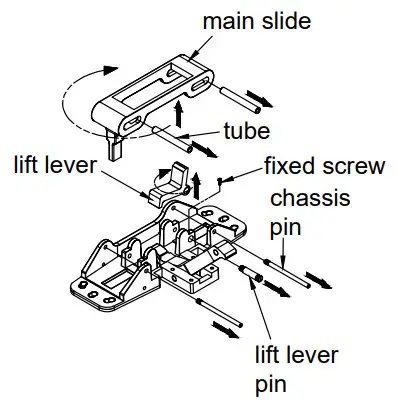

1. LHR	2-1. Remove chassis pin & main slide & tube. 2-2. Remove lift lever & lift lever pin. 2-3. Rotate 180° main slide & lift lever

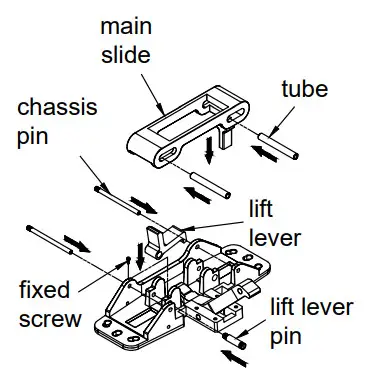

3-1. Reassemble lift lever at opposite side, as shown. 3-2. Replace main slide and chassis pin and lift lever pin. and fixed screw.	1. RHR Done.
