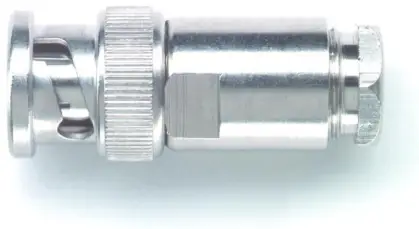

Triaxial Male 2 Lug Connector to Cable
Model 5056
Triaxial Male 2 Lug Connector to Cable
Features
- Fits Belden 9222 triaxial cable, 0.242″ O.D.
Materials
Body and Fittings: Brass, Tarnish Resistant Plating
Center Contacts: Male: Brass, Gold Plated
Outer Contact: Beryllium Copper, Gold Plated
Dielectric: PTFE
Specifications
Voltage: 500 Vrms
Impedance: 50 Ohm
Temperature: -65° C. (-85° F.) to +165° C. (+329° F.)
Frequency Range: DC to 500 MHz
Ordering Information
Model: 5056
Triaxial Male 2 Lug Connector for Belden 9222 Cable

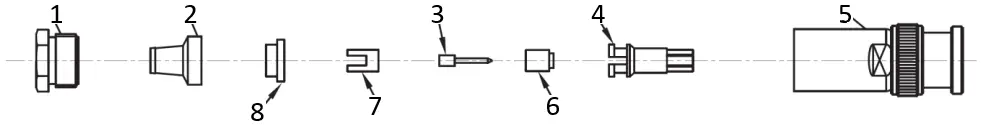

- CLAMP NUT
- BRAID CLAMP
- CENTER CONTACT
- OUTER CONTACT
- BODY
- INNER INSULATOR A
- INNER INSULATOR B
- INSULATOR
FIGURE #1
1.1 Strip cable per drawing lengths (mm).
1.2 Slide nut onto stripped cable.
1.3 Insert braid clamp and insulation on stripped cable.
FIGURE #2
2.1 Solder pin with center conductor then insert inner insulator A and B on the pin.
2.2 Peel back shield and insert outer contact.

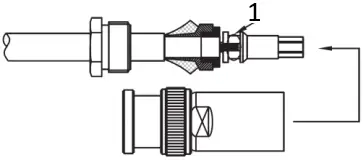

FIGURE #3
- SOLDER POINT
3.1 Position shield on solder point and solder outer contact to shield.
3.2 Insert body on assembled cable and fasten with wrench.
FIGURE #4

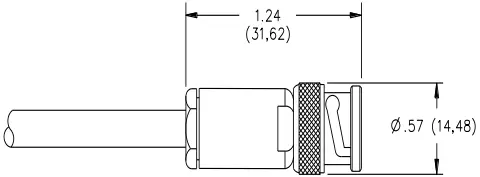

4.1 Completed assembly shown.
