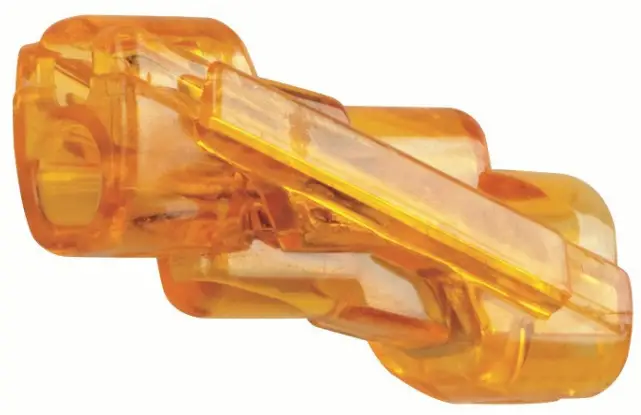

IDEAL 42 SpliceLine Wire Connectors

Model 42

•  Do not exceed the rating of these connectors.
•  Turn OFF the power before removing or installing connectors.
•  Wiring must comply with all applicable electrical regulations.
•  COPPER TO COPPER ONLY. Do not use on aluminum wire.
•  Incorrect use of these connectors can cause electrical fires, personal injury or death.
•  These connectors are suitable for solid and semi-rigid (<7 strands) conductors. They are not suitable or rated for use with flexible cable with >7 strands.

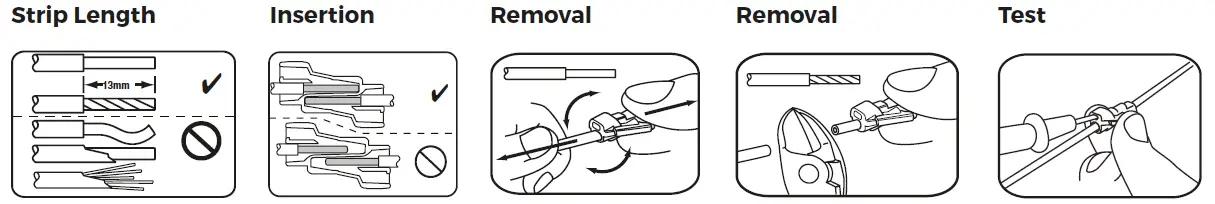

•  Strip wires back 13mm.
•  Grip the wire firmly and push the conductor into an open port.
• Use only one conductor per port.
•  Connectors are reusable on solid wires of the same wire gauge or larger. If reusing connectors, cut and re-strip conductors
•  In order to remove a wire, pull and twist the wire back and forth.
• DO NOT RE-USE connector on stranded wire. Strip Length Insertion Removal
