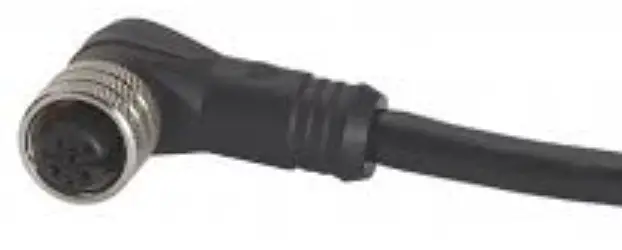

Danfoss Type M12 Female connector cable
SPECIFICATIONS
| Temperature rating: -40 – 80 °C / -40 – 176 °F | Wire connection size: 0.5 mm2 / 20 AWG | Jacket: SR – PVC Black | Standard: M12 standard: DS / EN 61076-2-101 UL: Style 2464 DIN VDE 0812 RoHS, CE, EAC, LLC CDC EURO TYSK Combustibility tests: VW-1 / CSA FT-1 |
| Waterproof rate: IP67 | Outer diameter: 7.5 mm / 0.3 in | Tape wrapped: Non-woven |

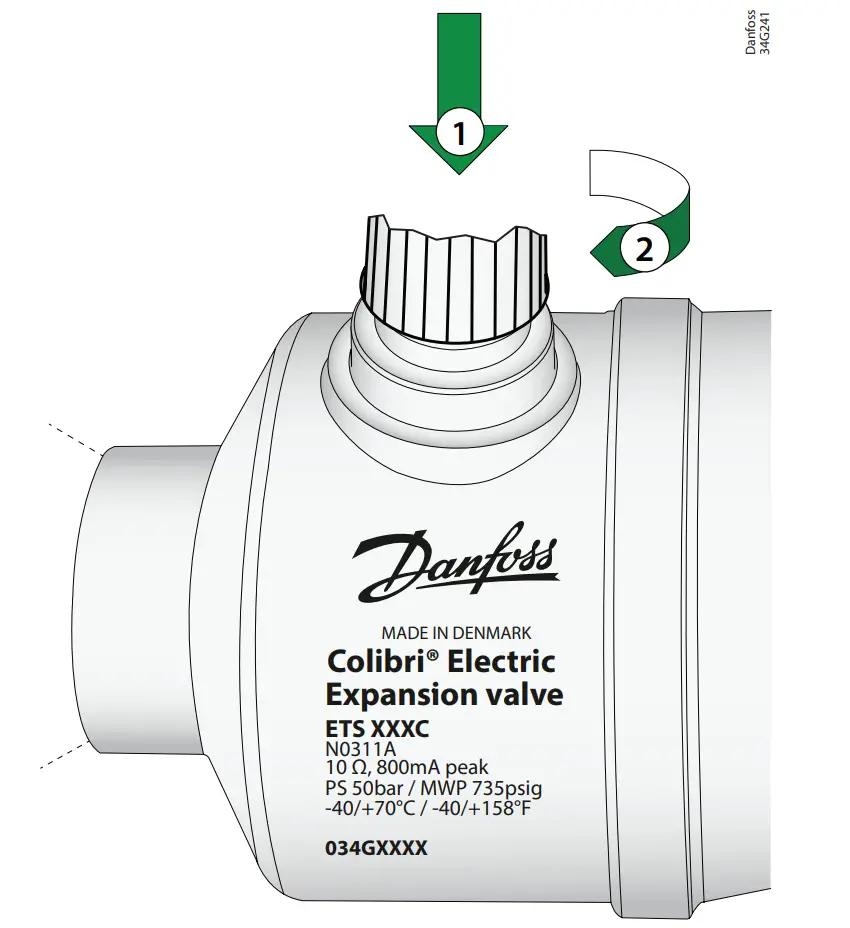

INSTALLATION

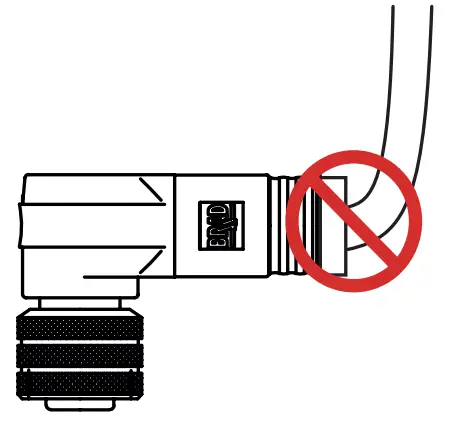

NOTE: For angle cable.

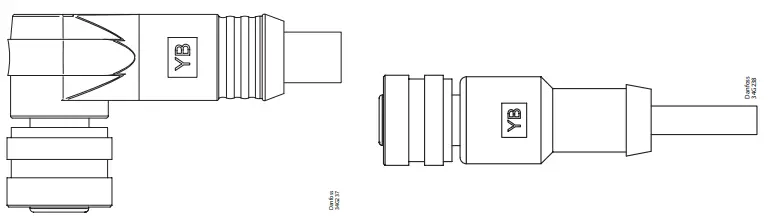

FRONT VIEW

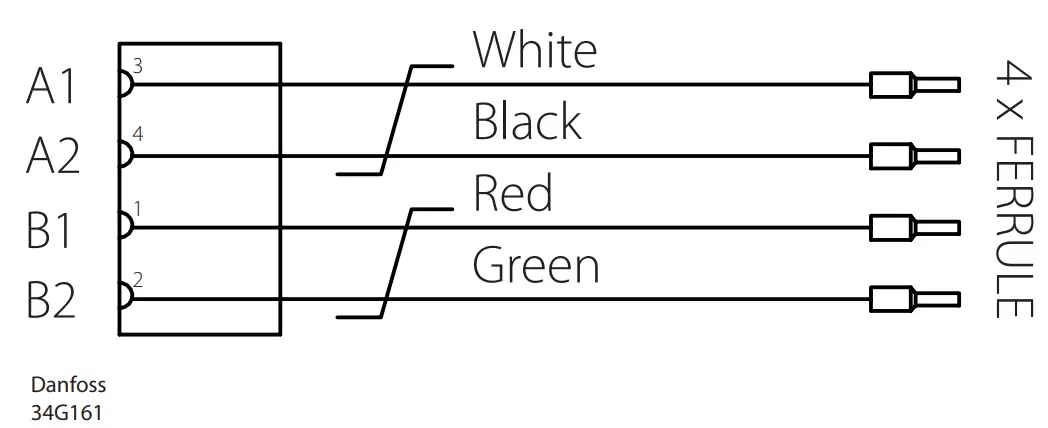

WIRING DIAGRAM
M12 connection to the ETS C / KVS C valves
© Danfoss | Climate Solutions | 2021.06
