34G238 Female connector cable Type M12
Installation Guide
Female connector cable
Type M12 special customized wiring
| Temperature rating: -40 – 80 °C/-40 – 176 °F | Wire connection size: 0.5 mm²/20 AWG | Jacket: SR – PVC Black | Standard: M12 standard: DS / EN 61076-2-101 UL: Style 2464 DIN VDE 0812 RoHS, CE, EAC, LLC CDC EURO TYSK Combustibility tests: VW-1/CSA FT-1 |
| Waterproof rate: IP67 | Outer diameter: 7.5 mm / 0.3 in | Tape wrapped: Non-woven |
FRONT VIEW

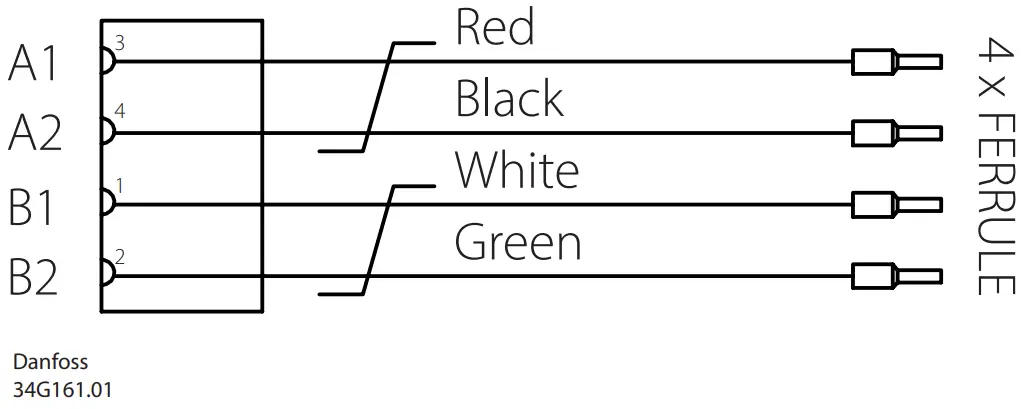

WIRING DIAGRAM
M12 connection to the ETS C/KVS C valves
Info for UK customers only: Danfoss Ltd. Oxford Road, UB9 4LH Denham, UK.
© Danfoss
Climate Solutions
2023.03
AN434619685525en-000102 | 1
034R9833
