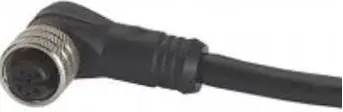

Danfoss M12 Female Connector Cable Installation Guide

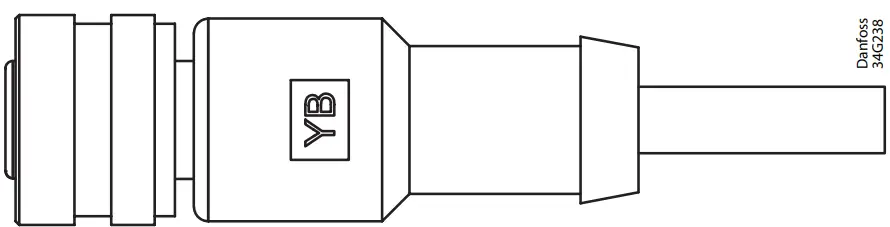

Type M12 special customized wiring
| Temperature rating: -40 – 80 °C / -40 – 176 °F | Wire connection size: 0.5 mm2 / 20 AWG | Jacket: SR – PVC Black | Standard: M12 standard: DS / EN 61076-2-101 UL: Style 2464 DIN VDE 0812 RoHS, CE, EAC, LLC CDC EURO TYSK Combustibility tests: VW-1 / CSA FT-1 |
| Waterproof rate: IP67 | Outer diameter: 7.5 mm / 0.3 in | Tape wrapped: Non-woven |

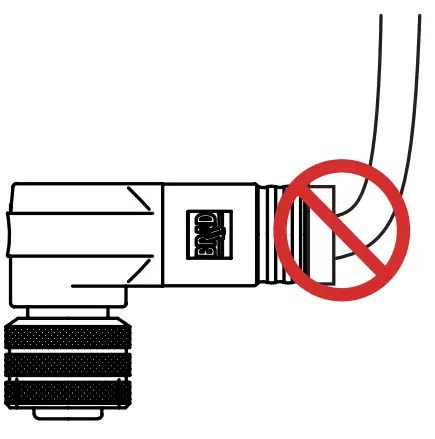

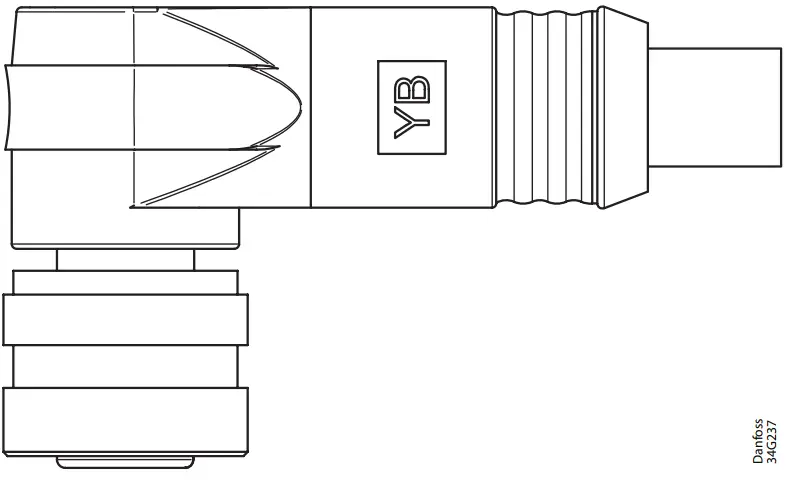

NOTE: For angle cable

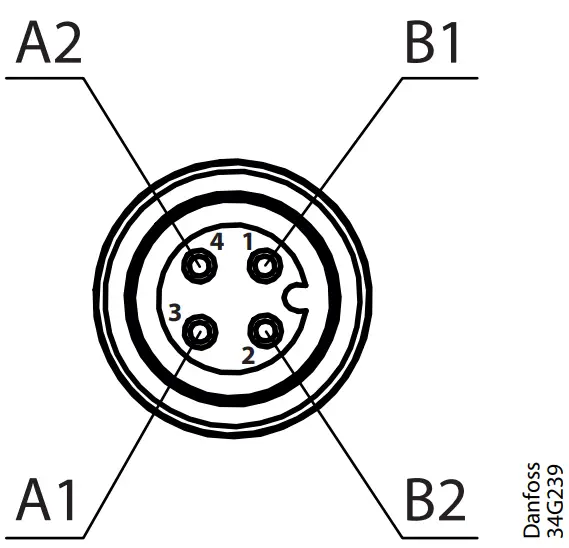

FRONT VIEW
WIRING DIAGRAM

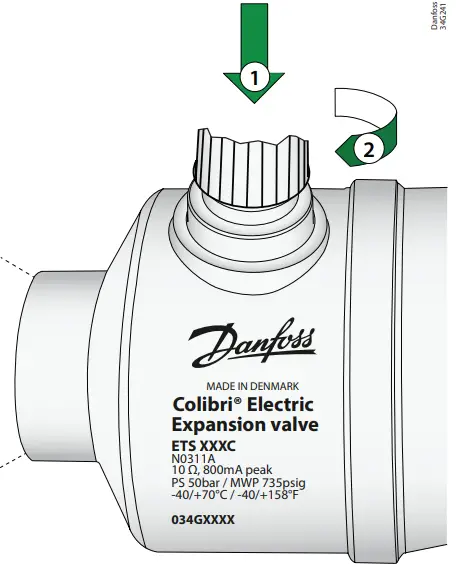

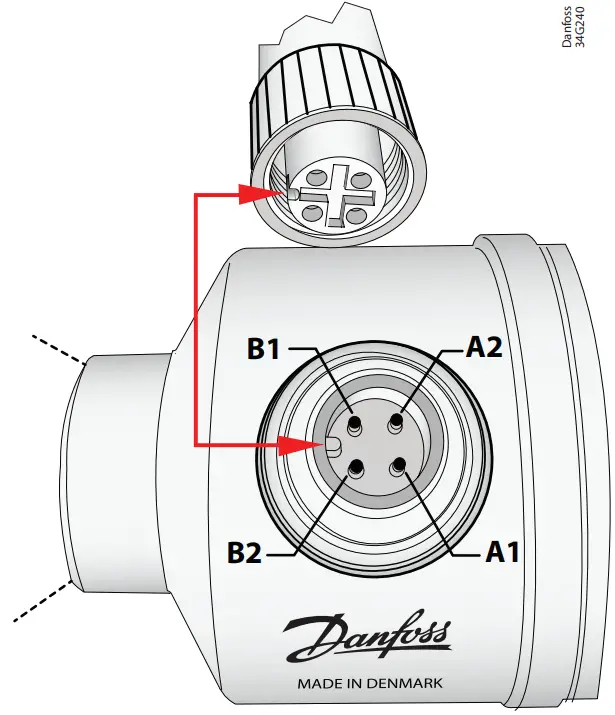

M12 connection to the ETS C / KVS C valves
