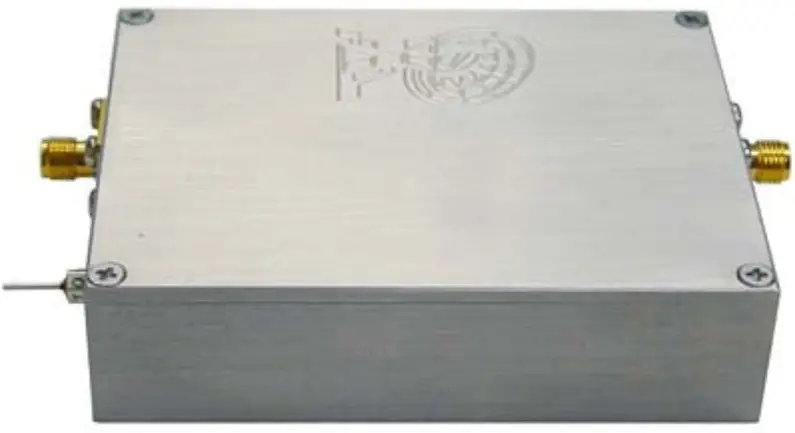

RF-LINKS ZHM-5659-15 High Power Broadband Amplifier Instructions
Introduction
his is a high power broadband amplifier for labs or testing purposes.
This amplifier is excellent for SUHF band 5600 MHz- 5900 MHz.
The gain is over 40 dB. The maximum power is 15 W. Minimum required driving power is only 1 mW.
This amplifier is recommended for testing, labs, Space research, Mil applications etc
- Dimensions: 3.25″ X 2.5″ X 0.8″
15 W OUT WITH ONLY 1 mW DRIVING!
FEATURES
- High Output Power: 34.0dBm(typ.)
- High Linear Gain: 41.0dB(typ.)
- Low: VSWR
- Broad Band: 5.6～5.9 GHz
- Impedance Matched: 50Ω
Technical Specifications
| BATTERY POWER | 12 V-17 V |
| RF POWER | 15 W/50 ohms |
| CURRENT CONSUMPTION | 2.8 A MAX |
| RF IN/OUT | 50 ohms |
| INPUT POWER | 1 mW |
| WIDEBAND FREQ. RANGE: | 5600 MHz- 5900 MHz |
| HIGH GAIN | 41 dB / 5800 MHz |
| SIZE: | 3.25″ X 2.5″ X 0.8″ |
| CLASS | LINEAR |
