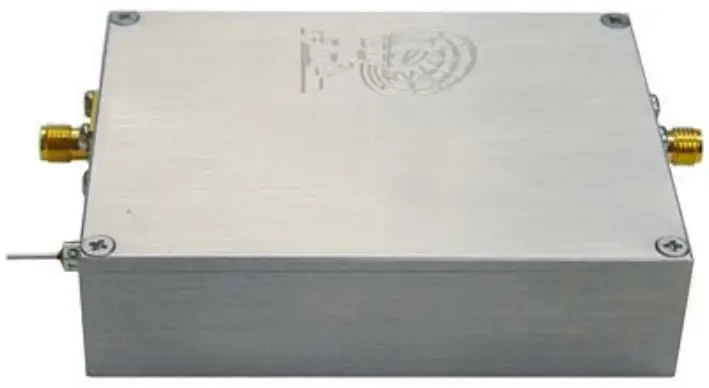

RF-LINKS ZHM-5659-10 Wideband Microwave Amplifier Instructions
Introduction
This is a high power broadband amplifier for labs or testing purposes.
This amplifier is excellent for SUHF band 5600 MHz- 5900 MHz. The gain is over 36 dB.
The maximum power is 10 W.
Minimum required driving power is only 1-5 mW.
This amplifier is recommended for testing, labs, Space research, Mil applications etc.
- Dimensions: 3.25″ X 2.5″ X 0.8″
10 W OUT WITH ONLY 1 mW DRIVING!
FEATURES
- High Output Power: 36.0dBm(typ.)
- High Linear Gain: 28.0dB(typ.)
- Low: VSWR
- Broad Band: 5.6～5.9GHz
- Impedance Matched: 50Ω
Technical Specifications
| BATTERY POWER | 12 V-17 V |
| RF POWER | 10 W/50 ohms |
| CURRENT CONSUMPTION | 1.6 A |
| RF IN/OUT | 50 ohms |
| INPUT POWER | 1-5 mW |
| WIDEBAND FREQ. RANGE: | 5600 MHz- 5900 MHz |
| HIGH GAIN | 28 dB / 5800 MHz |
| SIZE: | 3.25″ X 2.5″ X 0.8″ |
| CLASS | LINEAR AB |
FOR US GOVERNMENT AGENCIES ONLY!
