LNAMP-7G
SPECIAL SUPER AMPLIFIER
FOR 10 -7000 MHz RECEIVERS

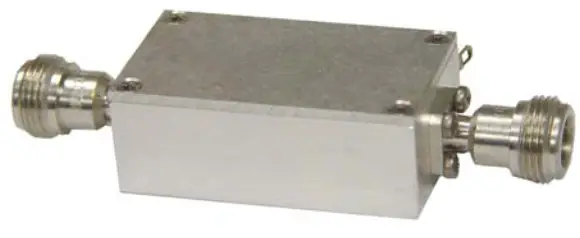

LNAMP-7G Special Super Low-Noise Amplifier
This is an excellent small amplifier for 10 MHz- 7.2 GHz receivers (not for transmitters). You can connect this amplifier to 10 MHz – 7.2 GHz equipment. This SUPER WIDEBAND amplifier will give you an extra 23 dB gain in 10 MHz- 7.2 GHz band. The output connector is SMA or N type
Applications:
- Analog and digital transmission systems
- Laboratory and test equipment
- Radar receivers
Technical Specifications
| Operating Frequency: | 10 MHz- 7000 MHz |
| DC Voltage: | 12 -15 V |
| Gain | 23 dB |
| Input Power | Max. 2 mW |
| Noise factor: | < 5 dB |
| Maximum range: | N/A |
| Out IP3: | typ. +25 dBm @ 1300 MHz |
| Current consumption: | 90 mA |
| Antenna Connector: | SMA |
| Impedance: | 50 ohms |
| Temperature Range: | 55 C |
| Dimensions: | 2.0”x 1.0” x 0.8” |
| Weight: | 65 grams |
| Band-pass filter: | Built-in |
| Protection: | Reverse polarity |
