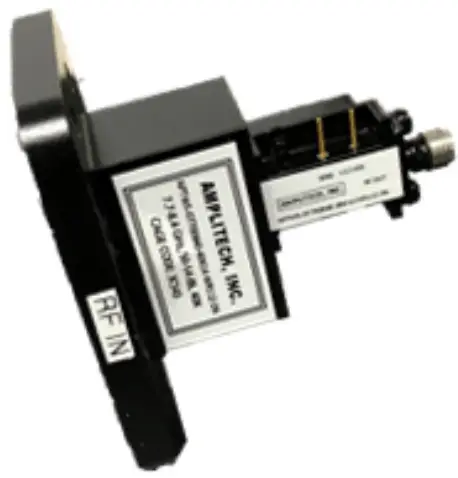

AmpliTech APTW5-10701280-40K10-WR75-D6 Ku-Band Waveguide Low Noise SATCOM Amplifier
Key Parameters
Parameter | Unit | Minimum | Typical | Maximum | Notes |
| Frequency | GHz | 10.70 | – | 12.8 | Customizable |
Gain | dB | 42 | – | Customizable | |
| Gain Flatness | dB | – | ±0.5 | ±1.0 | Customizable |
In/Out VSWR | :1 | – | 1.3 | 1.5 | Customizable |
| Output P1dB | dBm | +10 | +15 | – | Customizable |
DC Power | V@mA | +12 | +15 | +16 | @190 mA |
| Noise Figure | K | 35 | 40 | @23OC | |
Outline/Package | – | – | – | – | WR75+D6 |
Absolute Maximum Ratings*
Parameters | Unit | Minimum | Maximum | Notes |
| Operating Temperature (Case) | °C | -40 | +70 | 95% humidity, non- condensing |
Storage Temperature (Case) | °C | -54 | +85 | 95% humidity, non- condensing |
RF Input Power | dBm | – | +16 | CW |
Die Junction Temp (Tj) | °C | – | +150 | For GaAs devices |
| Positive Supply Voltage | V | – | +16 | At +V DC terminal |
Negative Voltage | V | – | -10 | Reverse Voltage |
Product Features
- Frequency Range = 10.7-12.8 GHz
- WR75 waveguide input
- 40K Noise Temperature Max
- 35K Noise Temperature Typ
- Typical Gain 42 dB
- Gain Flatness < ± 0.5 dB type
- Internal DC Regulator
- Reverse Voltage Protection
- State-of-the-Art PHEMT Technology
- MIL-883, MIL-45208 construction and reliability
- Compact Size / Weatherproof package
- No isolator for best performance
Product Description
The product is a high gain low noise amplifier with superb flatness and excellent Insertion Loss & Return Loss due to our unique non-isolator design. It’s primary use for In-Flight Entertainment, and SATCOM applications such as military and civil Satellite
Downlinks. This particular frequency range is also widely used for Direct Broadcasting of Radio and TV in Europe.
Application
- Airline In-Flight Entertainment
- Radar
- Satellite Communication (SATCOM)
- Military Surveillance
- Test Equipment
- Cellular
| * Stresses above those listed under “Absolute Maximum Rating” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. All STANDARD units are packaged in Aluminum housings that are layered with electroless Nickel and then plated with Gold to eliminate contamination of other adjacent electronic components. |

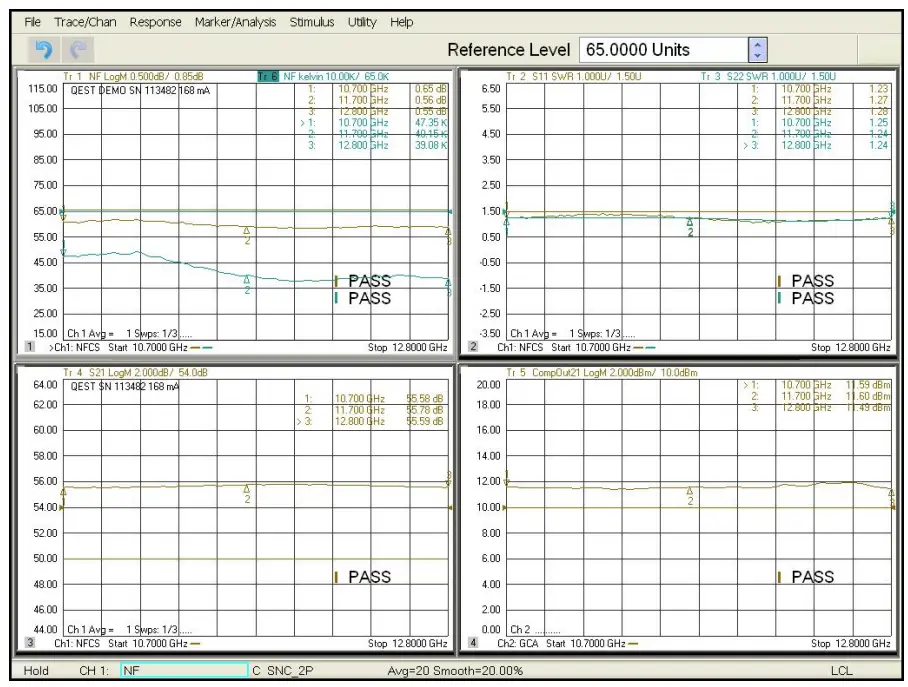

Typical Measured Data
Outline Drawing
