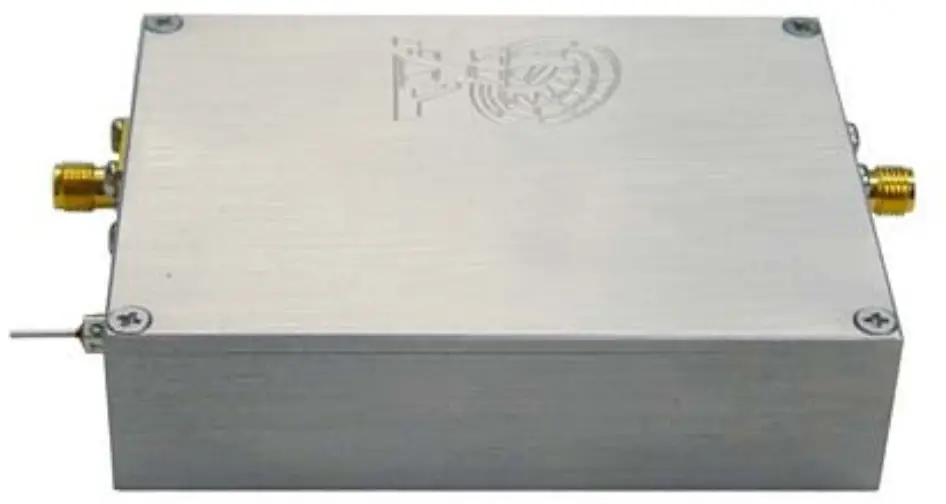

RF-LINKS ZHM-5659-5 5 W Wideband Microwave Amplifier Instructions
Introduction
This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 5600 MHz- 5900 MHz. The gain is over 36 dB. The maximum power is 5 W. Minimum required driving power is only 1 mW. This amplifier is recommended for testing, labs, Space research, Mil applications etc.
Dimensions: 3.25″ X 2.5″ X 0.8″
5 W OUT WITH ONLY 1 mW DRIVING!
FEATURES
- High Output Power: 36.0dBm(typ.)
- High Linear Gain: 28.0dB(typ.)
- Low VSWR
- Broad Band: 5.6～5.9GHz
- Impedance Matched 50Ω
FOR US GOVERNMENT AGENCIES ONLY!
| Technical Specifications | |
| BATTERY POWER | 12 V-17 V |
| RF POWER | 5 W/50 ohms |
| CURRENT CONSUMPTION | 1.6 A |
| RF IN/OUT | 50 ohms |
| INPUT POWER | 1 mW |
| WIDEBAND FREQ. RANGE: | 5600 MHz- 5900 MHz |
| HIGH GAIN | 36 dB / 5800 MHz |
| SIZE: | 3.25″ X 2.5″ X 0.8″ |
| CLASS | LINEAR AB |
