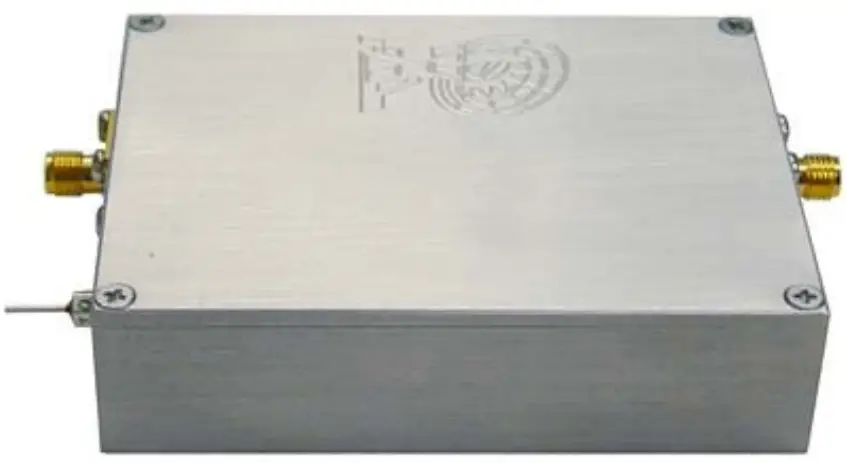

RF-LINKS ZHM-260G-5 High Power Broadband Amplifier Instructions
Introduction
This is a high power broadband amplifier for labs or testing purposes.
This amplifier is excellent for SUHF band 10 MHz – 6000 MHz.
The gain is over 40 dB. The maximum power is 5 W.
Minimum required driving power is only 1 mW. This amplifier is recommended for Space research, Mil applications etc.
- Dimensions: 3.25 ” X 2.5 ” X 0.8 “.
5 W OUT WITH ONLY 1 mW DRIVING!
Applications
Wideband and narrowband defense and commercial communication systems.
- General Purpose RF Power
- Jammers
- Radar
- Professional radio systems
- WiMAX
- Wideband amplifiers
- Cellular infrastructure
Product Features
- Frequency: DC to 6 GHz
- Linear Gain: >39 dB at 6.0 GHz
- Operating Voltage: 28 V
- Output Power (P3dB): >6 W at 6 GHz
- Lead-free and RoHS compliant
- Low thermal resistance package
Specifications
| Sym Parameter Value | Sym Parameter Value | Sym Parameter Value |
| V+ | Positive Supply Value2 | 28 |
| I | Positive Supply Current | 0.8 A |
| PD | Power Dissipation | 10W |
| TCH | Operating Channel Temperature2 | 200°C |
Electrical Specifications
Recommended operating conditions apply unless otherwise specified: TA= +25 °C
RF Characteristics
| Characteristics | Symbol | Units | Min. | Typ. | Max. |
| Linear Gain | GLIN | dB | 39 | 15.9 | |
| Output Power at 3 dB Gain Compression | P3dB | W | 4.5 | 5 | |
| Drain Efficiency at 3 dB Gain Compression | DE3dB | % | 55 | 58 | |
| Power-Added Efficiency at 3 dB Gain Compression | PAE3dB | % | 50 | 53 | |
| Gain at 3 dB Compression | G3dB | dB | 38 | 13.9 | |
| Impedance Mismatch Ruggedness | VSWR | 10:1 | |||
FOR US GOVERNMENT AGENCIES ONLY!
