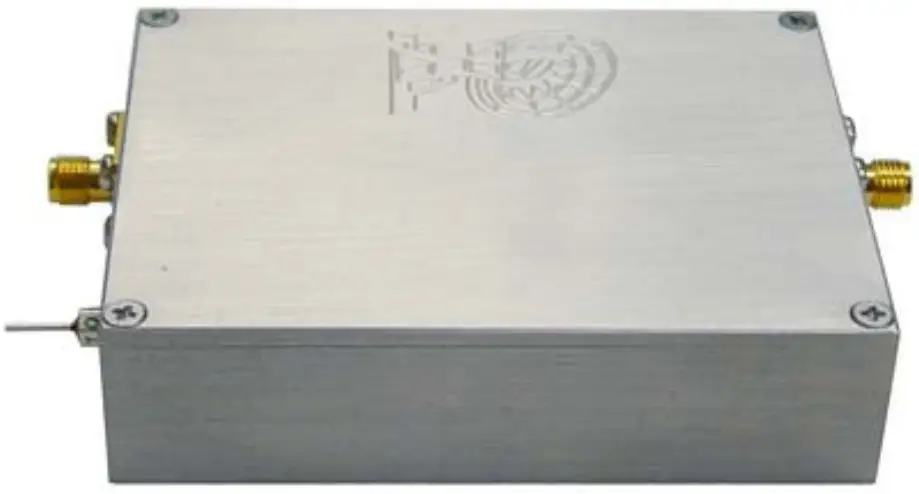

RF-LINKS ZHM-6G2 Two Stage MMIC Power Amplifier Instructions
Introduction
The ZHM-6G2 is a two stage MMIC power amplifier designed for broadband high power wideband frequency applications.
It works from DC – 6 GHz. It can be used as either a driver or an output stage amplifier.
This device is fully matched input and output to 50 Ω which eliminates any sensitive external RF tuning components.
The ZHM-6G2 is fabricated using a high reliability pHEMT process, to realize good power added efficiency and gain.
The pHEMT process features full passivation for high performance and reliability.
FOR US GOVERNMENT AGENCIES ONLY!
Applications
Wideband and narrowband defense and commercial communication systems.
- General Purpose RF Power
- Jammers
- Radar
- Professional radio systems
- WiMAX
- Wideband amplifiers
- Cellular infrastructure
Product Features
- Frequency: DC to 6 GHz
- Linear Gain: >16 dB at 6.0 GHz
- Operating Voltage: 28 V
- Output Power (P3dB): >6 W at 6 GHz
- Lead-free and RoHS compliant
- Low thermal resistance package
Specifications
| Sym Parameter Value | Sym Parameter Value | Sym Parameter Value |
| V+ | Positive Supply Value2 | 28 |
| I | Positive Supply Current | 0.8 A |
| PD | Power Dissipation | 9W |
| TCH | Operating Channel Temperature2 | 200°C |
Electrical Specifications
Recommended operating conditions apply unless otherwise specified: TA= +25 °C
RF Characteristics
| Characteristics | Symbol | Units | Min. | Typ. | Max. |
| Linear Gain | GLIN | dB | 15.5 | 15.9 | |
| Output Power at 3 dB Gain Compression | P3dB | W | 7.9 | 10.0 | |
| Drain Efficiency at 3 dB Gain Compression | DE3dB | % | 55 | 58 | |
| Power-Added Efficiency at 3 dB Gain Compression | PAE3dB | % | 50 | 53 | |
| Gain at 3 dB Compression | G3dB | dB | 12.5 | 13.9 | |
| Impedance Mismatch Ruggedness | VSWR | 10:1 | |||

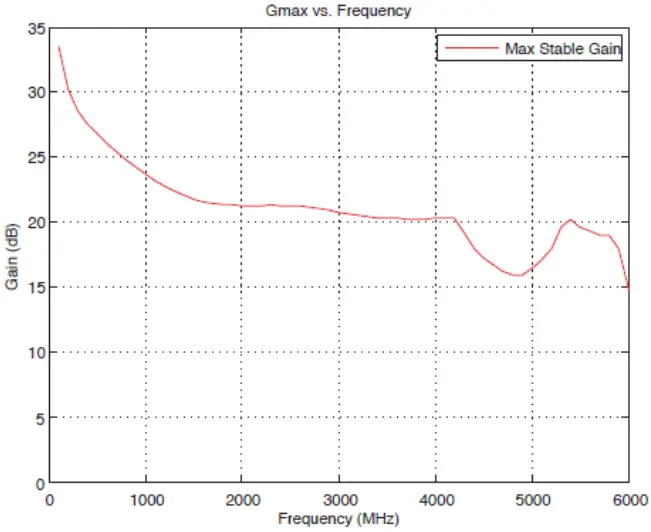

Small-Signal Gain
Maximum Stable Gain VDS=28V, IDQ=50 mA

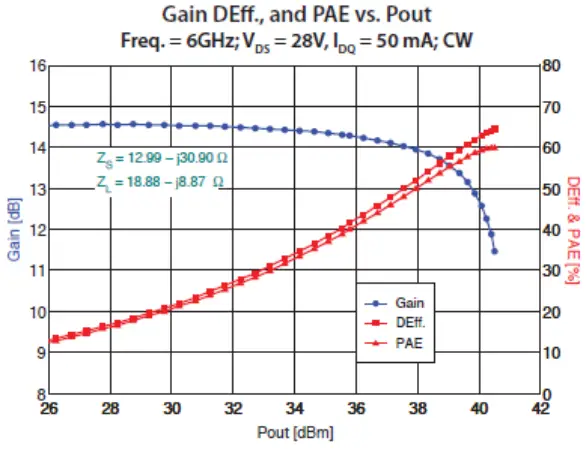

Typical Performance: Gain, Efficiency and Output Power

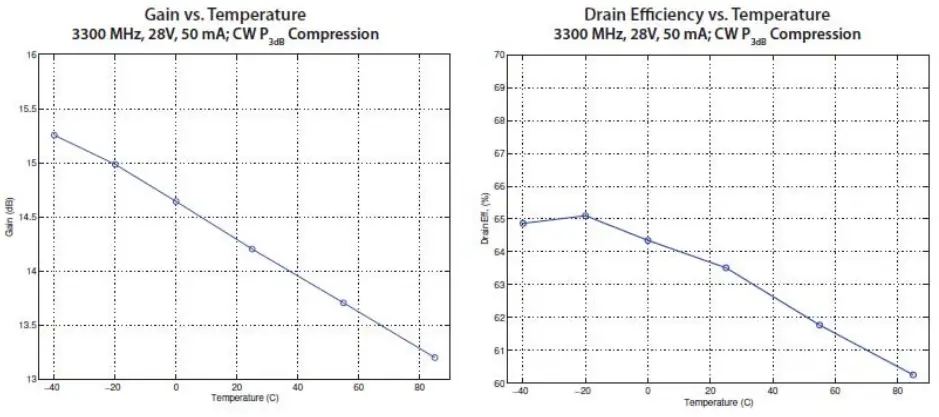

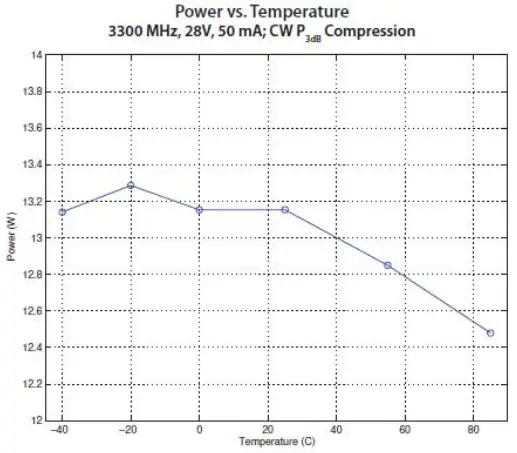

Performance over Temperature: Gain, Efficiency and Output Power
