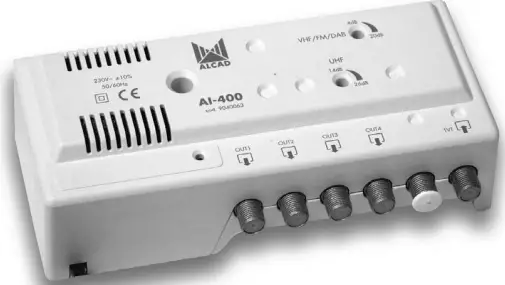

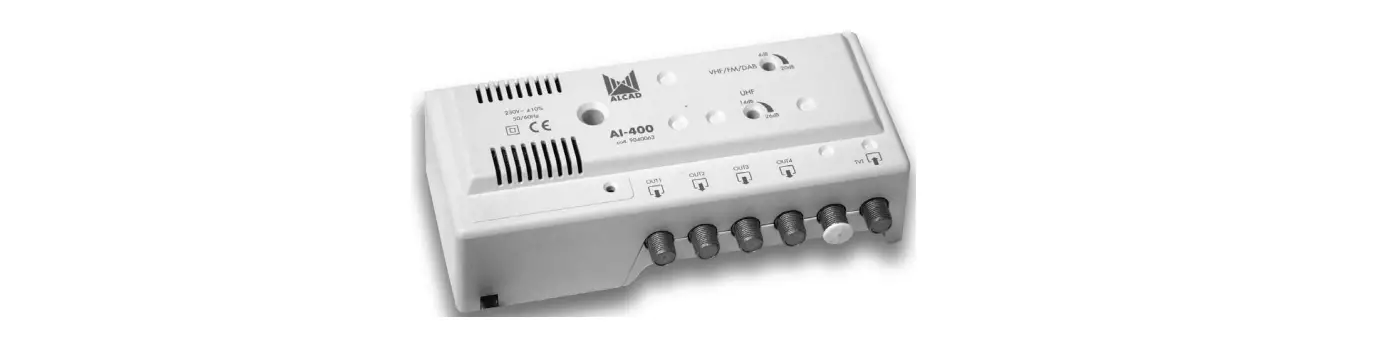

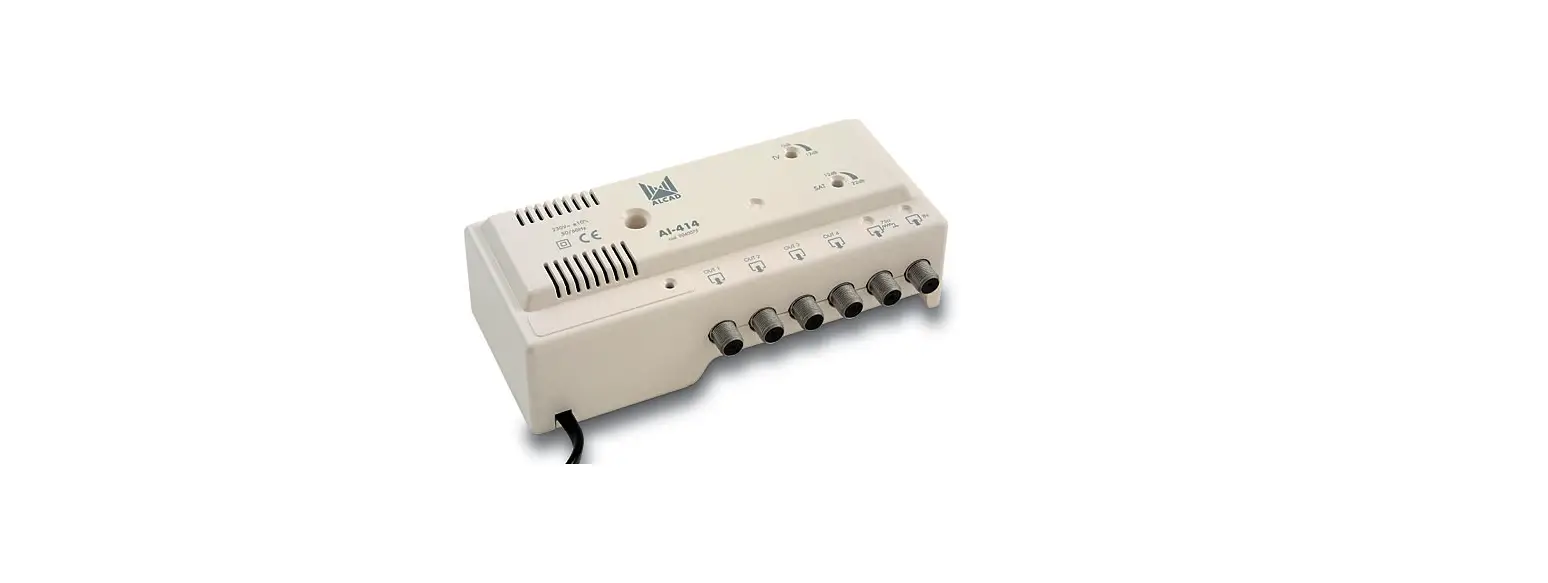

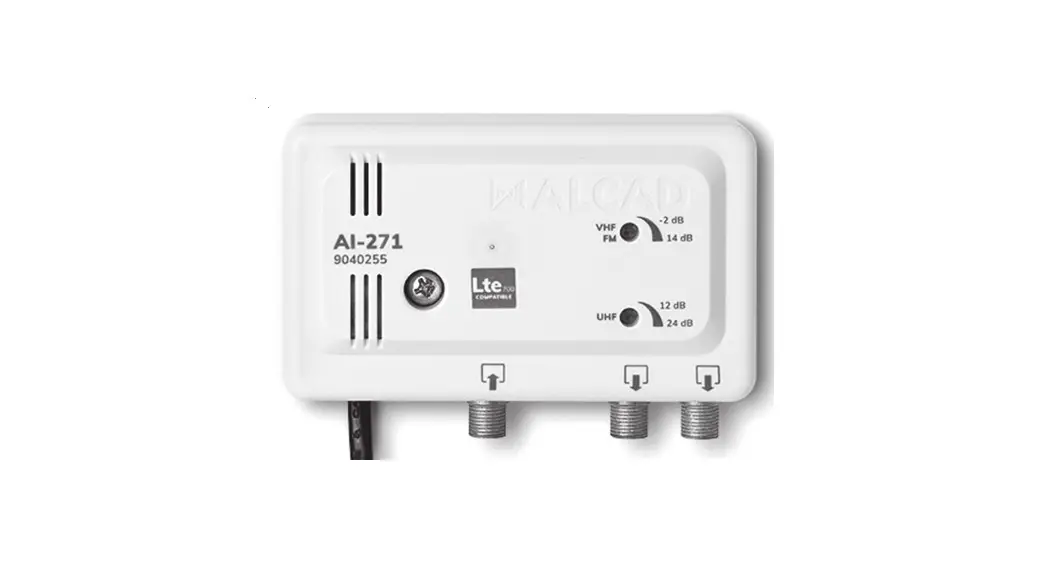

ALCAD 904 Series Indoor Multiband Amplifier
| CODE | 9040063 | ||
| MODEL | AI-400 | ||
| Outputs | 4 | ||
| Frequency range | Band | VHF | UHF |
| MHz | 47 -318 | 470 – 862 | |
| Gain | dB | 20 ±1,0 | 28 ±2,0 |
| Gain adjustment | dB V | 16 | 12 |
| Output level | dB V | 102 DIN 45004B 99 (IMD3 -60 dB) 86 (IMD2 -60 dB) | |
| Output level | dB V | 86 CTB 81 CSO 82 XMOD | |
| Noise figure | dB | 4,2 ±0,2 | 3,3 ±0,3 |
| Return loss
| dB | 10 | |
| Mains voltage | V | 230±10%(1) 50/60 Hz | |
| VA | 6 | ||
| Operating temperature | o C | -10..+65 | |
| Protection index
| IP 20 | ||
Data published in compliance with the detinitions and measurement methods of the following standards: EN 50083-3, EN 50083-4 and EN 50083-5
| CODE | 9040060 | 9040061 | |||
| MODEL | CA-210 | CA-215 | |||
| Outputs | 2 | ||||
| Frequency range | Band | VHF | UHF | VHF | UHF |
| MHz | 40-400 | 470 – 862 | 40-400 | 470 – 862 | |
| Gain | dB | 24 ±2,0 | 25 ±2,0 | 24 ±2,0 | 25 ±2,0 |
| Gain adjustment | dB V | 16 | 12 | 16 | 12 |
| Output level | dB V | 102 DIN 45004B 99 (IMD3 -60 dB) 86 (IMD2 -60 dB) | |||
| Output level | dB V | 86 CTB 80 CSO 89 XMOD | |||
| Noise figure | dB | <4,5 | <3,0 | <4,5 | <3,0 |
| Return loss
| dB | 10 | |||
| Output voltage | V | 24 | 12 | ||
| mA | 55 | 60 | |||
| Mains voltage | V | 230±10%(1) 50/60 Hz | |||
| VA | 20 | ||||
| Operating temperature | o C | -5..+60 | |||
| Protection index
| IP 20 | ||||
| CODE | 9040051 | 9040052 | |||||||
| MODEL | AI-221 | AI-223 | |||||||
| Outputs | 2 | ||||||||
| Frequency range | Band | RETURN | VHF/UHF | RETURN | VHF/UHF | ||||
| MHz | 0-30 | 47- 862 | 0-65 | 86- 862 | |||||
| Gain | dB | -5,5 ±1,0 | 25 ±2,0 | -4,5 ±1,0 | 25 ±2,0 | ||||
| Gain adjustment | MHz | – | 47 | 862 | – | 86 | 862 | ||
| dB | – | 20 | 10 | – | 15 | 10 | |||
| Output level | dB V | 105 102 90 | DIN 45004B (IMD3 -60 dB) (IMD2 -60 dB) | ||||||
| Output level | dB V | 89 84 90 | CTB CSO XMOD | ||||||
| Noise figure | dB | 6 | |||||||
| Return loss
| dB | 10 | |||||||
| Mains voltage | V | 230±10%(1) | 50/60 Hz | ||||||
| VA | 5,5 | ||||||||
| Operating temperature | o C | -5..+60 | |||||||
| Protection index
| IP 20 | ||||||||

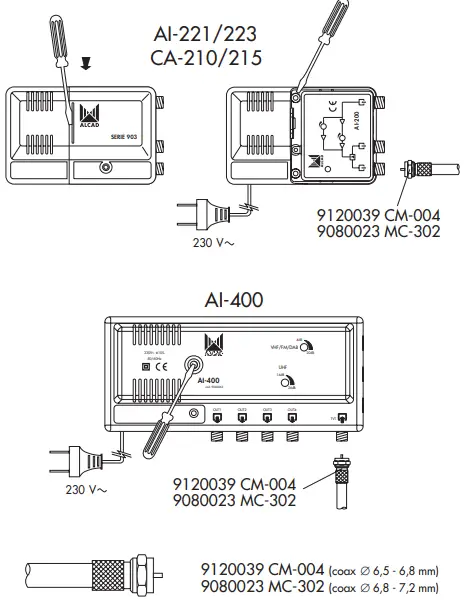

HOW TO FIX THE AMPLIFIER

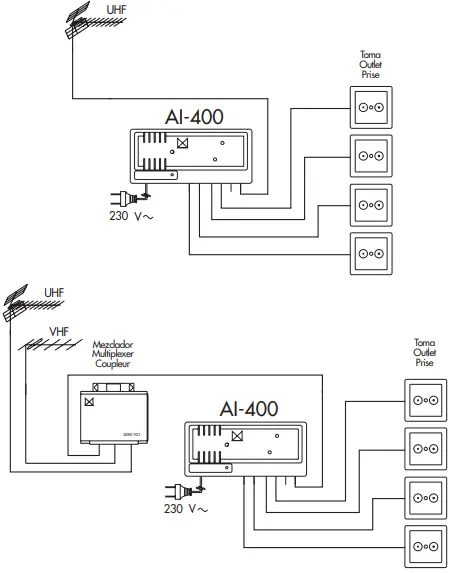

INDIVIDUAL INSTALLATION

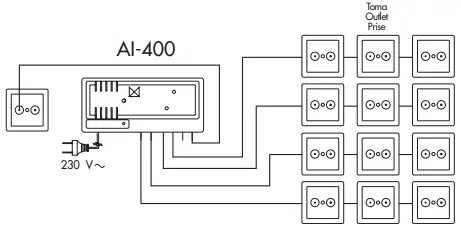

INSTALLATION INSIDE THE APARTMENT

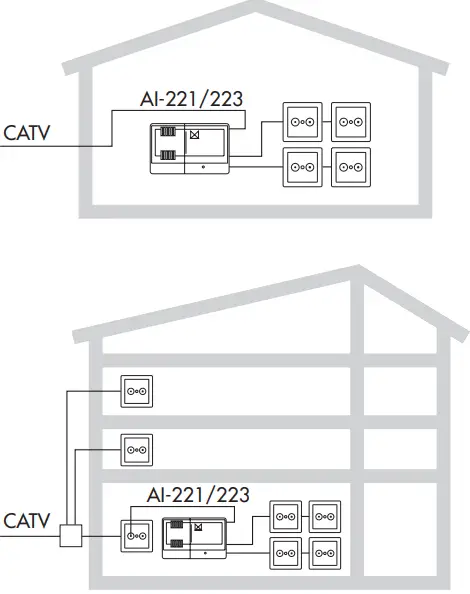

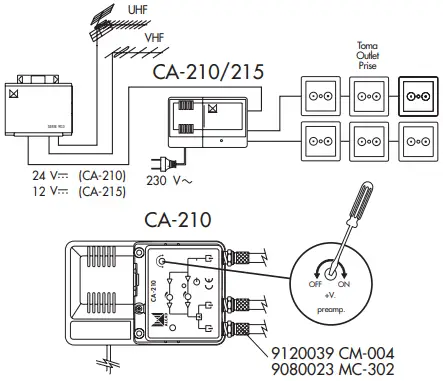

CATV INSTALLATION

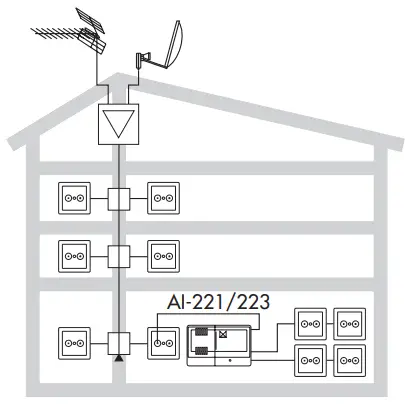

COLLECTIVE INSTALLATION WITH S CHANNELS
Safety Instructions
- Do not place the equipment where water can drip or splash onto it.
- Do not place objects containing liquid, such as glasses, on the equipment.
- Do not place sources of naked flame, such as burning candles, on the equipment.
- Do not block the ventilation slots of the equipment with objects such as newspapers, curtains, etc.
- When installing the equipment, leave some free space around it to provide adequate ventilation.
- Install the equipment in such a way that the mains supply plug or the connector of the equipment can be easily reached
ALCAD Electronics, S.L.
Pol. Ind. Arreche-Ugalde, 1
Apdo. 455 | 20305 IRUN – Spain
Tel. (+34) 943 63 96 60
[email protected]
