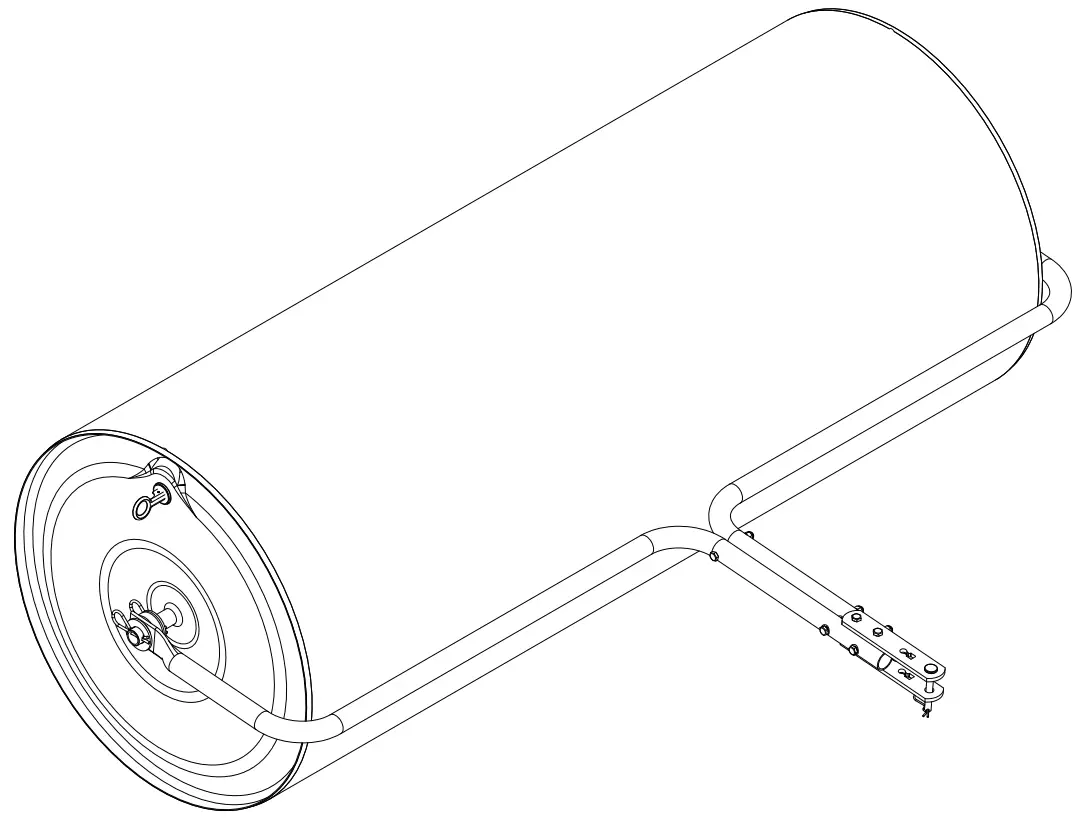

Agri-fab 24 X 60" Steel Tow Roller User Manual

4 X 60″ Steel Tow Roller
User Manual

SPECIFICATIONS

Roller Drum: 24″ Dia. x 60″ Wide, Welded Steel
Tow Hitch: Std. Pin Type – 1/2″ Hole
Unit Weight:
Empty: Approximately 135 Lbs.
Filled: Up to 1150 lbs. filled with water

SAFETY

1. Read and follow all instructions in this manual before attempting to assemble or operate this equipment. Failure to comply with these instructions may result in personal injury. Keep this manual in a safe place for future reference and for ordering replacement parts.
2. Read the vehicle owner’s manual and vehicle safe operation rules before using this equipment.
3. Do not allow anyone to operate this equipment without proper instructions.
4. Keep the area of operation clear of all persons and animals.
5. Check all bolts and fasteners for tightness before each use to insure safe operation.
6. Always wear safety glasses and other personal protective equipment referenced in your vehicle’s owner’s manual when operating and maintaining this equipment.
7. Do not operate this equipment while in an impaired state.
8. When using this equipment, start with the vehicle at a low speed increasing speed only as conditions permit. Do not exceed 3mph (5km/h).

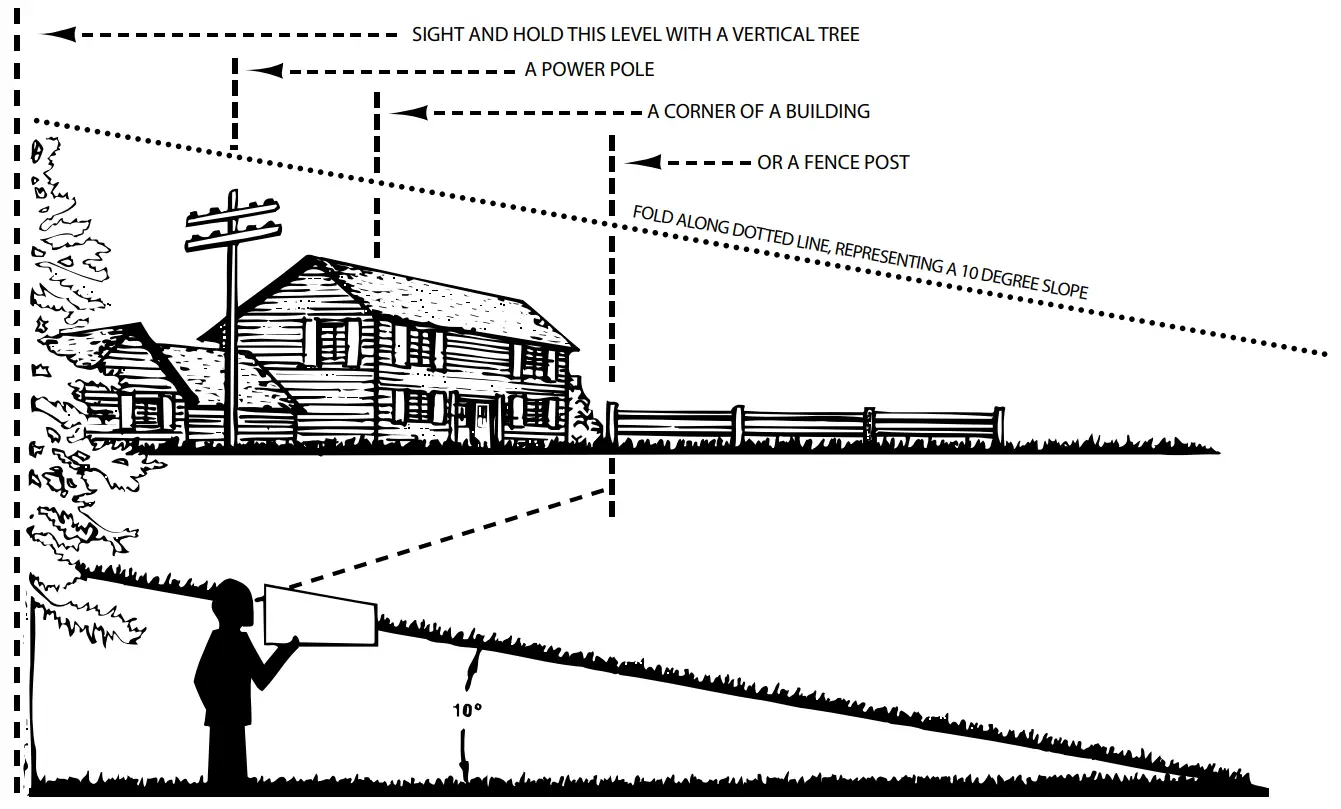

9. Operate this equipment at reduced speed on rough terrain, along creeks and ditches, and on slopes to prevent loss of control. Refer to the slope guide above for safe operating procedures.
10. Vehicle braking and stability are affected by the addition of this equipment. Do not exceed the vehicle’s towing capacity referenced in your vehicle’s owner’s manual.
11. Do not attempt to manually push or pull the roller while it is full. Attempting to do so could result in personal injury.
12. Drain roller before freezing temperatures to avoid damage.

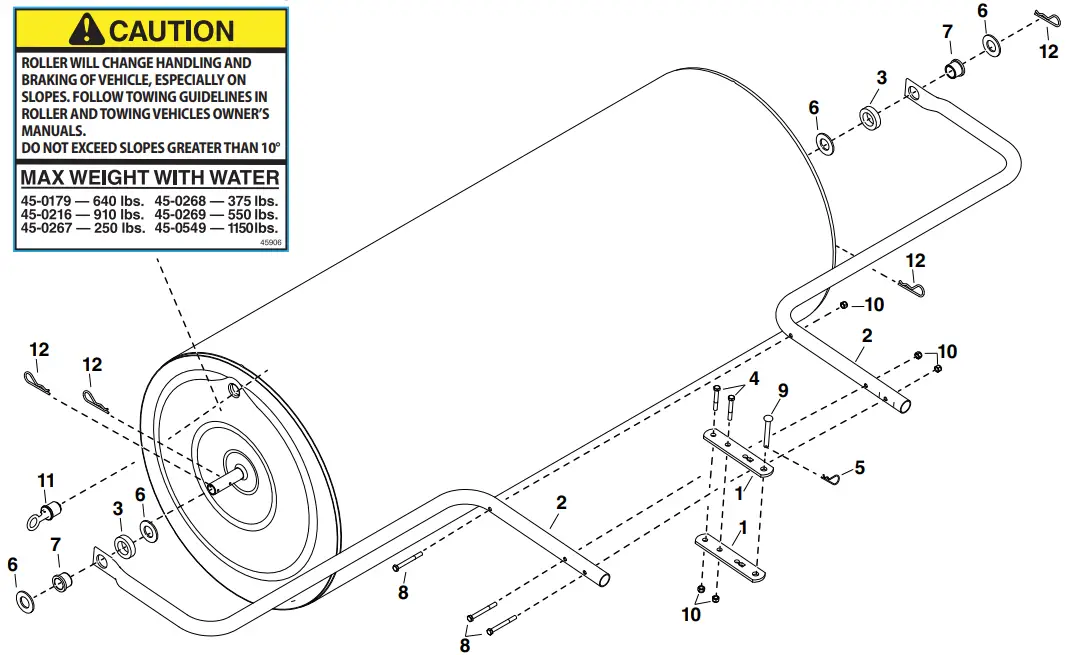

ASSEMBLY INSTRUCTIONS

(SEE ILLUSTRATION BELOW)

1. Assemble a plastic bearing (7) into a hitch tube (2) so that the bearing flange is against the outside of the hitch tube. You may need to place a block of wood against the bearing and carefully tap with a hammer.
2. Place a cotter pin (12) into the inside hole of the axle.
3. Slide the washer (6), spacer (3), hitch tube (2), and washer (6) onto the axle.
4. Place cotter pin (12) into the outside hole of the axle.
5. Repeat steps 1 through 4 on the other side.
6. Bring the two hitch tubes together using three 5/16 X 3″ hex bolts (8) and 5/16″ nuts (10). Do not tighten yet.
7. Assemble hitch brackets (1) to hitch tubes ( 2) using two 5/16 X 2-1/4″ hex bolts (4) and 5/16″ nylock nuts (10).
   Do not tighten yet.
8. Tighten all bolts and nuts starting with hitch tubes (2), and ending with hitch brackets (1).
9. Install hitch pin (9) through hitch brackets (1) and secure with hair cotter pin (5).
10. Adjust plug (11) size by twisting the handle. Lock a plug at each end of the roller drum by flipping the handle down.

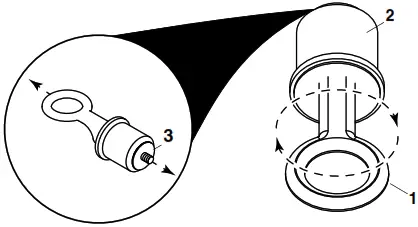

Plug Instructions
Instructions for tightening plug:

• Grip ring (1) with the right hand and plug (2) end with the left hand
• Pull plug and ring in opposing directions
• Twist ring (1) clockwise to tighten and counter-clockwise to loosen

NOTE: If the outer washer (3) is stuck on the threads, use a pair of needlenose pliers to ensure that it moves freely.
Instructions for emptying roller:

• Remove both plugs for more efficient draining

SpeedEPart is the fastest way to purchase parts www.speedepart.com
REPAIR PARTS
Agri-Fab, Inc.
809 South Hamilton
Sullivan, IL. 61951
1-800-448-9282
www.agri-fab.com
© 2019 Agri-Fab, Inc.
