Agri-Fab 45-0553 Utility 18 Inch Poly Cart

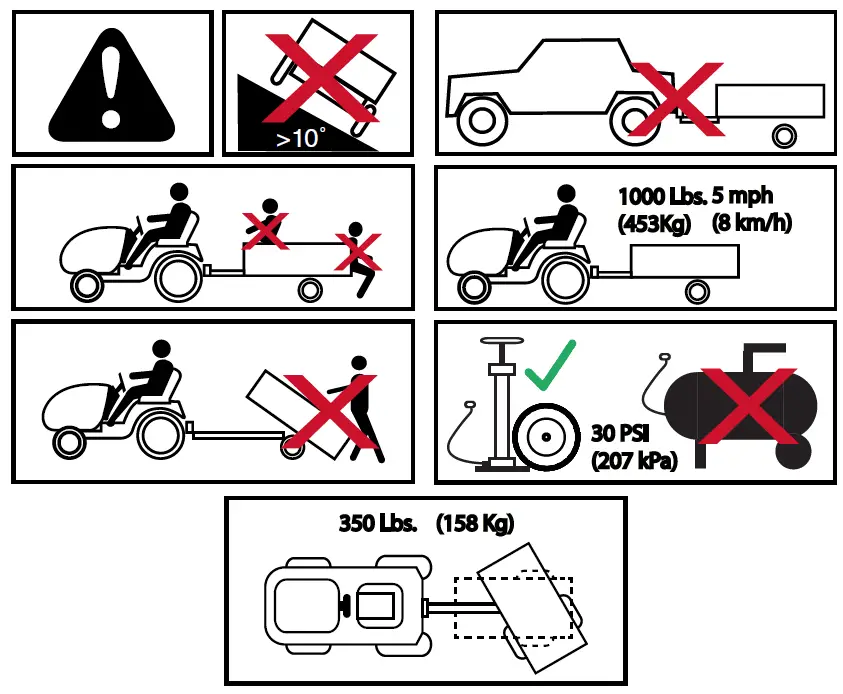

CAUTIONS
WARNING
- DO NOT CARRY PASSENGERS
- DO NOT EXCEED MAXIMUM TOWING SPEED
- NOT FOR HIGHWAY USE
- DO NOT EXCEED LOAD CAPACITY
- STAY OFF STEEP SLOPES AND GRADES VEHICLE BRAKING AND STABILITY WILL BE AFFECTED BY HEAVY LOADS
- REFER TO MANUAL FOR FULL INSTRUCTIONS

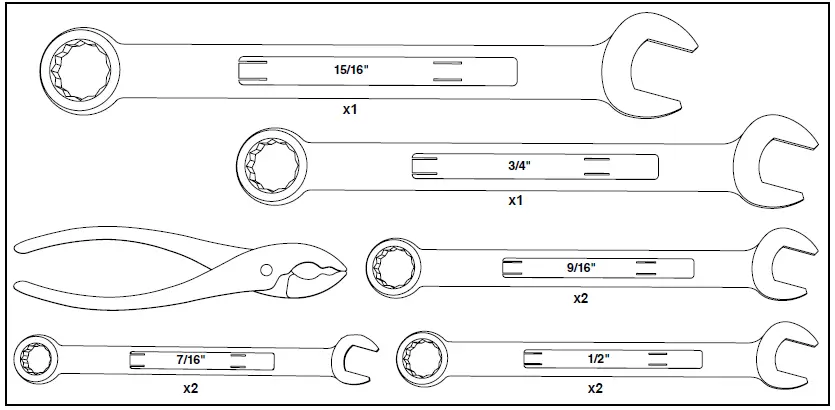

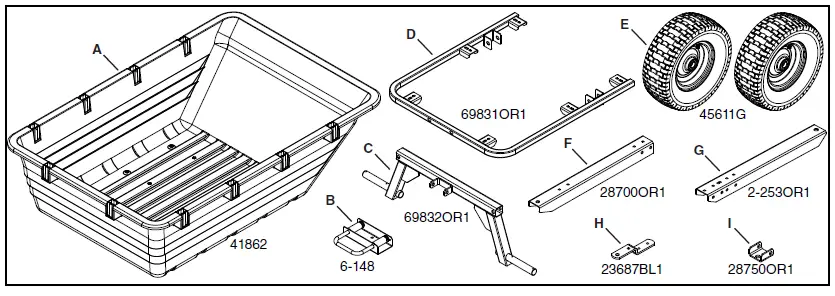

TOOLS AND PARTS INCLUDED

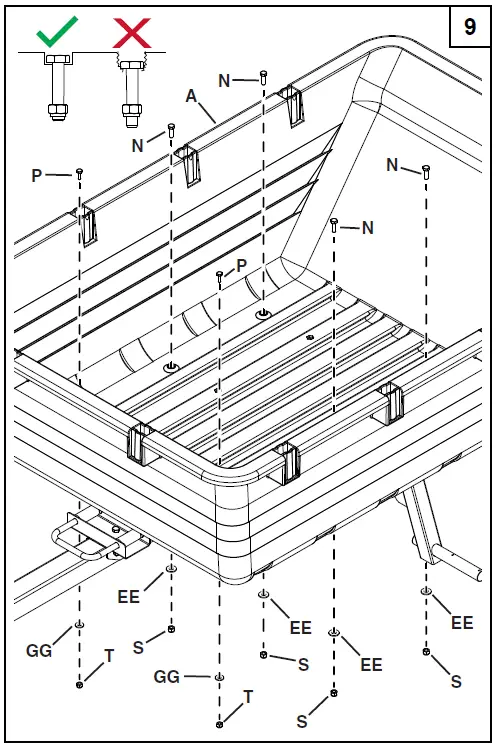

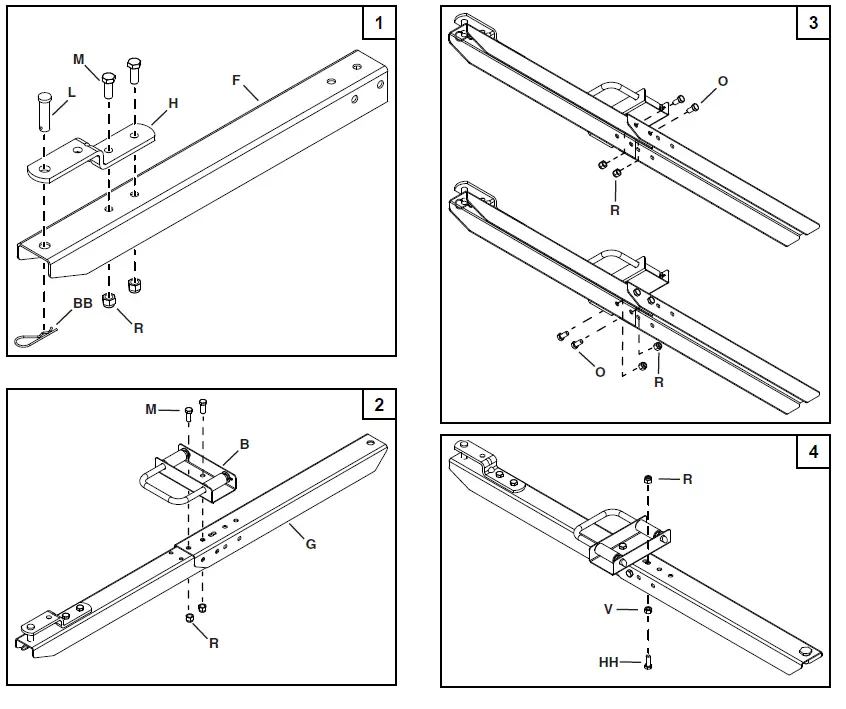

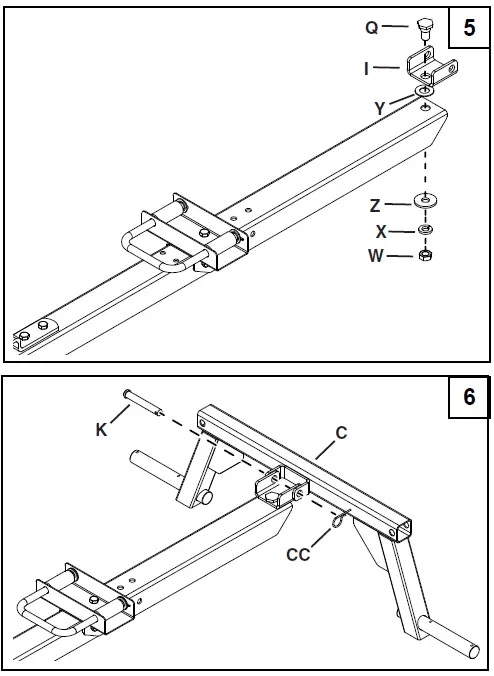

INSTALLATION INSTRUCTIONS

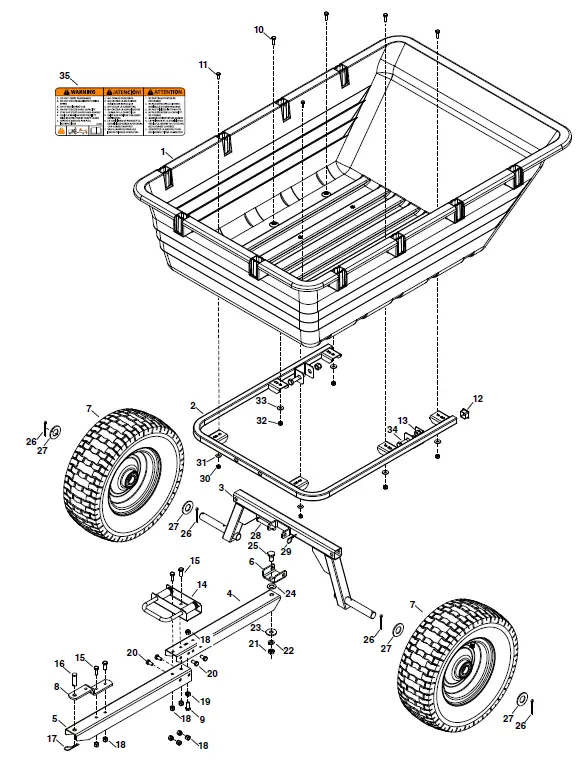

EXPLODED DIAGRAMS
45-0553
| REF | QTY | PART NO | DESCRIPTION | REF | QTY | PART NO | DESCRIPTION |
| 1 | 1 | 41862 | BED, CART | 19 | 1 | 43015 | NUT, HEX 3/8-16 |
| 2 | 1 | 69831OR1 | ASS’Y, FRAME | 20 | 4 | 43407 | BOLT, HEX 3/8-16 X 3/4 |
| 3 | 1 | 69832OR1 | ASS’Y, AXLE | 21 | 1 | HA124934 | NUT, HEX 1/2-20 JAM |
| 4 | 1 | 2-253OR1 | CHANNEL, HITCH | 22 | 1 | 43353 | WASHER, LOC 1/2 |
| 5 | 1 | 28700OR1 | CHANNEL, HITCH FRONT | 23 | 1 | R19172410 | WASHER, .531 X 1.5 X .134 |
| 6 | 1 | 28750OR1 | CLEVIS, PIVOT | 24 | 1 | 44125 | WASHER, .625 X 1 X .03 |
| 7 | 2 | 45611G | WHEEL | 25 | 1 | 47363 | BOLT, 1/2-20 X 1-1/8 |
| 8 | 1 | 23687BL1 | BRACKET, HITCH | 26 | 4 | 46855 | PIN, COTTER 3/16 X 2 |
| 9 | 1 | 43087 | BOLT, HEX 3/8-16 X 1-1/4 | 27 | 4 | 43528 | WASHER, 1″ |
| 10 | 4 | 43063 | BOLT, HEX 5/16-18 X 1 | 28 | 1 | 28704 | PIN, CLEVIS |
| 11 | 2 | 43012 | BOLT, HEX 1/4-20 X 3/4 | 29 | 1 | 43055 | PIN, HAIR 3/32 X 1.8 |
| 12 | 2 | 41778 | PLUG | 30 | 2 | 47189 | NUT, HEX 1/4-20 NYLOC |
| 13 | 2 | 41657 | NUT, HEX 1/2-13 NYLOCK | 31 | 2 | 43088 | WASHER, .312 X .734 X .065 |
| 14 | 1 | 6-148 | LATCH PIN BRACKET | 32 | 4 | 47810 | NUT, HEX .312-18 NYLOC |
| 15 | 4 | 43001 | BOLT, HEX 3/8-16 X 1 | 33 | 4 | 43081 | WASHER, .375 X .875 X .083 |
| 16 | 1 | HA23638 | PIN, CLEVIS | 34 | 2 | 46286 | BOLT, HEX 1/2-13 X 3 |
| 17 | 1 | 714-0117 | PIN, HAIR COTTER 5/32 X 3 | 35 | 1 | 46991 | WARNING LABEL |
| 18 | 9 | HA21362 | NUT, HEX 3/8-16 NYLOC | 1 | 3-29 | Owner’s Manual |
the fastest way to purchase parts www.speedepart.com
REPAIR PARTS
Agri-Fab, Inc. 809 South Hamilton Sullivan, IL. 61951 217-728-8388 www.agri-fab.com
