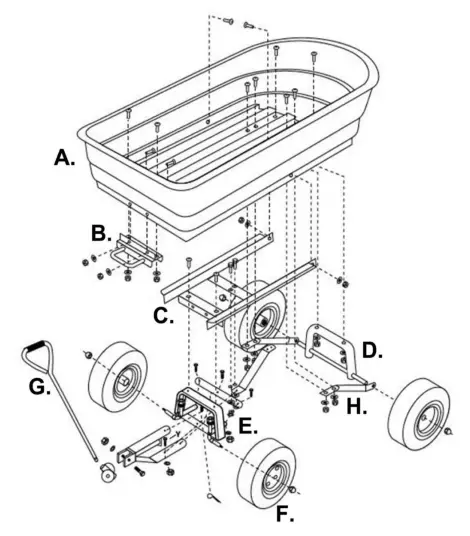

Exploded Drawing for Assembly
Instruction Manual
W22752500-E Metal Garden Cart

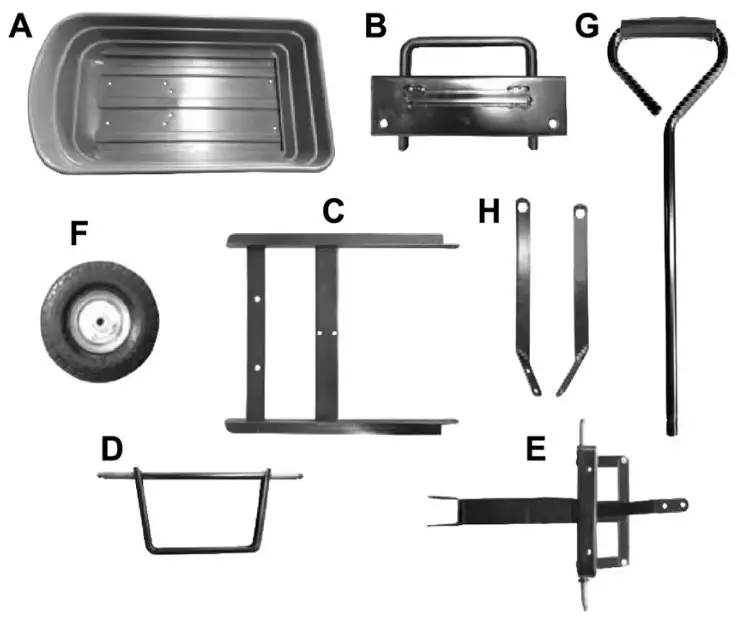

Parts List
A. Barrow (1)
B. Lock (1)
C. Front Frame (1)
D. Rear Axle Assembly (1)
E. Front Axle Assembly & Support Arm (1)
F. Wheels (4)
G. Handle (1)
H. Rear Struts (2)

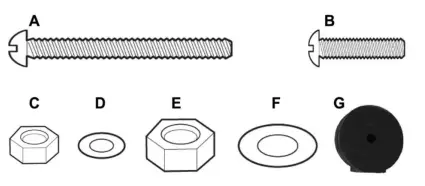

Hardware List
A. M8 x 60 Bolt (1)
B. M8 x 20 Bolts (16)
C. M8 Nylon Nuts (17)
D. M8 Flat Washers (17)
E. M12 Nylon Nuts (4)
F. M12 Flat Washers (4)
G. Plastic Coupling (1)
