ULTIMATE 10214229 Cart and Dolly
Parameter
| Description | Parameter |
| Load Capacity | 1400lb |
| Trailer Ball | 3/4 x 2” |
| Coupler Size | 3/4″ |
| No-Flat Tire Size (2) | 16″ |
Packing Includes
| Description | Quantity |
| Front End | 1 |
| Rear End | 1 |
| Left & Right Side | 2 |
| No-Flat Tire | 2 |
| Coupler | 1 |
| Hardware Bag | 1 |
Assembly

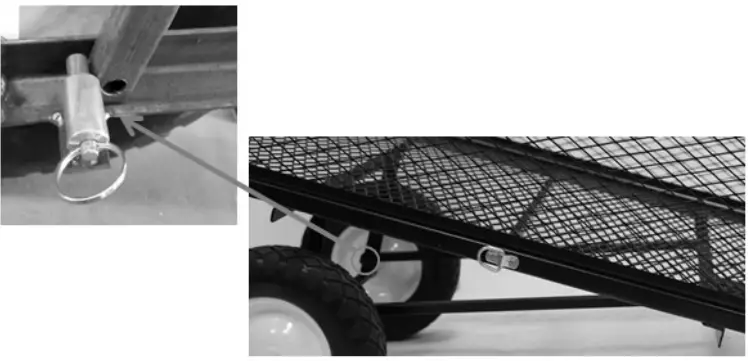

- Put the front and rear brackets in place and insert the spring pin into the lock hole for locking.
- Slide the wheel onto the axle and lock with round pin.

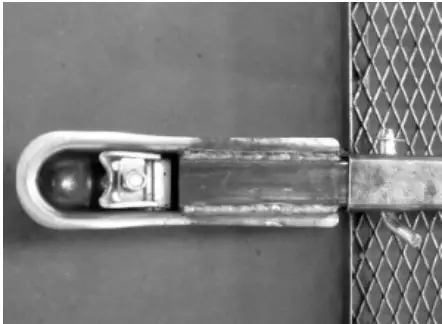

- Insert the trailer coupler into the front square tube of the carriage plate and lock with Pin.

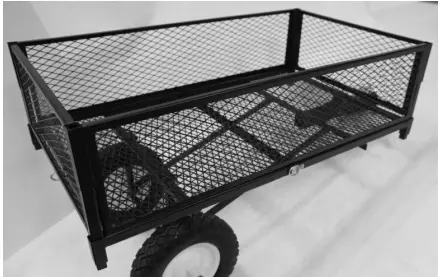

- Insert the front and end panels first and then slide the side panels over the square tubing to assemble all 4 sides.

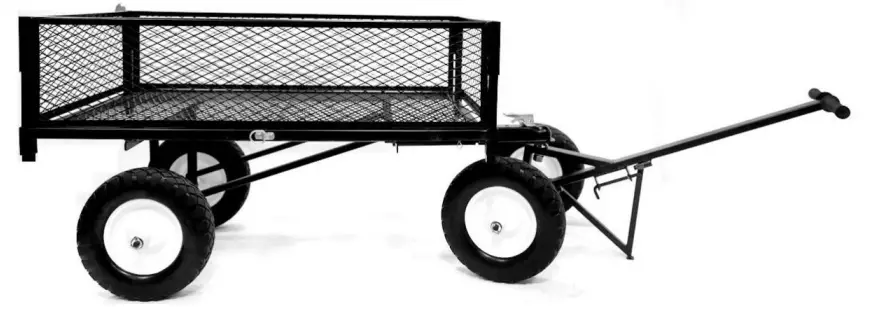

Attach the cart and dolly using the ball & hitch as shown below
