PhotoGate Infrared Photocells
Instruction Manual
WIRING
For the connection, please refer to automation kit installation guide.

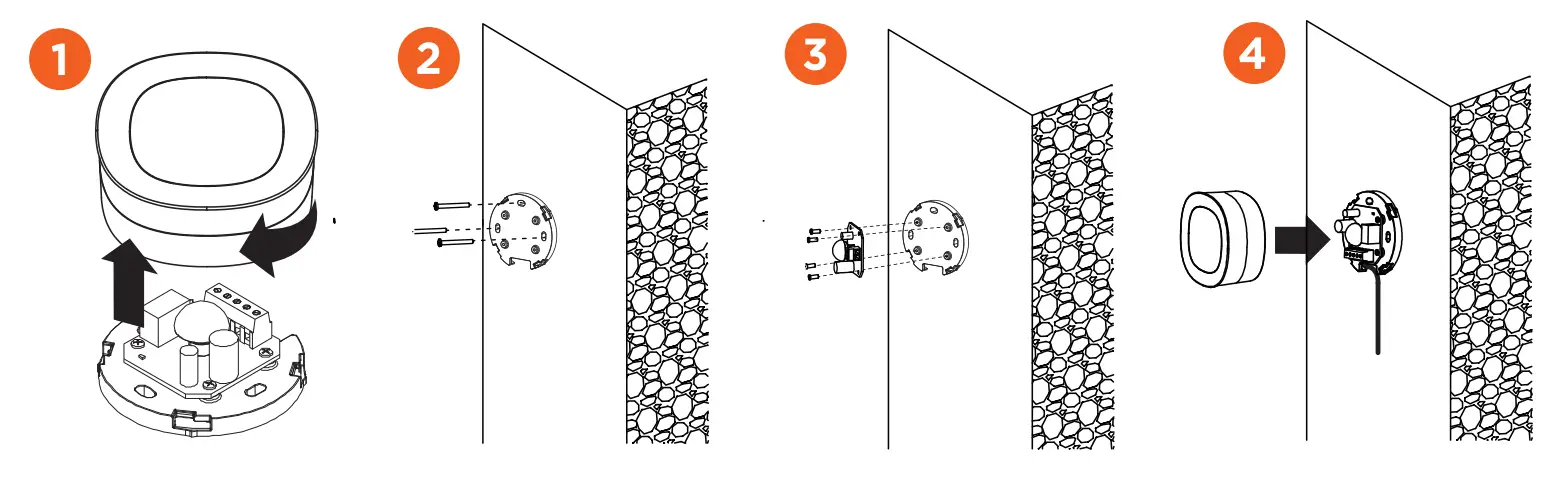

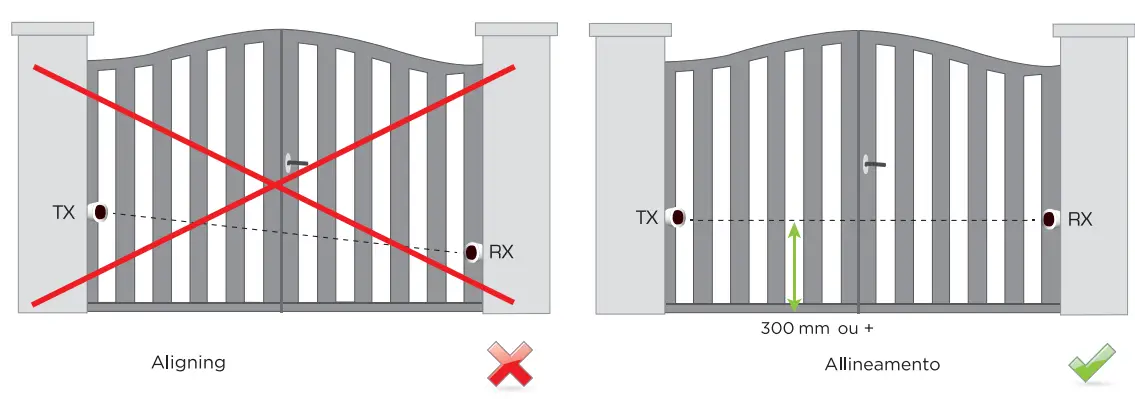

INSTALLING

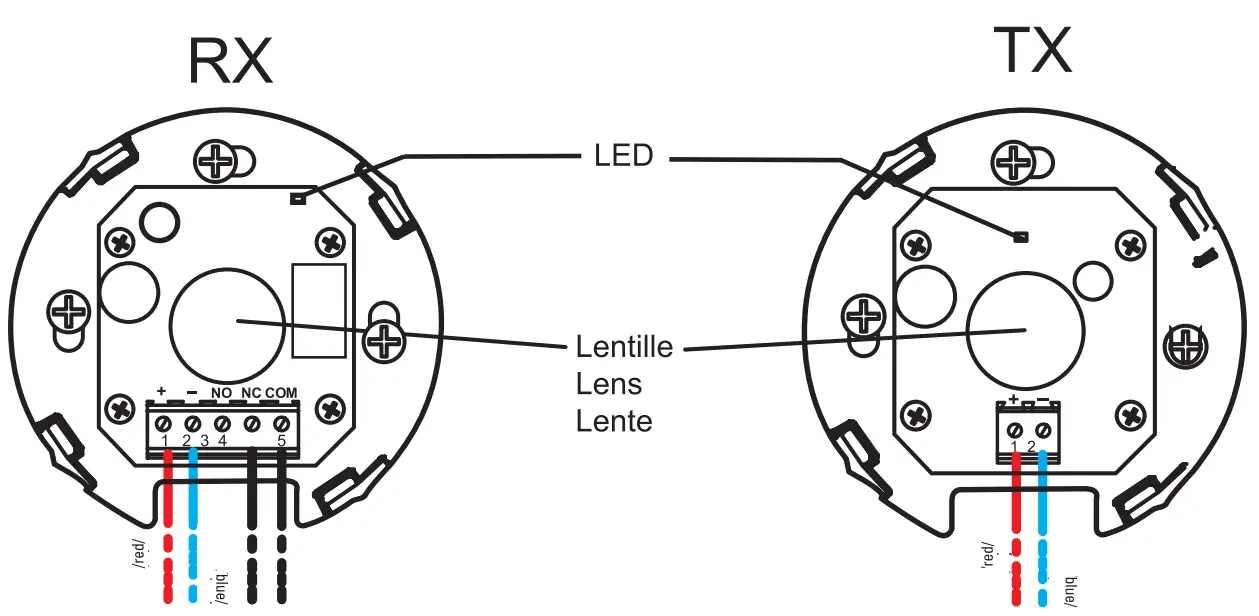

Operating indicator
| RX: |  red | Beam broken |
 brown | Beam aligned | |
| TX: | red | Power supply |
ONLINE ASSISTANCE
ASSISTANCE TECHNIQUE
For an individual answer, use our online chat on our website www.scs-sentinel.com
0 892 350 490 Service 0,15 €/min + prix apple
011-2339876
WARRANTY
2 years
The invoice and barcode will be required as proof of purchase date during the warranty period.
WARNINGS
Don’t throw out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
