Model 501 Dolly Cart
User Manual
501 Dolly Cart
CAPACITY:
6 – 2500′ spools up to 16″ diameter OR 15 – 500′ spools
CAUTION
Only roll on a firm, flat, smooth surface.
NOTE: Dolly Cart should be used in a horizontal position for optimum stability when dispensing wire
INSTRUCTION SHEET AND PARTS LIST

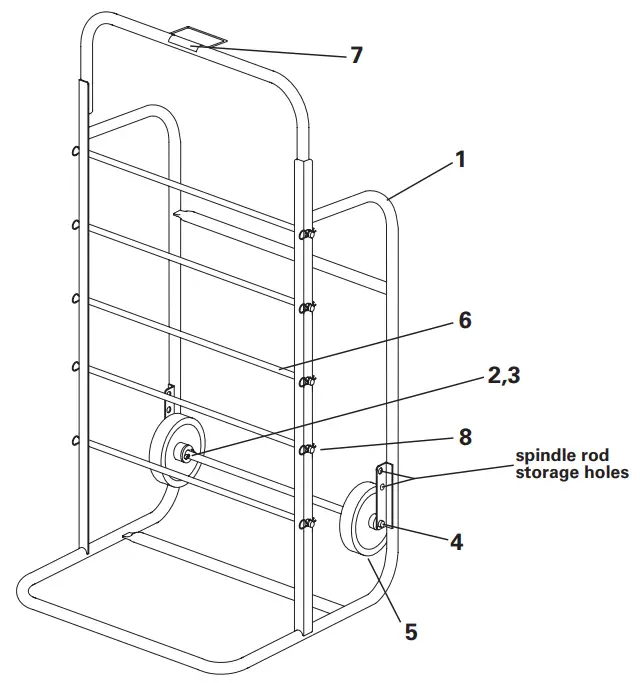

PARTS LIST — 501 DOLLY CART
| ITEM# | PART# | QTY | DESCRIPTION |
| 1 | 501-363 | 1 | FRAME |
| 2 | 501-14 | 2 | COTTER PIN, 1/8″x11/4″ |
| 3 | 77-017 | 2 | WASHER |
| 4 | 501-367 | 1 | AXLE |
| 5 | 500-001 | 2 | WHEEL |
| 6 | 501-368 | 5 | SPINDLE ROD |
| 7 | 501-5 | 1 | DECAL |
| 8 | 406-3 | 10 | SPRING CLIP |
Read and understand this material before operating the Dolly Cart. Failure to understand how to safely operate this Cart may result in injury or property damage.
This manual is free of charge. All personnel who operate the Dolly Cart should have a copy of this manual and read and understand its contents. To request a copy, call or write to the address below. All information, specifications and product designs may change due to design improvements or updates and are subject to change without notice. Current Tools does not assume any liability for damages resulting from misuse or incorrect application of its products.
CURRENT TOOLS • P.O. BOX 17026 • GREENVILLE, SC 29606
800.230.5421 or 864-721-4230 • FAX 864-721-4232 • www.currenttools.com
