45-0552
Want more information or assembly tips?
Video
Instruction
Guide
youtube.com/c/agrifab

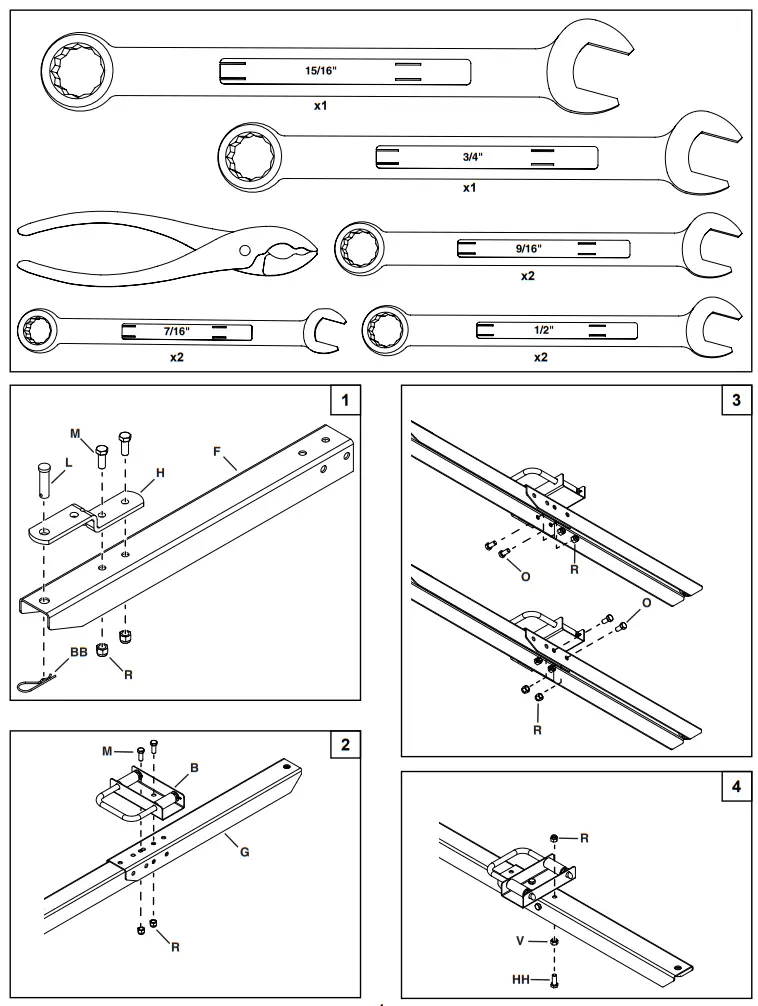

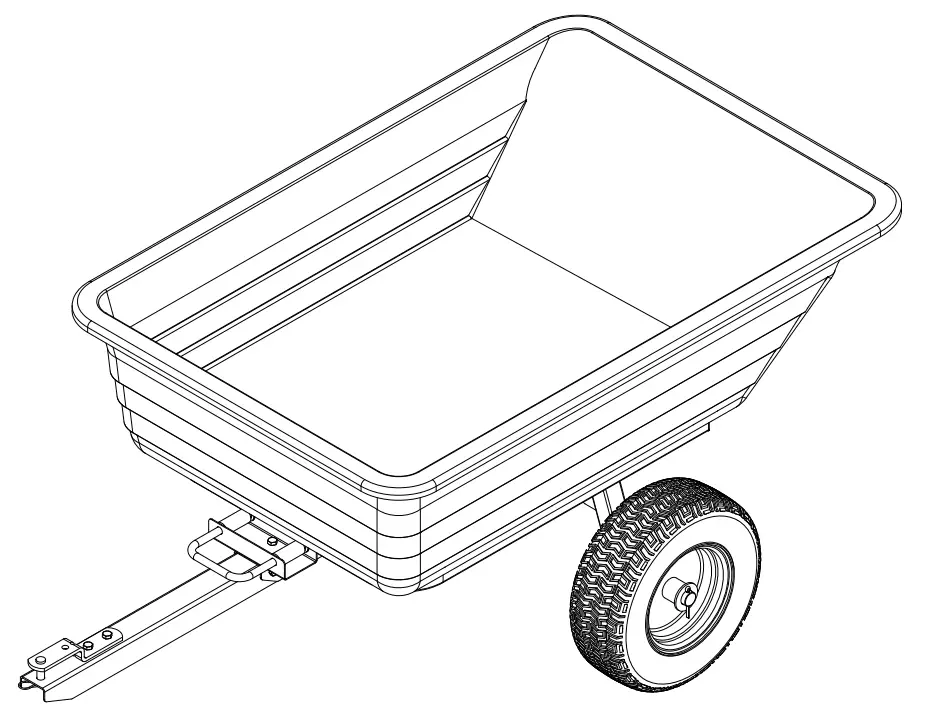

45-0552 12 Cubic Foot Utility Poly Swivel Dump Cart
WARNING
- DO NOT CARRY PASSENGERS
- DO NOT EXCEED MAXIMUM TOWING SPEED
- NOT FOR HIGHWAY USE

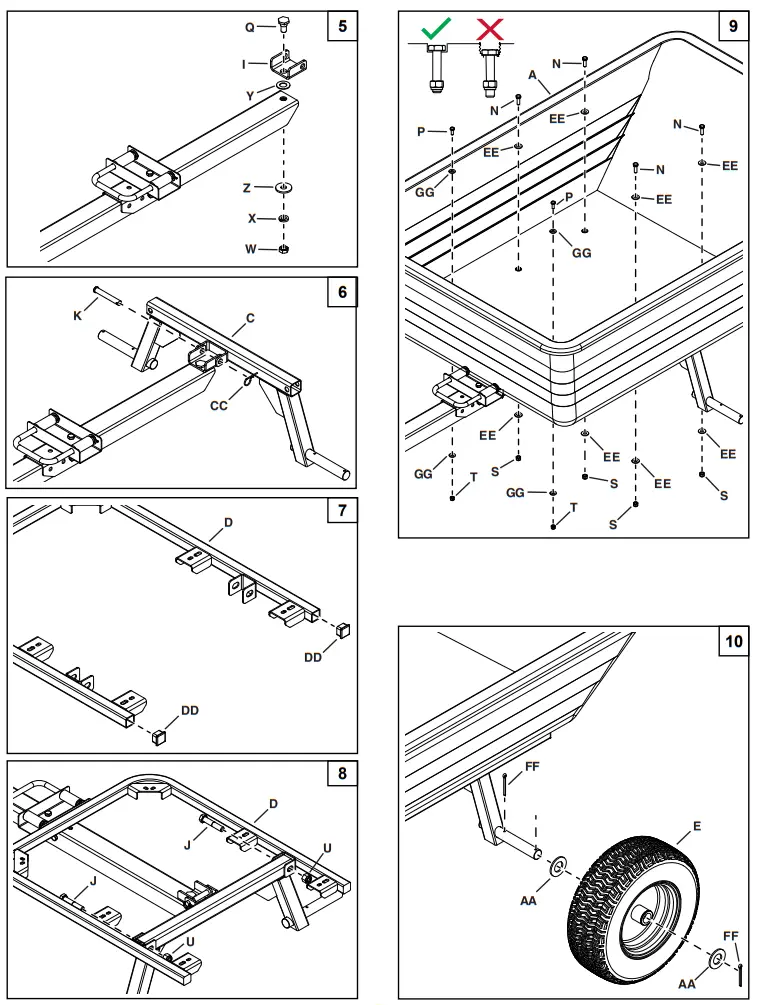

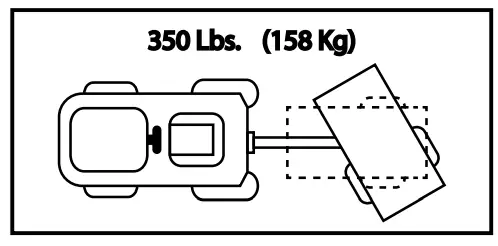

- DO NOT EXCEED LOAD CAPACITY
- STAY OFF STEEP SLOPES AND GRADES
- VEHICLE BRAKING AND STABILITY WILL BE AFFECTED BY HEAVY LOADS
- REFER TO MANUAL FOR FULL INSTRUCTIONS 46991
45-0552

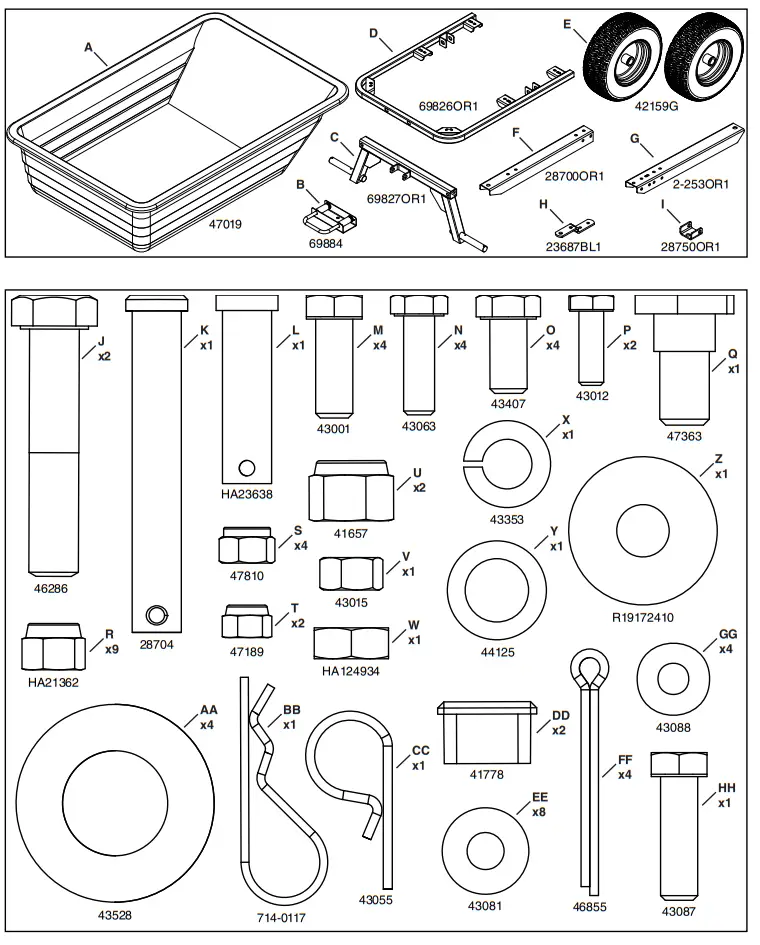

| REF | QTY | PART NO | DESCRIPTION | REF | QTY | PART NO | DESCRIPTION |
| 1 | 1 1 1 1 1 1 2 1 1 4 2 2 2 1 4 1 1 9 | 47019 | TRAY, POLY DUMP CART | 19 | 1 4 1 1 1 1 1 4 4 1 1 2 4 4 8 2 1 1 | 43015 | NUT, HEX 3/8-16 |
| 2 | 698260R1 | ASS’Y, FRAME | 20 | 43407 | BOLT, HEX 3/8-16 X 3/4 | ||
| 3 | 698270R1 | ASS’Y, AXLE | 21 | HAl24934 | NUT, HEX 1/2-20 JAM | ||
| 4 | 2-2530R1 | CHANNEL, HITCH | 22 | 43353 | WASHER, LOC 1/2 | ||
| 5 | 287000R1 | CHANNEL, HITCH FRONT | 23 | R19172410 | WASHER, .531 X 1.5 X .134 | ||
| 6 | 287500R1 | CLEVIS, PIVOT | 24 | 44125 | WASHER, FLAT .640 X 1 X .03 | ||
| 7 | 42159G | WHEEL, 15 X 6.00 GRAY | 25 | 47363 | BOLT, 1/2-20 X 1-1/8 | ||
| 8 | 23687BL1 | BRACKET, HITCH | 26 | 46855 | PIN, COTTER 3/16 X 2 | ||
| 9 | 43087 | BOLT, HEX 3/8-16 X 1-1/4 | 27 | 43528 | WASHER, 1″ | ||
| 10 | 43063 | BOLT, HEX 5/16-18 X 1 | 28 | 28704 | PIN, CLEVIS | ||
| 11 | 43012 | BOLT, HEX 1/4-20 X 3/4 | 29 | 43055 | PIN, HAIR 3/32 X 1.8 | ||
| 12 | 41778 | PLUG | 30 | 47189 | NUT, HEX 1/4-20 NYLOC | ||
| 13 | 41657 | NUT, HEX 1/2-13 NYLOCK | 31 | 43088 | WASHER, .312 X .734 X .065 | ||
| 14 | 69884 | LATCH PIN BRACKET | 32 | 47810 | NUT, HEX .312-18 NYLOC | ||
| 15 | 43001 | BOLT, HEX 3/8-16 X 1 | 33 | 43081 | WASHER, .375 X .875 X .083 | ||
| 16 | HA23638 | PIN, CLEVIS | 34 | 46286 | BOLT, HEX 1/2-13 X 3 | ||
| 17 | 714-0117 | PIN, HAIR COTTER 5/32 X 3 | 35 | 46991 | WARNING LABEL | ||
| 18 | HA21362 | NUT, HEX 3/8-16 NYLOC | 3-30 | Owner’s Manual |
SpeedEPart the fastest way to purchase parts www.speedepart.com
REPAIR PARTS
Agri-Fab, Inc.
809 South Hamilton
Sullivan, IL. 61951
217-728-8388
www.agri-fab.com
