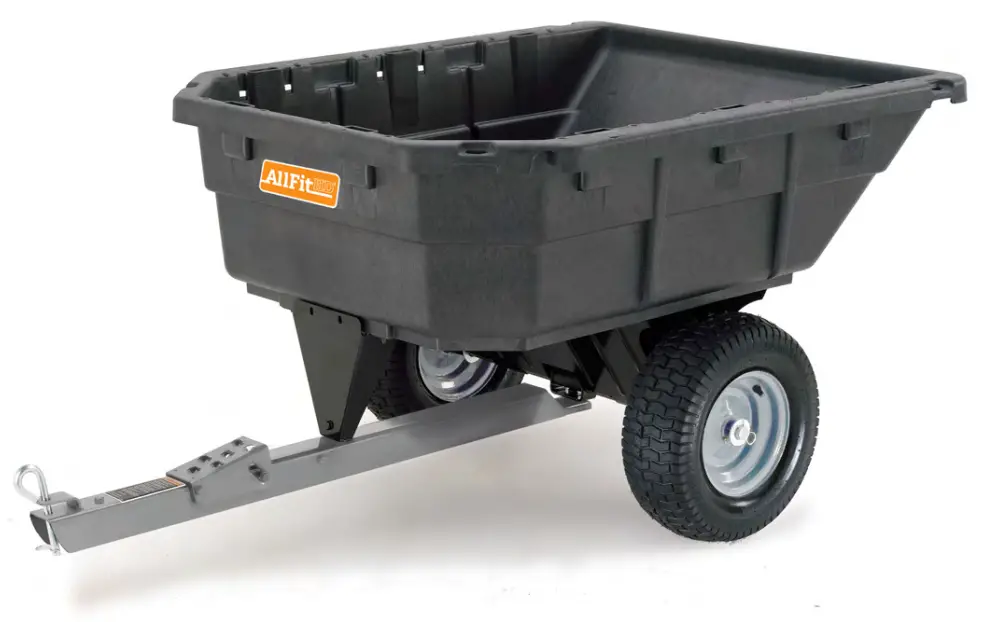

AllFitHD AF-1000PS Poly Swivel Dump Cart

READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT

Contents hide

1 Safety Rules

2 Warranty

3 Carton Contents

3.1 TOOLS REQUIRED FOR ASSEMBLY

4 Assembly Instructions

5 Operating Instructions

6 Do-It-Yourself Accessories

7 Repair Parts

8 Documents / Resources

8.1 References

9 Related Posts

Safety Rules

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Read and understand all safety rules and operating instructions before using this tractor attachment.

Follow all safety rules and operating instructions provided by your vehicle’s manufacturer when using attachment.

Never allow children or untrained persons to operate vehicle or attachment.

Do not exceed the vehicle manufacturer’s towed weight limit.

Reduce vehicle speed and allow extra stopping distance when towing heavy loads.

Reduce vehicle speed and towed weight when operating on slopes.

Operate up and down slopes, never across the face of slopes.

Do not carry passengers on vehicle or attachment.

Avoid sudden turns or maneuvers.

Do not tow attachment on public roadways.

Do not remove warning decals from product.

Check product for worn, loose, or damaged parts before each use. If any damage is present, repair the product before using.

Check product for loose or missing fasteners before each use. Tighten or replace fasteners as needed before using.

Do not exceed vehicle speed of 6 miles per hour when towing Dump Cart. Do not exceed Dump Cart rated weight capacity of 1000 pounds.

Warranty

IF YOU ARE MISSING PARTS DO NOT RETURN TO STORE
Email [email protected] or call 1-800-652-2321, ext. 212

Attach Receipt Here:

Before you call, please email our customer service team at [email protected] with the following:

A description of the issue you are having
Photos of the issue that include an overall view and detailed view from multiple angles
If applicable, a short video showing the issue

Replacement Parts:
You can place your parts order online at ohiosteel.com/partsstore

You can also reach our Customer Service Department at 1-800-652-2321, ext. 212
If you are ordering replacement part(s) for your product, please note that some parts are only available as a repair kit.

If this product fails due to a defect in material or workmanship within THREE YEARS from the date of purchase, we will at our option, only with receipt of purchase, repair or replace it free of charge. This warranty excludes tires, bushings, and bearings which are expendable and become worn during normal use.

This warranty does not cover:

Repairs necessary because of operator abuse or negligence.
Equipment used for commercial or rental purposes.
Paint that is worn or faded due to normal use or exposure.

To arrange for product repair visit ohiosteel.com/customer-support and fill out the warranty repair form. You can also call 1 800-652-2321, ext. 212 to speak to our Customer Service Team.

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. This warranty applies only while this product is in use in the United States.

Carton Contents

TOOLS REQUIRED FOR ASSEMBLY

1/2″ Wrench or Socket
Grease Gun

Assembly Instructions

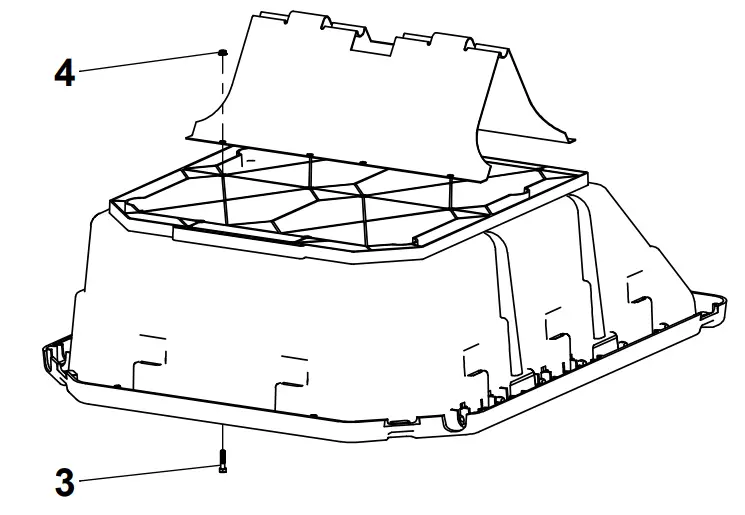

Attach Undercarriage to Poly Body and tighten hardware.

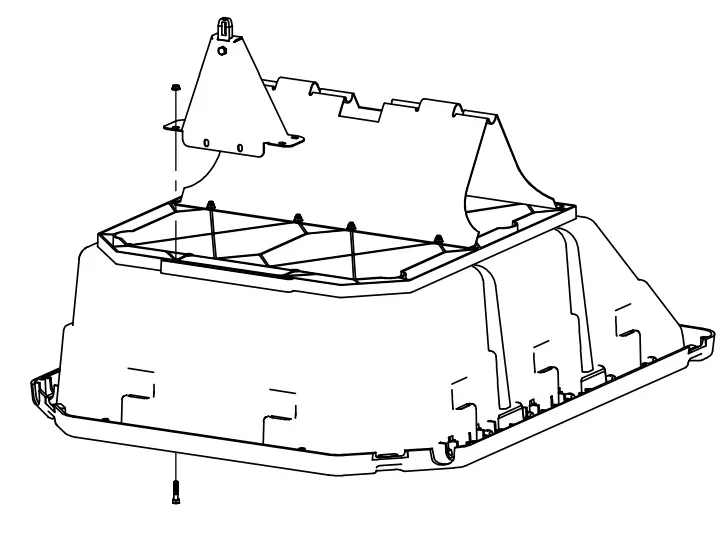

Attach Front Support to Poly Body and tighten hardware

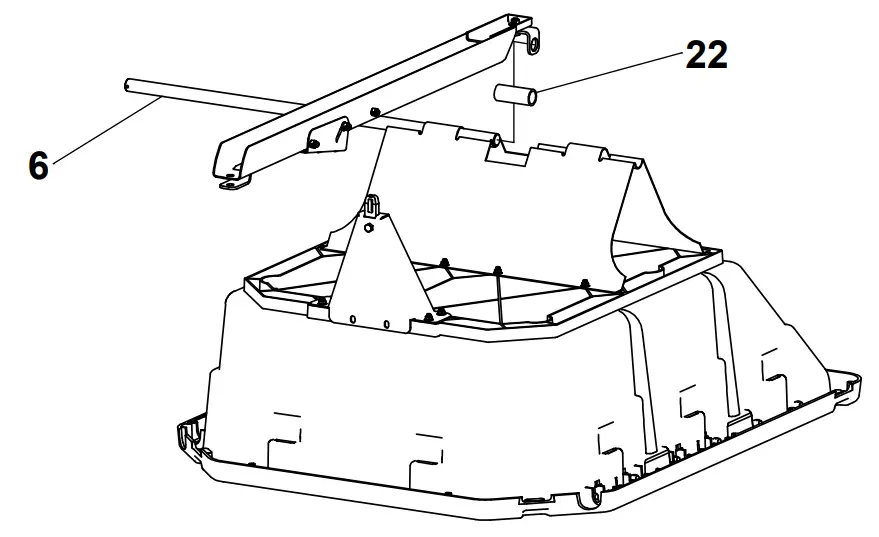

Insert Axle into Undercarriage halfway as shown. Center Spacer inside Swivel Clevis and align with Axle.

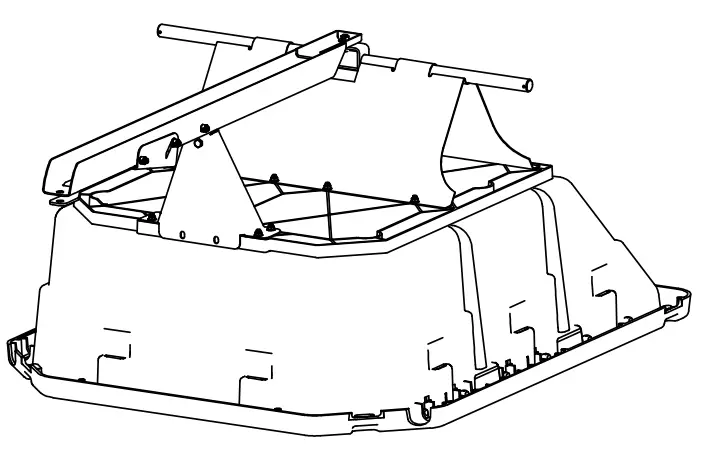

Slide Axle completely through Undercarriage; Swivel Clevis and Spacer must be captured by Axle.
Align Drawbar with Front Support and press down to latch.

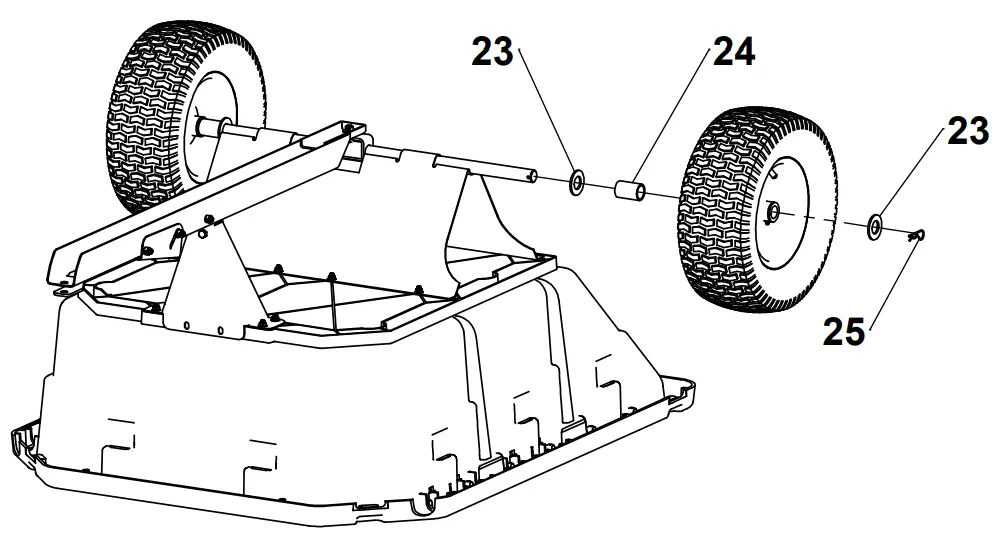

Slide Washers, Spacers and Wheels onto Axle and secure with Hairpins as shown.

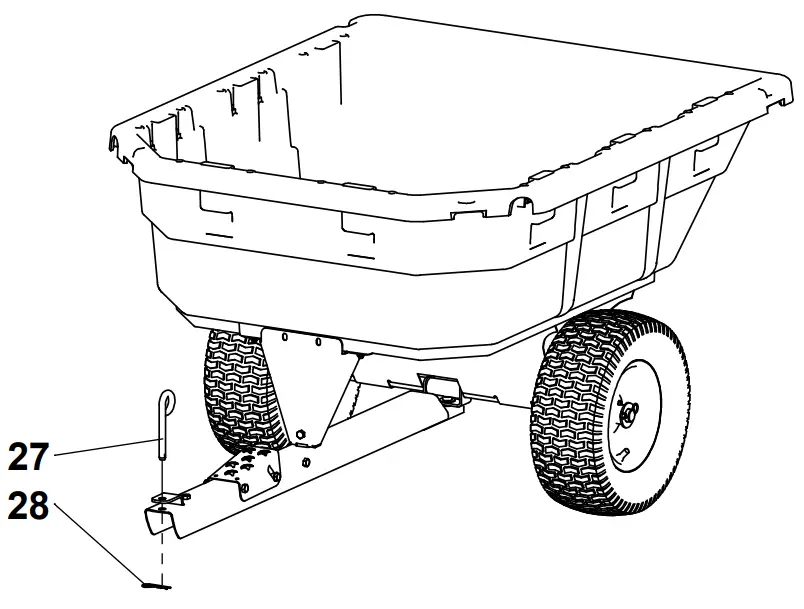

Install Hitch Pin as shown.

Operating Instructions

Before Using Dump Cart

Apply grease to wheels using grease gun until grease can be seen squeezing out from both sides of the wheel.
Check tire pressure and inflate to 28 psi if needed.
Read all Safety Rules found on page 1.

How to Use Dump Cart

Attach Dump Cart to your tractor using the supplied hitch pin.
Do not exceed 1000 pounds when loading material into the cart body.
Distribute the weight of the load as evenly as possible in the cart body for best handling.
When hauling heavy loads, verify that your vehicle has adequate towing and braking capacity.
Do not exceed 6 miles per hour when towing Dump Cart.

How to Empty Dump Cart

Step down the foot pedal to release the latch mechanism.
Lift the body and swivel as desired to guide the material to preferred location.
Lift the body entirely and empty material.
Lower the body and guide the latch into the drawbar and relatch.

Periodic Maintenance:

Tighten fasteners as needed before each use
Check tire pressure before each use
Grease wheels annually

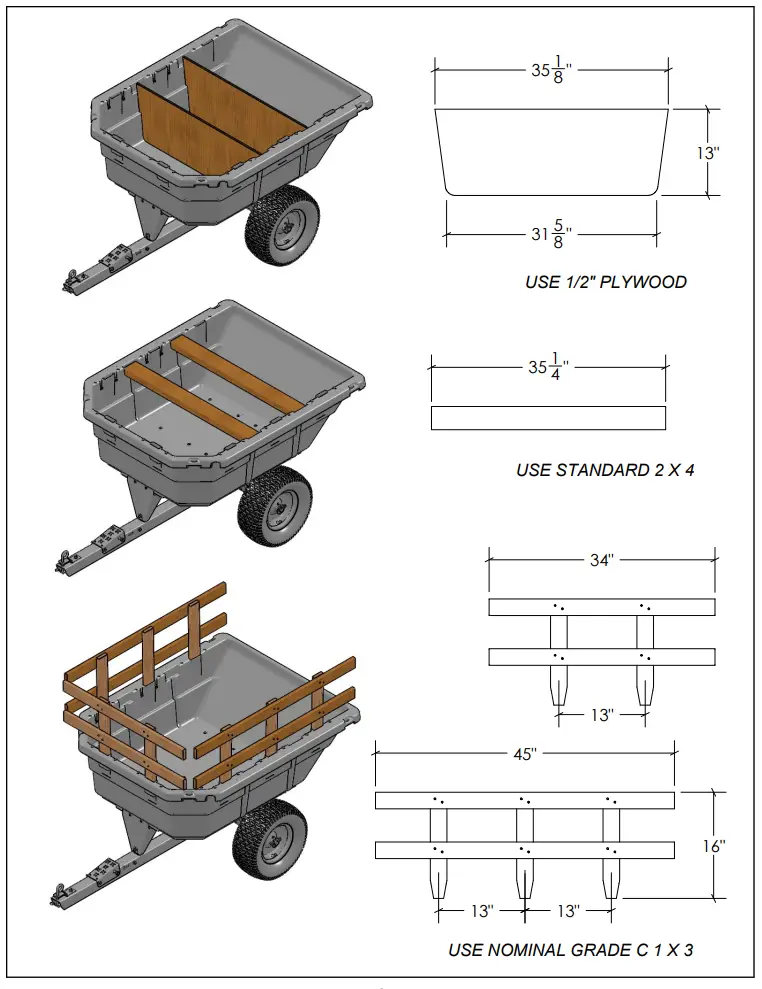

Do-It-Yourself Accessories

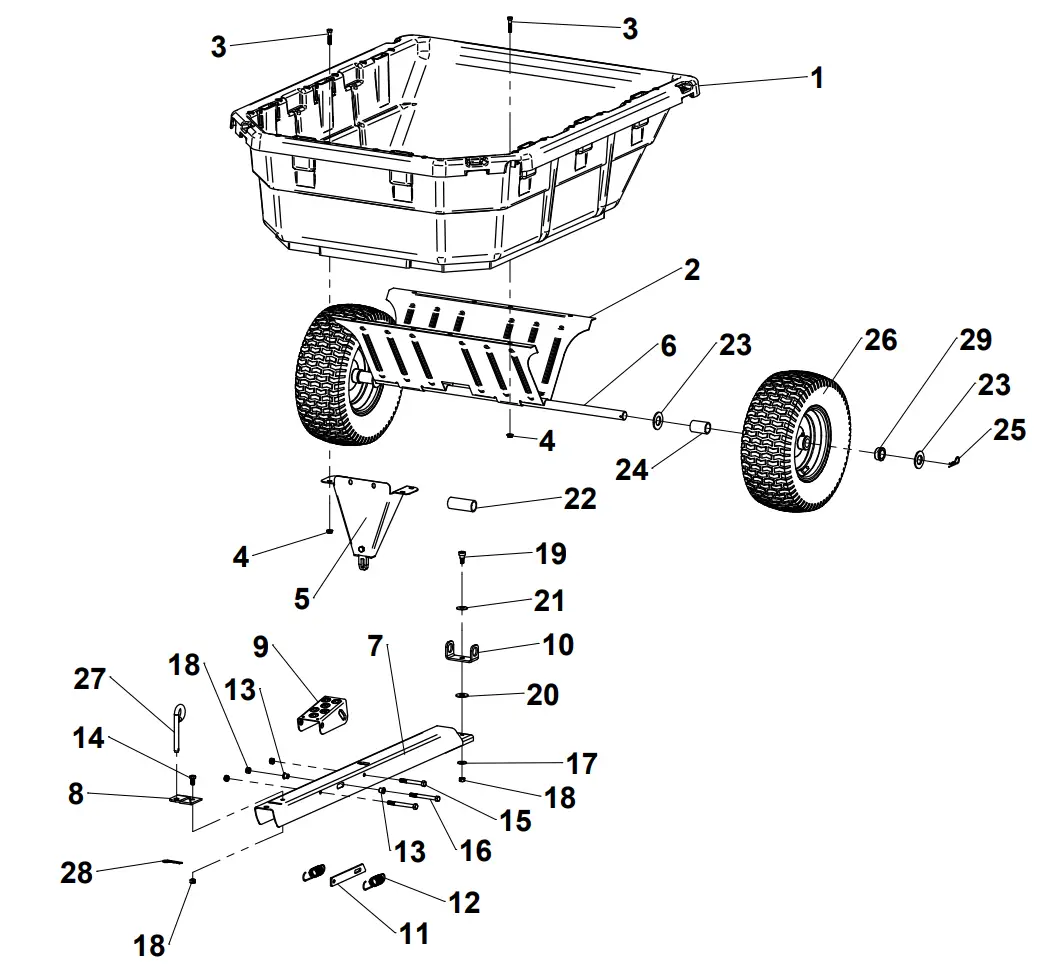

Repair Parts

ITEM	PART NO	DESCRIPTION	QTY
1	311161	POLY BODY	1
2	6000404-B2	UNDERCARRIAGE	1
3	KIT 6004321	HEX BOLT, 5/16-18 X 1-1/2″	12
4	KIT 6004321	SPINNER-GRIP NUT, 5/16-18	12
5	6000310-B2	FRONT SUPPORT	1
6	300002	AXLE	1
7	KIT 6000315-BG	WELDED DRAWBAR	1
8		HITCH BRACKET	1
9		FOOT PEDAL	1
10		SWIVEL CLEVIS	1
11		SWIVEL DUMP LATCH	1
12		LATCH SPRING	2
13		FOOT PEDAL BUSHING	2
14		HEX BOLT, 3/18-16 X 3/4″	1
15		HEX BOLT, 3/18-16 X 3″	1
16	KIT 6000315-BG	HEX BOLT, 3/18-16 X 3-1/2″	2
17		3/8″ USS WASHER	1
18		HEX NUT, 3/8-16 C-LOCK	5
19		SHOULDER BOLT, 1/2″ X 3/8″	1
20		1/2″ USS WASHER	1
21		SPRING WASHER	1
22	KIT 6004324	3-1/8″ SPACER	1
23		1″ SAE FLAT WASHER	4
24		2″ SPACER	2
25		HAIRPIN COTTER, 2-5/16″	2
26	6001774	WHEEL	2
27	KIT 6000770	HITCH PIN, 1/2″ X 3″	1
28	KIT 6000770	HAIRPIN COTTER, 2-5/16″	1
29	KIT 6000810	REPLACEMENT BUSHINGS (SET OF 4)	–
