Salus Smart Relay Sr600 User Guide (+ PDF)

Smart Relay (SR600) is a switching relay product that can be used to power on or off a maximum 16A load. It can be installed directly within a wall box or surface mounted onto the wall (using the optional SRS600 wall mount bracket).
This product must be used with the Universal Gateway (purchased separately). The Universal Gateway allows communication with other SALUS Smart Home products using the SALUS Smart Home App.

Product Compliance:

This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU (RED) and 2011/65/EU. The full text of the EU Declaration of
Conformity is available at the following internet address: www.saluslegal.com. 2405-2480MHz; <14dBm

Safety Information:

Use in accordance with the regulations. Indoor use only. Keep your device completely dry. Disconnect your device before cleaning it with a dry cloth.
This accessory must be fitted by a competent person, and installation must comply with the guidance, standards and regulations applicable to the city, country or state where the product is installed. Failure to comply with the relevant standards could lead to prosecution

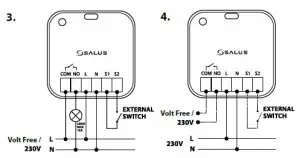

Wiring diagram

Terminals

COM	Common terminal
NO	Switch terminal
L	Power supply 230V AC
N	Power supply 230V AC
S1/S2	Switch input terminals

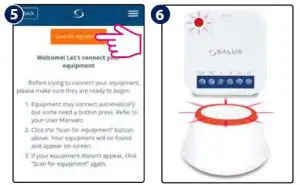

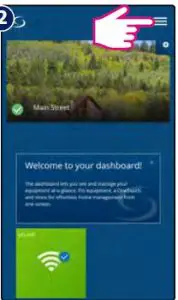

Pairing Process

9..Follow the onscreen

LED Indication

Description	LED
Joining Network automatically	RED LED pulsing
Joining Network trigger by button press	RED+GREEN LED turn on for 1s, then RED LED pulsing
Device Relay ON with Network	GREEN LED ON
Device Relay OFF with Network	RED LED ON
Device Relay OFF without Network	RED LED pulsing
Device Relay ON without Network	RED + GREEN LED pulsing
Identify	GREEN LED flashing for up to 10 minutes

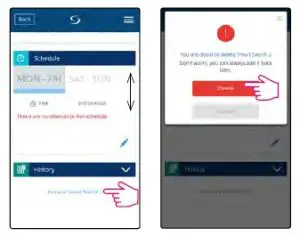

EN Remove device

S1&S2 terminals

Button operation

To identify the device, short press the button.
To enter pair mode, press and hold the button for 3 seconds.
To do a factory reset, press and hold the button until LED flashes red (max 15 sec).
