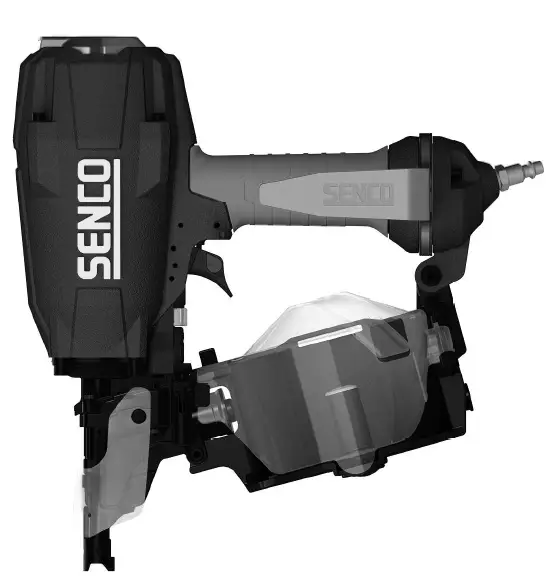

SENCO -SN71P1- Coil -Siding- Nailer

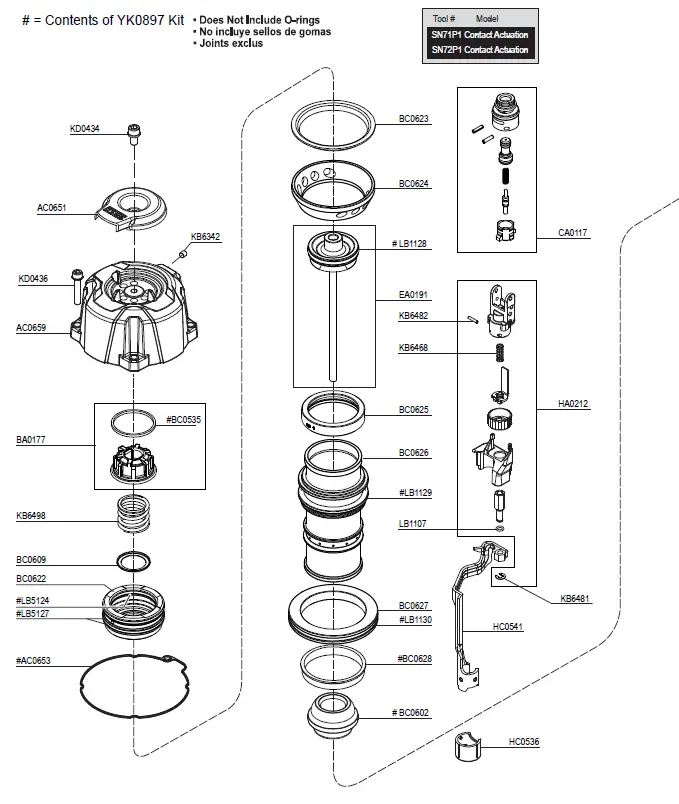

Parts Reference Guide
Coil Siding Nailer
Coil Siding Nailer
| Part No. | Description |
| AC0651 | DEFLECTOR |
| AC0653 | GASKET |
| AC0654 | BEARING |
| AC0655 | BELT HOOK |
| AC0656 | BEARING |
| AC0657 | GASKET |
| AC0659 | CAP |
| AC0680 | END CAP |
| BA0177 | SEAL |
| BC0535 | SEAL |
| BC0602 | STOP |
| BC0609 | SEAL |
| BC0622 | FIRING VALVE |
| BC0623 | RING |
| BC0624 | RING |
| BC0625 | CYLINDER |
| BC0626 | CYLINDER |
| BC0627 | SPACER |
| BC0628 | RING |
| CA0117 | VALVE ASSEMBLY |
| EA0191 | PISTON ASSEMBLY |
| FA0250 | LATCH ASSEMBLY |
| FA0307 | FEED ASSEMBLY |
| FC0550 | RETAINER |
| FC0605 | SPRING |
| FC0608 | RETAINER |
| FC0611 | STOP |
| FC0612 | PIN |
| FC0613 | PIN |
| FC0614 | RETAINER |
| FC0615 | PIN |
| FC0616 | FEED PISTON |
| FC0617 | PIN |
| FC0618 | CAP |
| FC0632 | FEEDER |
| FC0634 | DOOR |
| FC1007 | PIN |
| FC1008 | GUIDEBODY |
| GA0531 | MAGAZINE ASSEMBLY |
| GA0629 | SPRING ASSEMBLY |
| GC1151 | RING |
| GC1171 | PLATE |
| HA0212 | SAFETY ELEMENT ASSEMBLY (UPPER) |
| HA0213 | COVER ASSEMBLY |
| HA0240 | TRIGGER (SEQUENTIAL) |
| HC0534 | TRIGGER (SELECTABLE) |
| HC0536 | COVER |
| HC0540 | COVER |
| HC0541 | SAFETY ELEMENT |
| KB6342 | SCREW |
| KB6364 | SCREW |
| KB6467 | SPRING |
| KB6468 | SPRING |
| KB6469 | SPRING |
| KB6473 | SPRING |
| KB6475 | SCREW |
| KB6479 | WASHER |
| KB6480 | RING |
| KB6481 | RING |
| KB6482 | PIN |
| KB6483 | PIN |
| KB6484 | PIN |
| KB6485 | PIN |
| KB6486 | NUT |
| KB6498 | SPRING |
| KB6499 | SPRING |
| KB6500 | NUT |
| KD0434 | SCREW |
| KD0436 | SCREW |
| KD0437 | SCREW |
| KD0438 | SCREW |
| LB1105 | SEAL |
| LB1107 | SEAL |
| LB1109 | SEAL |
| LB1113 | SEAL |
| LB1114 | SEAL |
| LB1128 | SEAL |
| LB1129 | SEAL |
| LB1130 | SEAL |
| LB5124 | SEAL |
| LB5127 | SEAL |
| YK0897 | REPAIR KIT |
