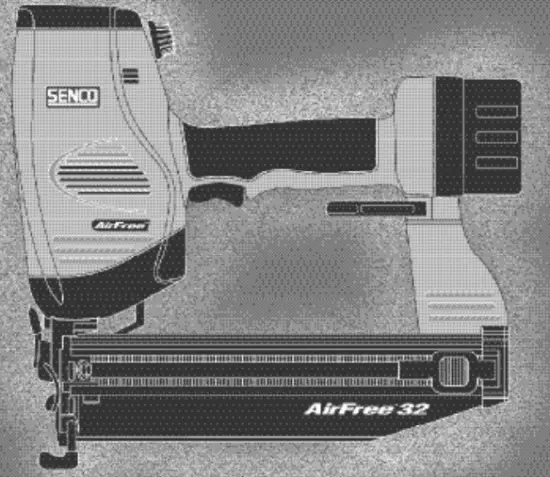

2N0001N AirFree 32 Cordless Nailer
Instruction Manual

General Safety Rules

(For all Battery Operated Tools)

Safety Warnings

Warning!
Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS

Work Area
Keep your work area clean and well-lit. Cluttered benches and dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.

Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety
Do not abuse the cord. Never use the cord to carry the tool. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged cords immediately. Damaged cords may create a fire.

A battery-operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.
Use battery-operated tools only with a specifically designated battery pack. The use of any other batteries may create a risk of fire.

Personal Safety
Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tools while tired or under the influence f drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. Dress properly.
Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

Avoid accidental starting. Be sure the switch is in the locked or off position before inserting the battery pack. Carrying tools with your finger on the switch or inserting the battery pack into a tool with the switch on invites accidents.

Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.

Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.

Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Failure to do so could result in personal injury. Tool Use and Care

Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
Do not use the tool if the switch does not turn it on or off. A tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the battery pack from the tool or place the switch in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of the tool starting accidentally.

Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.

When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.

Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.

Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.

Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may create a risk of injury when used on another tool. Service

Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.

When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury.

With the battery disconnected, make a daily inspection to assure free movement of safety elements and trigger. Do not use tools if the safety elements or trigger sticks or binds.

Specific Safety Rules and/or Symbols

Symbol Definitions V …..Volts— …..Direct Current

Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for SENCO battery charger
Before using SENCO battery charger VB0002, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using the battery.

CAUTION – To reduce the risk of injury, charge only SENCO Batteries. Other types of batteries may burst to cause personal injury and damage.

Do not expose the charger to water, rain, or snow.
Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

To reduce the risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the charger.

Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. TABLE 1 RECOMMENDED THE MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS

An extension cord should not be used unless absolutely necessary. The use of an improper extension cord could result in a risk of fire and electric shock. If an extension cord must be used, make sure: a. That pins on the plug of the extension cord are the same number, size, and shape as those of the plug on the charger; b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for the AC ampere rating of the charger as the one specified in the table.

Do not operate the charger with a damaged cord or plug. If damaged, have replaced immediately by a qualified serviceman.

Do not operate the charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

Do not disassemble the charger pr battery cartridge; take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

To reduce the risk of electric shock, unplug the charger from the outlet before attempting any maintenance or cleaning. ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE

Do not charge the battery cartridge when the temperature is BELOW 10˚C (50˚F) or ABOVE 40˚C (104˚F).

Do not attempt to use a step-up transformer, an engine generator, or a DC power receptacle.

Do not allow anything to cover or clog the charger vents.
Do not use the tool without Warning Label on the tool. If the label is missing, damaged, or unreadable, contact your SENCO representative to obtain a new label at no cost.

A battery short can cause a large current flow, overheating, possible burns, and even a breakdown. (1) Do not touch the terminals with any conductive material. (2) Avoid storing the battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose the battery cartridge to water or rain.

Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 40˚C (104˚ F).

Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.

Never attempt to connect two (2) chargers together.

Consecutive charging may cause overheating. If you need to recharge batteries consecutively, wait about 15 minutes for the charger to cool.

Battery leakage may occur under conditions of extreme usage or temperature. If liquid comes in contact with skin, wash quickly with soap and water, then with lemon juice or vinegar. If liquid gets in your eyes, wash with water for at least 10 minutes and seek medical attention immediately.

For information on the “SENCO Safety First Program,” contact your SENCO representative.

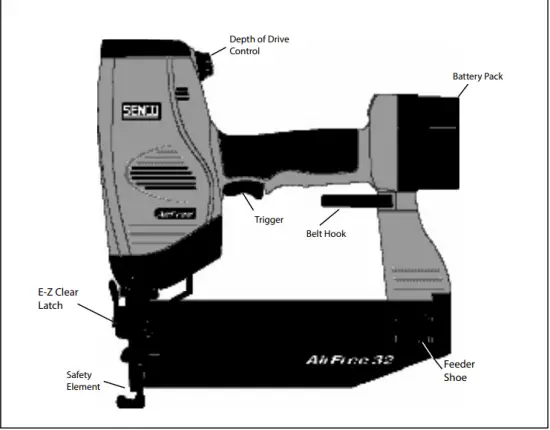

Functional DescriptionTool Operation

Read the section titled “Safety Warnings” before maintaining the tool.

For best results, charge a new battery before using it. (see “To Charge Battery” page 12).

Loading the Tool: Insert a strip of nails into the rear of the magazine. Use only genuine SENCO fasteners (see Technical Specifications). Do not load with safety elements or trigger depression. Pull feeder shoe back.

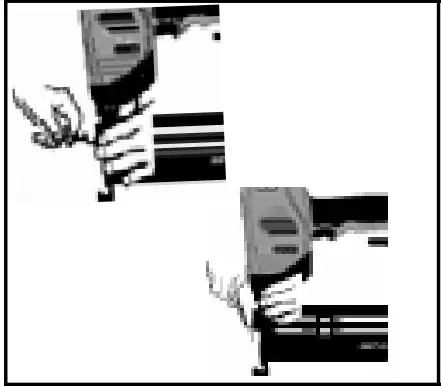

With a “Sequentially”operated trigger, nails can only be driven one way. (1) Position safety element against work surface and (2) pull trigger…“Trigger Fire“. A slight delay (milliseconds) will occur after the trigger is pulled before the fastener is driven. Note: Once the safety element is depressed against the work surface, the trigger must be pulled within 3 seconds or the tool will not operate (Time Out). If the tool does Time Out (3 seconds), the safety element and trigger must be released to be reset. Removing the safety element from the work surface or removing finger from trigger before the fastener is driven, will cancel the drive sequence.

Should a nail jam occur, remove battery.

Release the feeder shoe and slide it forward. Remove fasteners from the tool.

Release E-Z Clear latch and open door.Remove jammed fastener. Close door and latch.

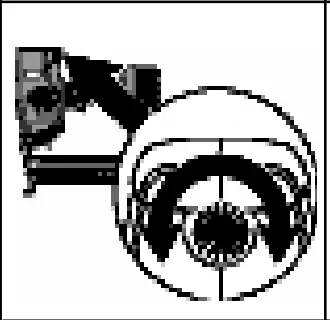

This tool is equipped with an electronic depth-of-drive dial. Turning the dial clockwise (more power) will countersink the fastener, turning the dial counter-clockwise (less power) will leave the fastener up or raised. Drive a fastener into a scrap piece of wood to test depth.

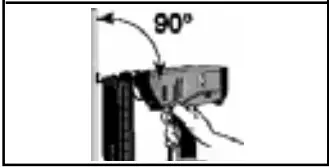

Whenever possible, hold the tool at a right angle to the work surface.

To Charge Battery

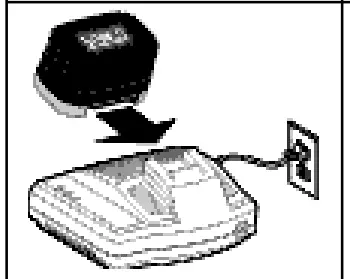

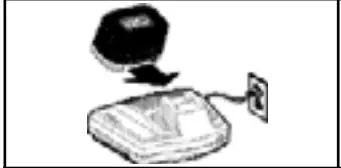

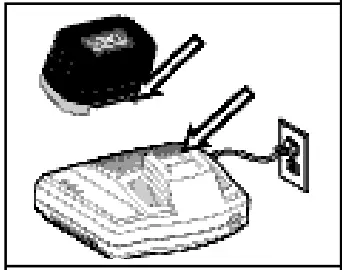

Place battery pack in charger. Align raised ribs on battery pack with groove in charger.

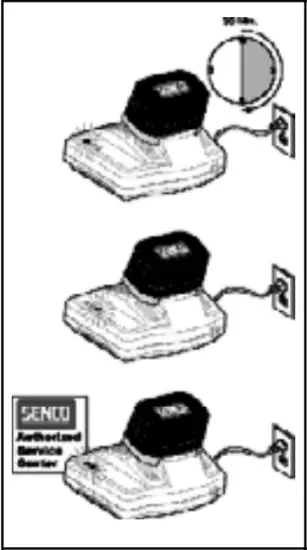

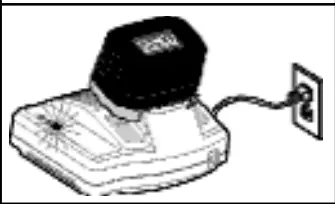

Press down on battery pack to be sure contacts on battery pack engage properly with contacts in charger. When properly connected, red light will turn on. Red light indicates fast charging mode. If the red light is flashing, this indicates battery pack is deeply discharged or hot.

If battery pack is hot, red light should become steady after battery pack is cooled down. If battery pack is deeply discharged, red light should become steady after voltage is increased, normally within 30 minutes. If after one hour red light is still flashing, this indicates a defective battery pack and should be replaced. Green light on indicates battery pack is fully charged or in slow charging mode to maintain battery pack charge. Yellow light on and red light flashing indicates defective battery pack. Return battery pack to your nearest SENCO Authorized Service Center for checking or replacing.

When your battery pack becomes fully charged, the red light will turn off and the green light will turn on.

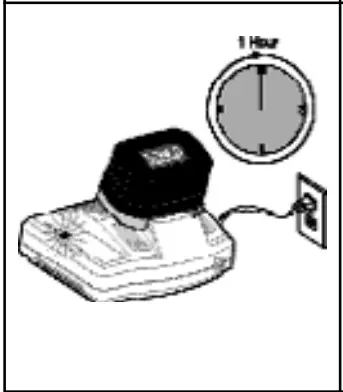

After normal usage, 1 hour of charge time is required to be fully charged. A minimum charge time of 1 to 1-1/2 hours is required to recharge a completely discharged battery pack.

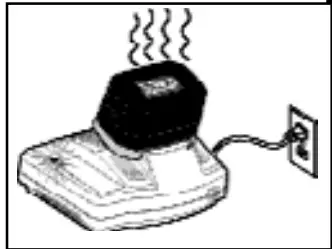

The battery pack will become slightly warm to the touch while charging. This is normal and does not indicate a problem.

Battery Disposal
To preserve natural resources, please recycle or dispose of properly. This product contains nickel-cadmium. Local state or federal laws may prohibit disposal of Nickel-Cadmium batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options. For more information on battery recycling call 1-8008BATTERY.

Maintenance

Read section titled “Safety Warnings” before maintaining tool.

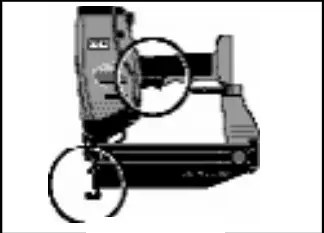

With battery disconnected, make daily inspection to assure free movement of safety element and trigger. Do not use tool if safety element or trigger sticks or binds.

Routine lubrication is not necessary. Do not oil.

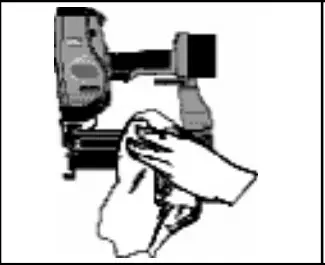

Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary-DO NOT SOAK. Caution: Such solutions may damage other tool parts.

WARNING
Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at 1-800-543-4596.
Accessories SENCO offers a full line of accessories for your SENCO tools, including:

• Battery
• Belt Hook
• Battery Charger
• Case
• Allen Wrenches
• Safety Glasses

For more information or a complete illustrated catalogue of SENCO ac- cessories, ask your representative for #MK336.

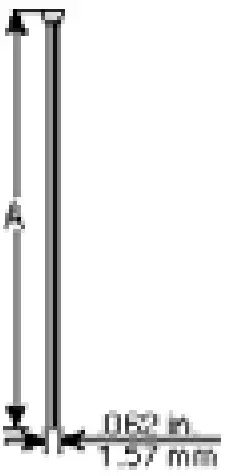

TECHNICAL SPECIFICATIONS

AirFree™ 32

AirFree™ 32

Troubleshooting

SENCO TOOL & PARTS WARRANTY
This tool has been designed and constructed using the highest standards of material and workmanship.
TOOL AND PARTS WARRANTY:
The length of this guarantee is one year from date of purchase by the original retail purchaser. During this period, SENCO Products, Inc., will repair or replace at Senco’s option, any original part or parts for the original retail purchaser. This will be done free of charge, provided the parts are determined defective in materials or workmanship upon examination by a SENCO Authorized Warranty Service Center (exception: rubber o-rings, seals and bits). Any replacement part provided will carry a warranty for the balance of the period of warranty applicable to the part it replaces. This warranty will be honored, only if: A) No evidence of abuse, or failure to follow recommended operational maintenance, or modification of the tool is present (read Operator Manual for use and maintenance instructions); B) When repair or replacement of parts or tools is necessary, the original retail purchaser returns the complete tool or part, with transportation prepaid, to the nearest SENCO Authorized Warranty Service Center, with purchase receipt or other positive proof that the part or tool is within the warranty period.
THIS WARRANTY IS THE ONLY WARRANTY ON THIS TOOL, AND ALL OTHER WARRANTIES, WHETHER ORAL WRITTEN, EXPRESS, OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED. BUYER’S OR USER’S REM-EDIES ARE SOLELY AND EXCLUSIVELY AS STATED ABOVE. SENCO PRODUCTS, INC. SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL CONSEQUENTIAL, INDIRECT, OR SPECIAL DAMAGES. IN NO EVENT, WHETHER AS A RESULT OF A BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, SHALL SENCO’S LIABILITY EXCEED THE PRICE OF THE TOOL WHICH HAS GIVEN RISE TOTHE CLAIM OR LIABILITY. ANY LIABILITY CONNECTED WITH THE USE OF THIS TOOL SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD SPECIFIED ABOVE.
Replacement of Tool Due to Natural Disaster SENCO will also replace any tool destroyed by an Act of God such as flood, earthquake, hurricane or other disaster resulting only from the forces of nature. Such a claim will be honored provided that such original retail purchaser had previously submitted a completed warranty registration card, and then submits proof of ownership and an acceptable statement describing such Act of God documented by an insurance carrier, police department, or other official govern-mental source.To obtain instructions for filing a claim call 1-800-543-4596.

SENCO PRODUCTS, INC.
CINCINNATI OHIO 45244-1611 USA
