WARNING: Please read the instructions and warnings for this tool carefully before use. Failure to do so could lead to serious injury.
KYOCERA SENCO Netherlands B.V. Pascallaan 88 8218 NJ Lelystad,
The Netherlands +31 320 295 575 senco.com EMEA: Senco.eu

EMPLOYER’S RESPONSIBILITIES

It is the employer’s responsibility to assure this manual is read and understood by all personnel assigned to use the tool. Keep this manual available for future reference. Risk assessment and implementation of appropriate controls for all hazards are essential.

WORKPLACE HAZARDS

• The following applies: Slips, trips, and falls are major causes of workplace injury. Be aware of slippery surfaces caused by use of the tool and also of trip hazards caused by the airline hose.
• Proceed with additional care in unfamiliar surroundings. Hidden hazards may exist, such as electricity or other utility lines.
• This tool is not intended for use in potentially explosive atmospheres and is not insulated from coming into contact with electric power.
• Make sure there are no electrical cables, gas pipes, etc. that could cause a hazard if damaged by use of the tool.

DUST AND EXHAUST HAZARDS If the tool is used in an area where there is static dust, it may disturb the dust and cause a hazard.

• The following applies: Risk assessment should include dust created by the use of the tool and the potential for disturbing existing dust.
• Direct the exhaust so as to minimize the disturbance of dust in a dust-filled environment.
•  Where dust or exhaust hazards are created, the priority shall be to control them at the point of emission.

GENERAL DESCRIPTION

• Hand-held power fastener driving tool consisting of a pneumatic power unit, guide body and magazine in which energy is applied in a linear movement to a loaded fastener for the purpose of driving the fastener into defined materials unless using a specialized fastener intended for use in concrete or steel.
• Any other use is forbidden.

WARNINGS
Tools with symbols shall only be used for production applications. Any other use is forbidden.

• Do not rest your finger on the trigger when picking up the tool, moving between operating areas and positions or walking, as resting finger on trigger can lead to inadvertent operation. For tools with selective actuation, always check the tool before use to ascertain the correct mode is selected.
• This tool has either selective actuation for contact actuation or continuous contact actuation by actuation mode selectors or is a contact actuation or continuous actuation contact tool and has been marked with the symbol above. Its intended uses are for production applications such as pallets, furniture, manufactured housing, upholstery and sheathing.
• If using this tool in selective actuation mode, always ensure it is in the correct actuation setting.
• Do not use this tool in contact actuation for applications such as closing boxes or crates and fitting transportation safety systems on trailers and lorries.
• Be careful when changing from one driving location to another.

SAFETY WARNINGS

• Read and understand these warnings to prevent injuries to yourself and bystanders. Refer to tool use, maintenance, and troubleshooting sections for additional information.
• Failure to follow warnings could result in serious injury.
• Do not discard.
• Operators and others in the work area shall wear impact-resistant eye protection with side shields. Failure to do so can cause serious injury. CE equivalent to EN166
•  Always wear other personal protective equipment such as hearing, gloves, and a hard hat.
• Only wear gloves that provide an adequate feel and safe control of triggers and adjusting devices.
• Operators and others in the work area shall wear hearing protection.
• Unprotected exposure to high noise levels can cause permanent, disabling, hearing loss and other problems such as tinnitus (ringing, buzzing, whistling or humming in the
  ears).
• Appropriate controls to reduce the risk may include actions such as damping materials to prevent workpieces from “ringing”.
• Use appropriate hearing protection.
• Operate and maintain the tool as recommended in these instructions, to prevent an unnecessary increase in noise levels.
• If the tool has a silencer, always ensure it is in place and in good working order when the tool is being operated.
• Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms.
• Wear warm clothing when working in cold conditions, keep your hands warm and dry.
• If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, seek medical advice from a qualified occupational health professional regarding overall activities.
• Operate and maintain the tool as recommended in these instructions, to prevent an unnecessary increase in vibration levels.
• Hold the tool with a light, but safe, grip because the risk from vibration is generally greater when the grip force is higher.
• Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tools while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Only use the correct energy supply as directed
• Never use oxygen, carbon dioxide, or any other bottled gas as a power source for this tool; the tool will explode and cause serious injury.
• Using oxygen or combustible gases for pneumatic tools creates a fire or explosion hazard.
• Always remove your finger from the trigger when not driving fasteners. Never carry the tool with a finger on or under the trigger. The tool will eject a fastener if the workpiece contact is bumped.

• The tool’s resting position is on its side disconnected from the air.
•  Resting position includes removing finger from the trigger and positioning tool so that the workpiece contact is not actuated.
• Always assume the tool contains fasteners. Keep the tool pointed away from yourself and others. No horseplay. Respect the tool as a working implement.
• Keep hands and legs away from the firing direction.
• Only skilled operators should use fastener driving tools.
• Drive fasteners into work surface only; never into materials too hard to penetrate.

• Addition downforce is required for steel and concrete tools.
• During operation, debris from the workpiece & collation system may be discharged.
• Ensure the tool is always safely engaged on the workpiece and cannot slip.
• Tools equipped with “Contact Actuation” shall not be used:
  ‡ If a change of driving locations is effected via stairs, ladders or scaffolding.
  ‡ For closing boxes or crates.
  ‡ For fitting transportation safety systems.
  ‡ Moving platforms
•  Read and understand the risk associated with selective actuation in the “Tool Use” Section.
• Do not force tool. Let the tool do the work. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
• Do not overreach
• Keep proper footing and balance at all times.

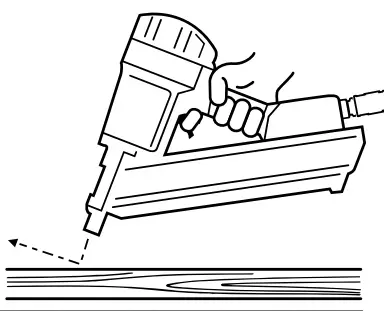

• Do not drive fasteners on top of other fasteners or with the tool at too steep of an angle.
• The fastener could deflect and cause injury.

• When using the tool, care should be taken due to the possibility of tool recoil after a fastener is driven. If workpiece contact is unintentionally allowed to re-contact the work surface following a recoil, an unwanted fastener will be driven.

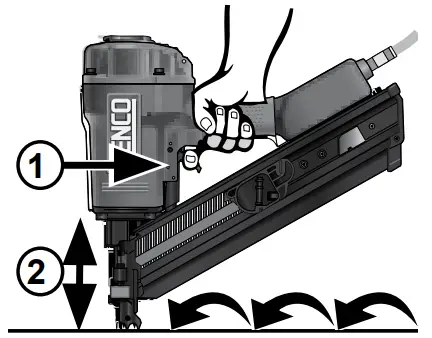

  Therefore, allow the tool to recoil completely off the work surface after a fastener is driven to avoid this condition. Do not push the workpiece contact on work surface until a second fastener is desired.
• Hold the tool correctly with a firm grasp and be prepared to counteract and manage normal or sudden movements such as recoil. Grip should be safe but appropriate to
  reduce vibration hazards which can cause serious injury.
• Maintain a balanced body position and secure footing.
• Be careful when using pneumatic tools as the tool becomes cold. This can affect grip and control.
• Do not drive fasteners close to the edge of the work surface.
• The fastener could deflect and cause injury.
• Keep bystanders away.
• Clearly mark off your operting area.
• Disconnect tool from the air before doing tool maintenance, clearing a jammed fastener, making adjustments, leaving work area, moving tool to another location, or handing the tool to another person.

• The tool may eject a fastener when connected to air supply; therefore, ① remove all fasteners from the tool before attaching air ose.
• Be careful when handling fasteners when loading/unloading. Fasteners have sharp points.
• Never use the tool if workpiece contact, trigger, or springs have become inoperable, missing or damaged. Do not tamper with or remove workpiece contact, trigger, or springs.
• Modifications may reduce the effectiveness of safety measures and increase the risk to operator/bystanders.
• Do not use the tool if the tool has been damaged.
• Make sure all screws and caps are securely tightened at all times. Make daily inspections for free movement of trigger and workpiece contact. Never use the tool if parts
  are missing, worn or damaged.
• Always use a second handle (if supplied)
• Use only parts, fasteners, lubricants, and accessories recommended or sold by SENCO. Do not modify tool without authorization from SENCO.
• Use only clean, dry, regulated compressed air at the recommended pressure.
• Always shut off the air supply and disconnect the tool when not in use.
• Tools shall not be connected to pressure which potentially exceeds maximum operating pressure by 10%.
• Do not exceed the maximum operating pressure Ps max.
• Tools marked with an inverted triangle may not be used unless fitted with an effective workpiece contact.
• Tools without workpiece contact can be fired unintentionally, causing injury.
• Stands for mounting tools to support shall be designed and constructed by the stand manufacturer in such a way that the tool can be safely affixed for the intended use.
•  The tool and air supply hose must have a connecting nipple such that all pressure is removed from the tool when the coupling joint is disconnected.

• Compressed air can cause severe injury.
• Always disconnect the tool from the compressed air supply before changing accessories, making adjustments and/or repairs or when moving away from an operating area to a different area.
• Never direct compressed air at yourself or anyone else
• Whipping hose can cause severe injury – always check for the damaged or loose hose.
• Do not load fasteners with trigger or workpiece contact depressed.
• Do not use tools without a danger label on the tool. If the label is missing, damaged, or unreadable, contact your SENCO representative to obtain a new label.

• Never use a tool that leaks air or needs repair.
• Do not use if the tool is damaged.
• Never carry or drag a pneumatic tool by its hose.
• Do not perform any “emergency repairs” without proper tools and equipment.
• Always check the tool before use for broken, disconnected, loose, or worn parts.
  Written approval from the tool manufacturer must be obtained prior to making any modifications to the tool.

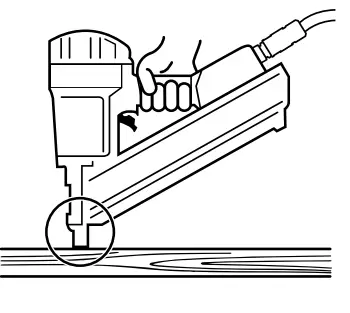

• Keep hands and other body parts away from the area shown in the circle to avoid possible injury during the operation.

• Keep fingers away from the trigger when not operating the tool and when moving from one operating position to another.

TOOL USE

Image Notes

Matrix Picture no.	Description	Image Notes
Al	Rear Load	Do not load with trigger depressed 0 Connect air supply 0 Insert Strip of nails • use only genuine SENCO fasteners
A2	Side Load	Do not load with trigger depressed 0 Connect air supply 0 Insert Strip of nails • use only genuine SENCO fasteners
A3		Depress latch, Slide rail open Place strip of fasteners into magazine with points facing direction shown Do not load with trigger depressed then points 1 (depress Latch) and 2 (place strips)
	Bottom Load
B1	Rear-Load	0 Release the feeder shoe and slide it forward. 0 Remove fasteners from the tool
B2	Side Load	Push Latch and slide rail open, remove fasteners
B3	Bottom Load	Push Latch and slide rail open, remove fasteners
Matrix Picture no.	Description	Image Notes
Cl	Adjustable	The deflector can be rotated to change the direction of the exhaust air
C2	Rear. Adjustable	The deflector can be rotated to change the direction of the exhaust air

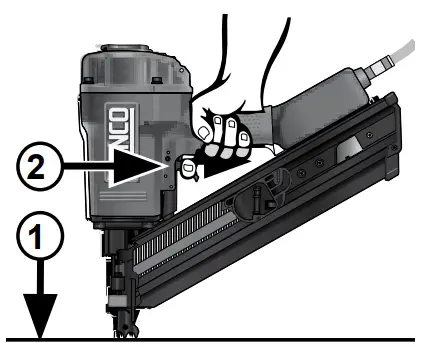

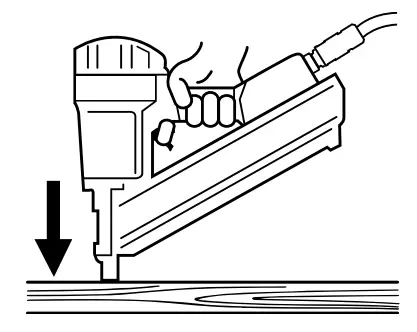

D1	, Single	C) Press the workpiece contact (safety element) against the work surface. 0 Pull the trigger and the fastener is driven.
D2	Bottom	0 Pull trigger. 0 Depress workpiece contact element against work surface and drive a fastener. Each time you push the workpiece contact (safety element) against the work surface, a fastener is driven.
Fl	Gate	Release E•Z Clear latch and open door.

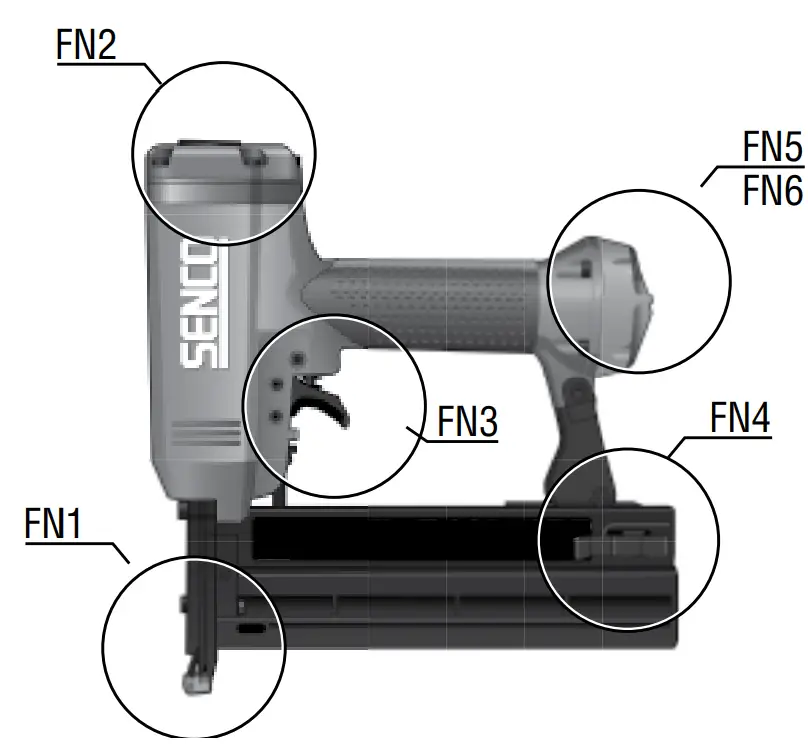

TOOL ELEMENTS

MAINTENANCE

Warning

• Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at: +31 320 295 575.
• Read the section titled “Safety Warnings” before maintaining the tool.
• Only use spare parts specified by the manufacturer or authorized representative.
• All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.
• Check monthly
• With the tool disconnected, make a daily inspection to assure free movement of workpiece contact and trigger. Do not use the tool if workpiece contact or trigger sticks or binds.

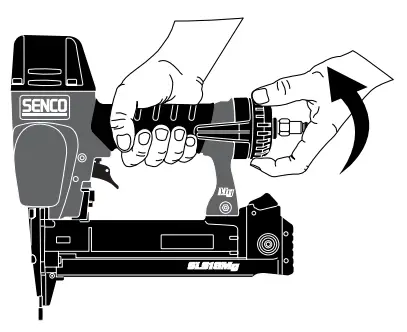

• Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet twice daily (depending on the frequency of tool use). Other oils may damage O-rings and other tool parts.
• Some Senco tools are Oil-Free and DO NOT require oil, Check the label.
• Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary.
• Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary.
• Do Not Soak.
• Caution: Such solutions may damage O­rings and other y tool parts.
  Dispose of cleaning materials properly.

TROUBLESHOOTING

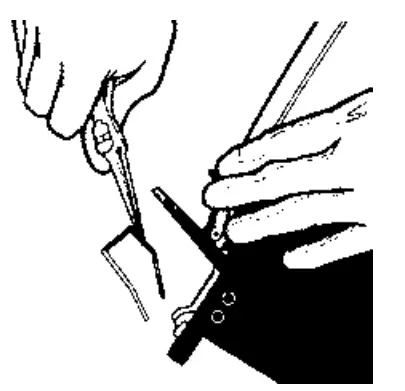

Should Staple Jam Occur: Disconnect Air Supply Remove Fasteners Clear the Jam Follow Loading Procedure

1. SYMPTOM
   Air leak near the top of the tool. / Sluggish operation
   SOLUTION
   Verify air supply / tighten screws or install Repair Kit ­ See Parts Manual
2. SYMPTOM
   Air leak near the bottom of tool / Poor return.
   SOLUTION
   Clean tool / tighten screws or install Repair Kit See Parts Manual
3. SYMPTOM
   Other problems.
   SOLUTION
   Contact SENCO.
