Einhell TE-CN 18 Li-Solo Cordless Nailer

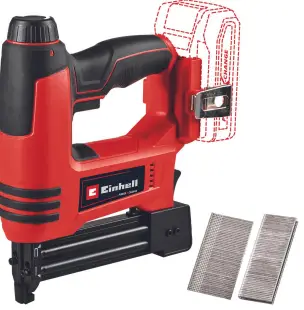

Einhell TE-CN 18 Li-Solo Cordless Nailer-fig1

The TE-CN 18 Li – Solo cordless nailer is a member of the Power X-Change family, so it can be used with any rechargeable battery from the system series. The robust gear unit allows up to 20 shots per minute and there is a depth setting facility for variable penetration depth. The slimline stapler head allows close-to-the-edge work. The magazine has a fill level indicator. Safe operation is ensured by the trigger mechanism on the stapler head, while the generous soft grip surfaces provide a comfortable and secure grip. The product is supplied complete with a practical belt clip for safe storage, plus 300 nails (32 mm) and 300 staples (19 mm). The rechargeable battery and charger from the Power X-Change series are available separately.

Features & Benefits

  • A member of the Power X-Change family
  • Robust gearing allows up to 20 shots per minute
  • Slimline stapler head allows stapling close to the edge
  • Depth setting facility for variable penetration depth
  • Magazine with level indicator for an at-a-glance overview
  • Trigger catch to prevent unintentional stapling/nailing
  • Ergonomic soft grip surfaces for safe working
  • Incl. practical belt clip for safe storage
  • Supplied complete with 300 nails (32 mm) and 300 staples (19 mm)
  • The battery and charger are available separately
  • Magnet in the magazine keeps the nails/staples in place better
  • Incl. hex key for sorting out jammed staples
  • Easy to open magazine at the touch of a button
  • Makes effortless work of fastening copper sheeting up to 0.5 mm
  • 2-in-1 stapler and nailer combination tool

Technical Data

  • Voltage:18 V
  • Shots per minute: 20
  • staples length (min. – max. length): 16 – 22 mm
  • Staples width:5.7 mm
  • nails length (min. – max. length):15 – 32 mm
  • Nail thickness:1 mm

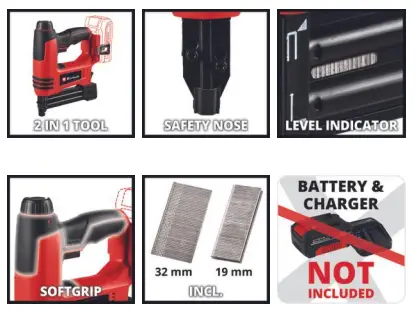

    Einhell TE-CN 18 Li-Solo Cordless Nailer-fig2

Logistic Data

  • Product weight (kg):2.07
  • Gross weight (kg): 2.73
  • Dimensions single packaging:248 x 91 x 295 mm
  • Pieces per export carton:4 Pieces
  • Gross weight of export carton:12.5 kg
  • Dimensions export carton:375 x 310 x 275 mm
  • Container quantities (20″/40″/40″HC):3500 | 7256 | 8508

    Einhell TE-CN 18 Li-Solo Cordless Nailer-fig3

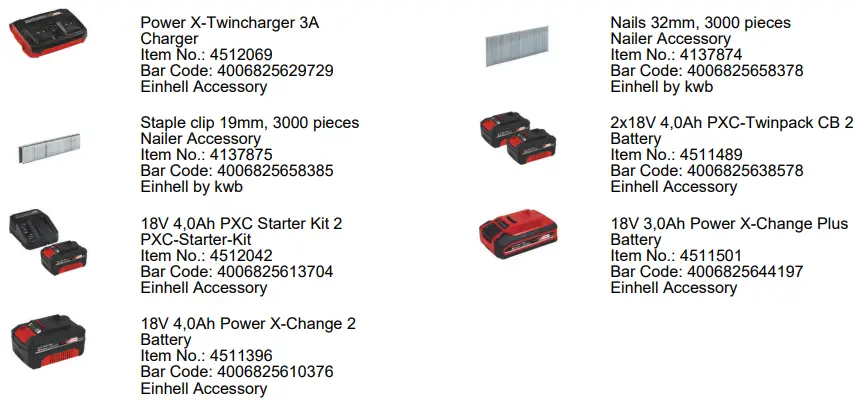

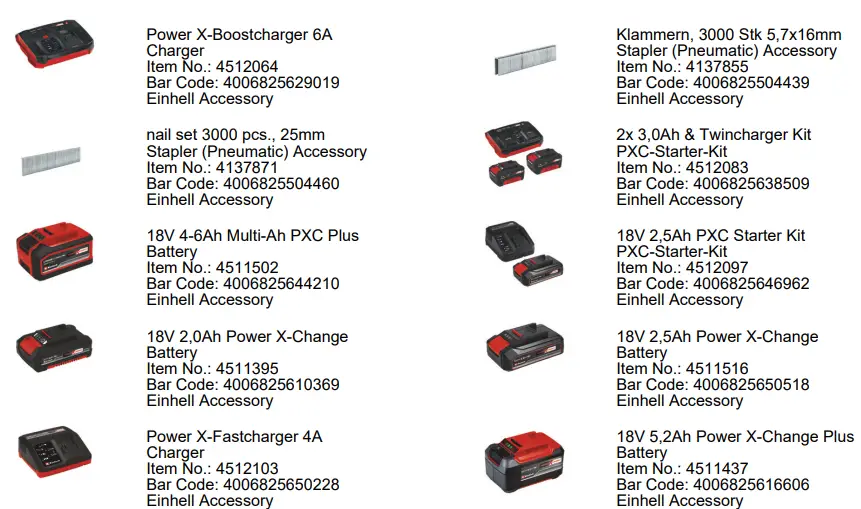

Available as special accessories

Einhell TE-CN 18 Li-Solo Cordless Nailer-fig4Einhell TE-CN 18 Li-Solo Cordless Nailer-fig5

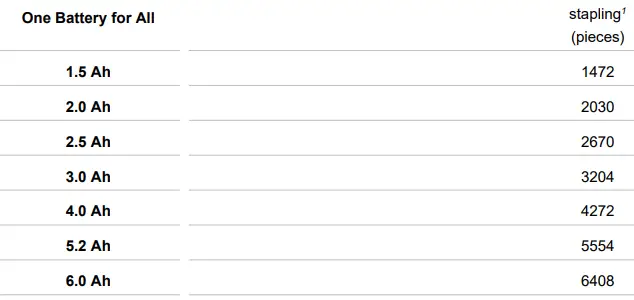

Battery-Running-Times

Einhell TE-CN 18 Li-Solo Cordless Nailer-fig6

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
