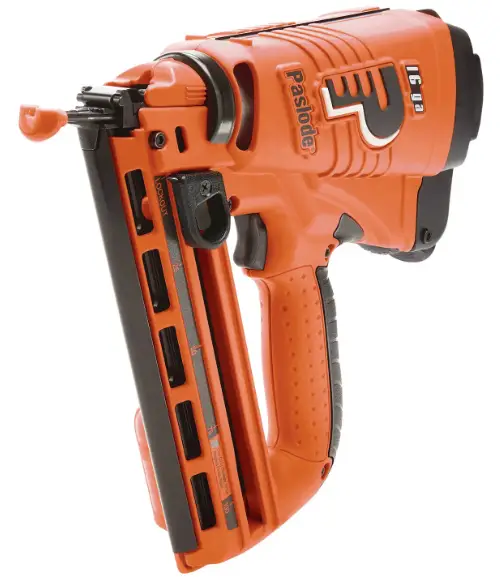

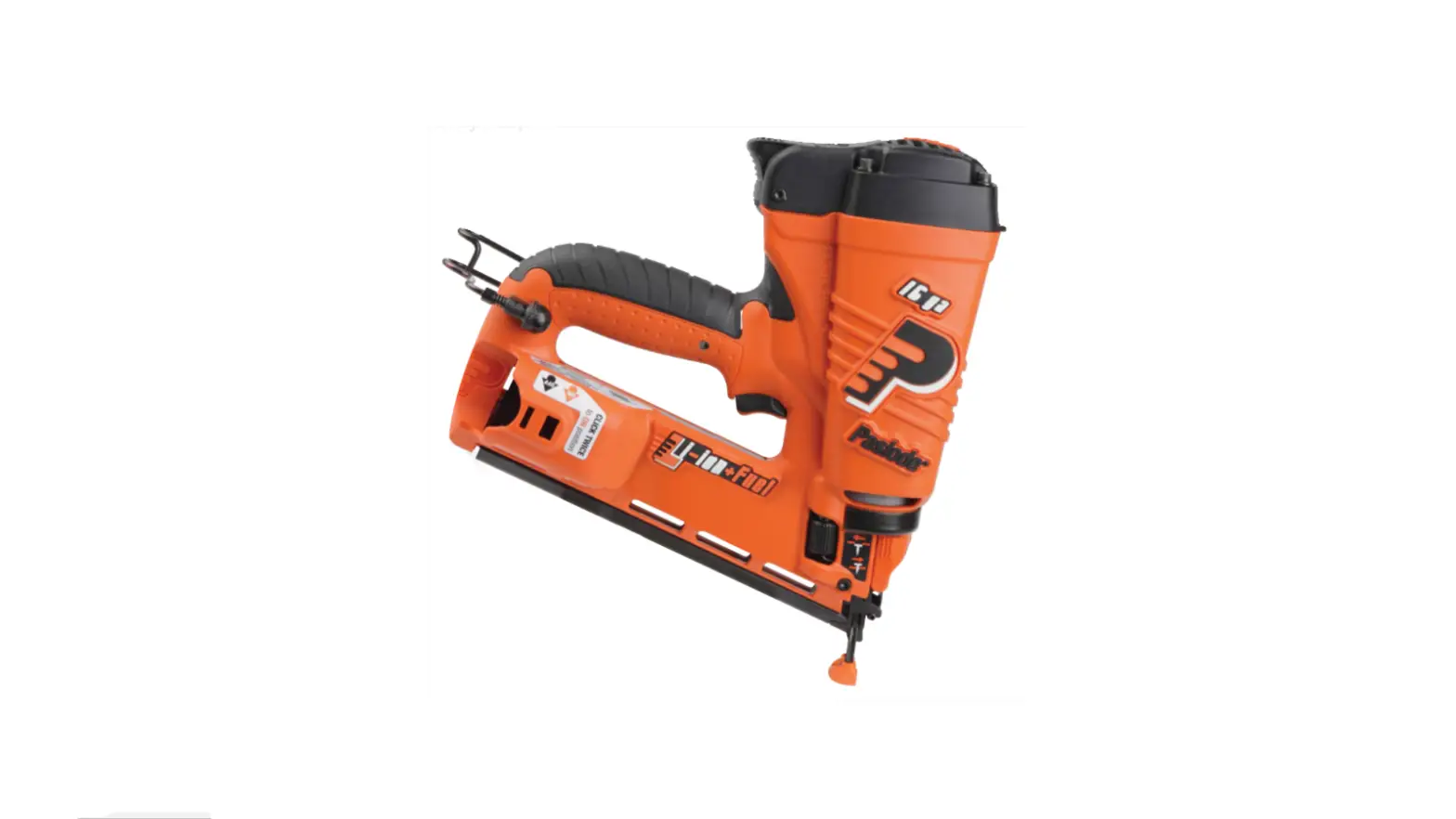

Paslode IM250ALi 16 ga. Lithium-ion Cordless Angled Finish Nailer
Battery
Drives up to 12,000 nails per charge
- Charge the Battery before using the tool.
- ON/OFF SWITCH. The battery has 2 secure lock positions. Push in to engage battery.
- Green indicates charged battery.
- Red indicates the battery needs recharging.
Nails
Use Paslode 16 Ga. Angled Finish Nails
- ANGLED NAILS ONLY
- Load nail strip into the rear of the magazine.
- Depress Follower Lever
- Pull Follower Back
- Release Follower behind Nail Strip
Trim Fuel
Part #816007 Drives up to 1,200 Nails
- Use Paslode #816007 Trim Fuel
- Check Date on bottom of Fuel
- Open Fuel Door by Pushing the Door Forward, then Lifting it Back
- Lift Fuel Block Assembly
WARNING
Always wear EYE and EAR protection whenever working with or in the vacinity of a Cordless tool in operation. - Insert Fuel Cartridge
- Center Fuel Stem on
Top of Cartridge
- Ensure Fuel Door Brackets
Drop into the Fuel Chamber
- Press Fuel Door in With Thumb
Drive Nails
- Push Tool Down on it’s No Mar Probe
- Pull the Trigger
Adjusting the Depth of Drive
- Rotate the Thumbwheel to adjust the Depth of the Drive
Clearing Nail Jam
ALWAYS REMOVE THE BATTERY, FUEL, AND NAILS BEFORE CLEARING A JAM
- Pull Quick Clear Latch Forward to Release
- Open Front Guide to Release Jam
- Remove Jammed Nail
- Return Driver Blade to Top Position if Needed
- Close Nose Plate
- Only if needed to Clear Jam – Remove No Mar Probe
- Removing Probe Allows Greater Access to Remove a Jammed Nail
- Refit No Mar Probe
- Align Probe Leg with Hole in Depth of Drive Adjuster
Before you return this tool, please call this number for all your questions.
USA
1-800-222-6990
7:00 AM-4:45 PM CST
