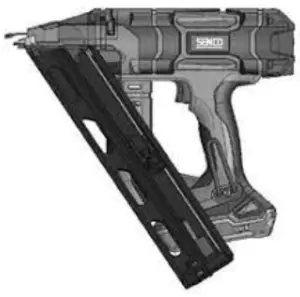

FUSION Cordless Finish Nailer F-15XP Gen. 2 Instruction Manual
DANGER:
The Fusion tool is charged with compressed air in a sealed chamber. Prior to any service or repair, release the charge of pressurized air. The pressurized air must be released prior to service. Major components such as the piston/driver assembly, gearbox, piston stop and guide body are all part of the drive assembly.
Deliberate tampering with the drive assembly may result in the release of the driver. Any repair or upgrade requiring access to the pressure chamber may be handled by an authorized Senco dealer or service center.

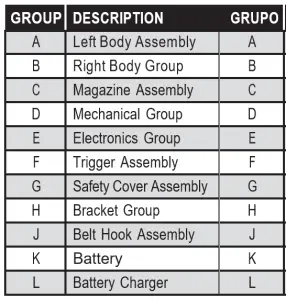

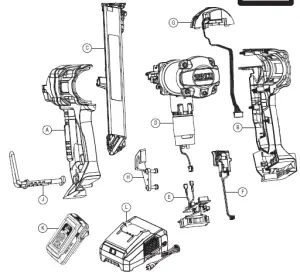

General Assembly
Left Body Half
GROUP B Right Body Group

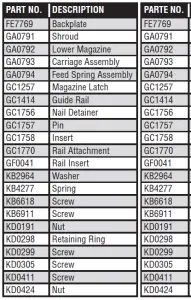

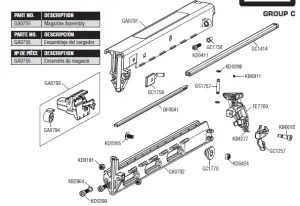

Magazine Assembly
Mechanical Group

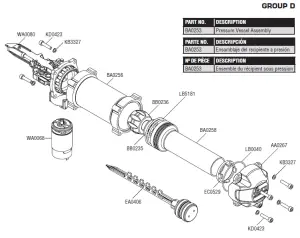

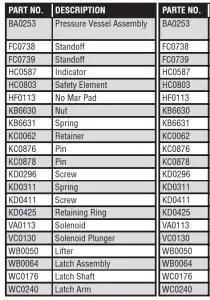

Pressure Vessel Assembly

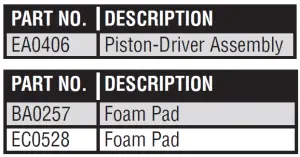

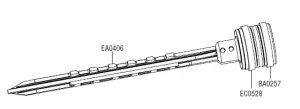

PISTON-DRIVER ASSEMBLY

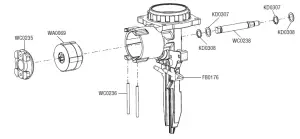

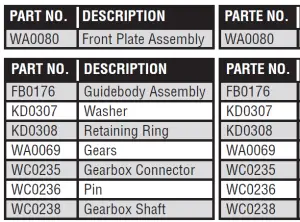

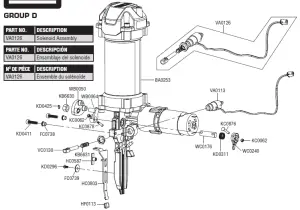

GROUP D FRONT PLATE ASSEMBLY

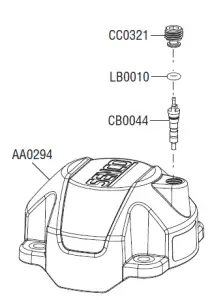

Cap ASSEMBLY
| PART NO. | DESCRIPTION |
| AA0294 | Cap |
| CB0044 | Valve |
| CC0321 | Seal |
| LB0010 | O-Ring |

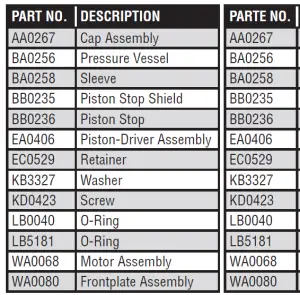

| PART NO. | DESCRIPTION |
| AA0267 | Cap Assembly |

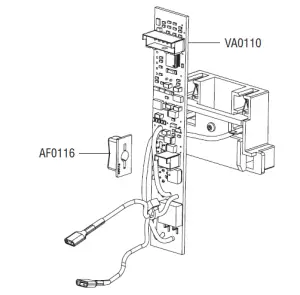

GROUP E ELECTRONICS GROUP
| PART NO. | DESCRIPTION |
| AF0116 | Switch |
| VA0110 | PCB Assembly |

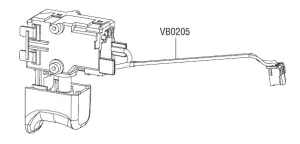

GROUP F Trigger Assembly
| PART NO. | DESCRIPTION |
| VB0205 | Trigger Assembly |

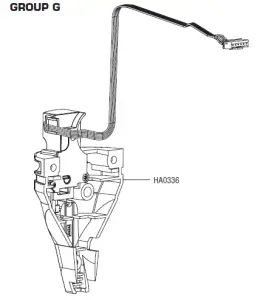

Safety Cover Assembly
| PART NO. | DESCRIPTION |
| HA0336 | Safety Cover Assembly |

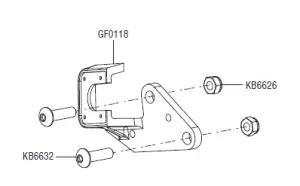

GROUP H Bracket Group
| PART NO. | DESCRIPTION |
| GF0118 | Bracket |
| KB6626 | Locknut |
| KB6632 | Screw |

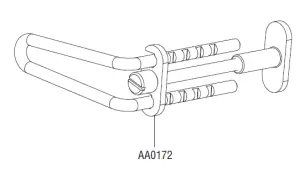

Belt Hook Assembly
| PART NO. | DESCRIPTION |
| AA0172 | Belt Hook Assembly |
GROUP K BATTERY
| PART NO. | DESCRIPTION |
| VB0155 | Battery |

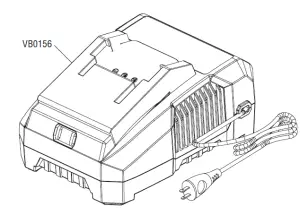

GROUP L BATTERY CHARGER
| PART NO. | DESCRIPTION |
| VB0156 | Battery Charger |
